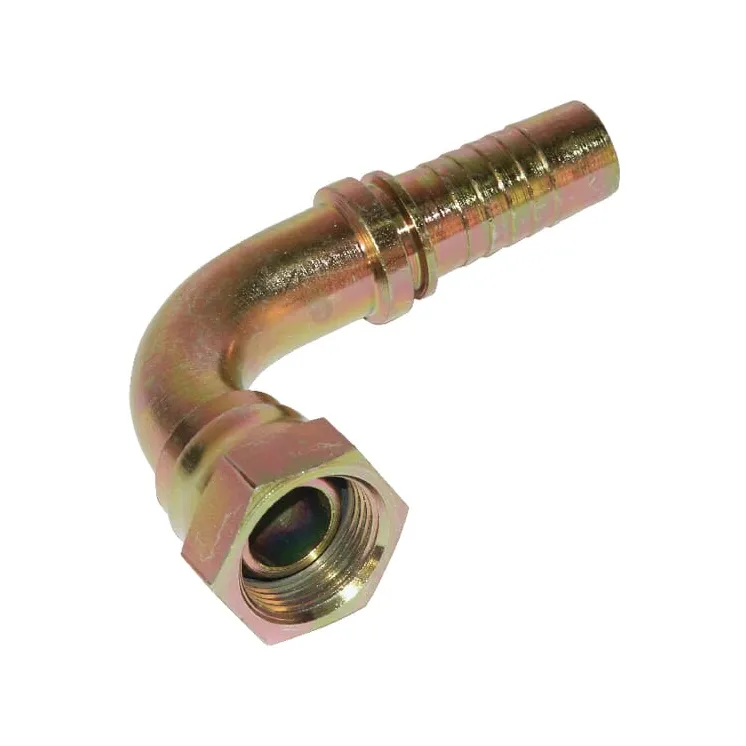

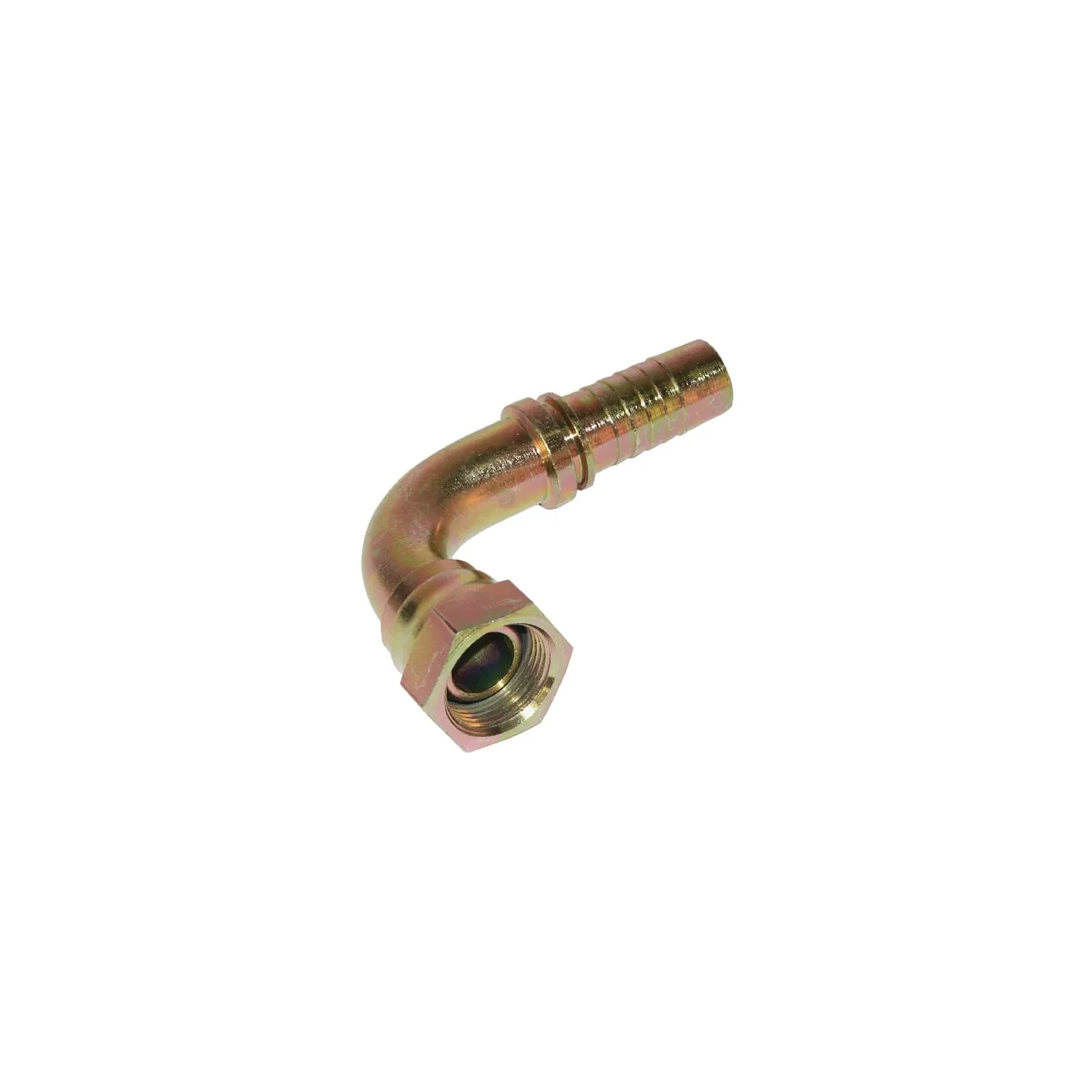

Ievietojiet DN16-3/4 BSP-90º PF161290

Name: Ievietojiet DN16-3/4 BSP-90º PF161290
Brand: Alfagomma
SKU: PF161290
Price: 9.7 EUR
Availability: InStock

Apmaksas iespējas

9,70 €

AR PVN

4-5 Darba dienas

Ievietojiet DN16-3/4 BSP-90º PF161290 Alfagomma

IR NOLIKTAVĀ

ID: 88916

Apraksts

Part number	PF161290
EAN	8716106786428
Unit	Each
Product details	O-ring seal DKOR
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 length	48 mm
Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Connection no 1 wrench size	32.0 mm
ISO standard	228
Material	Steel
Original number equivalent	H1220893-101200
Shape	Elbow - 2 connection sides
