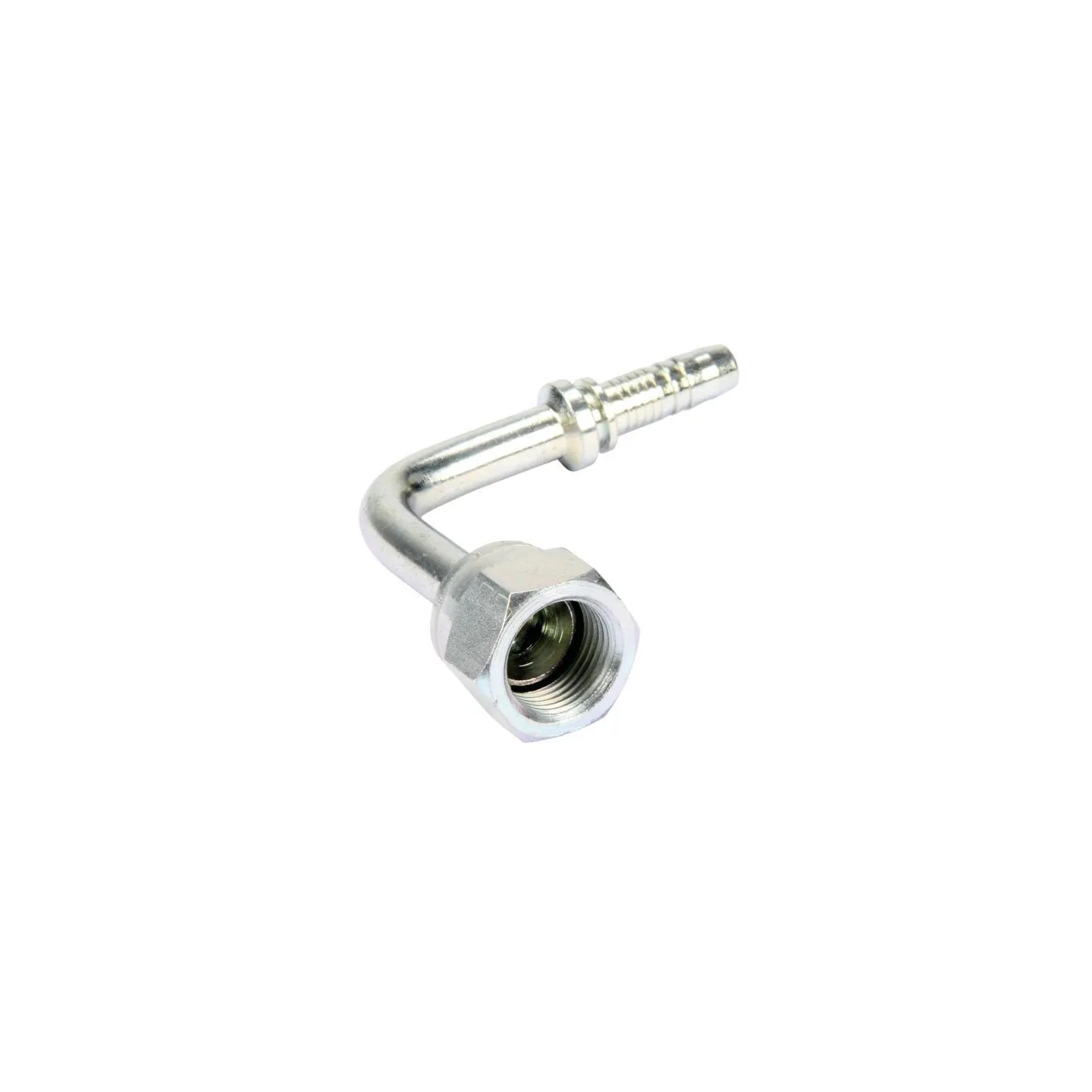

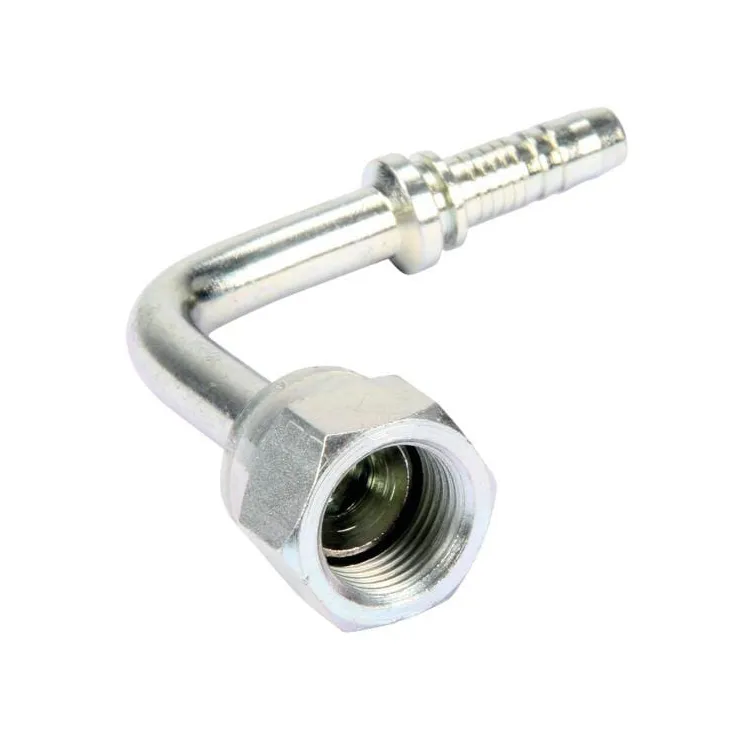

Ievietojiet DN06-1/2-UNF-90° PA6890L

Name: Ievietojiet DN06-1/2-UNF-90° PA6890L
Brand: Alfagomma
SKU: PA6890L
Price: 7.49 EUR
Availability: InStock

Apmaksas iespējas

7,49 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-1/2-UNF-90° PA6890L Alfagomma

IR NOLIKTAVĀ

ID: 88920

Apraksts

Part number	PA6890L
EAN
Unit	Each
Pros	Possible to install hoses on top of each other
Product details	Long model (size D) Cone, metal on metal seal Flared fittings
Benefits	Hoses can be installed over one another
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	45 mm
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, length	45 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	30 mm
F1Connection no 1 thread diameter	1/2 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	17.0 mm
Material	Steel
Original number equivalent	H1222591-04050L
Shape	Elbow - 2 connection sides
