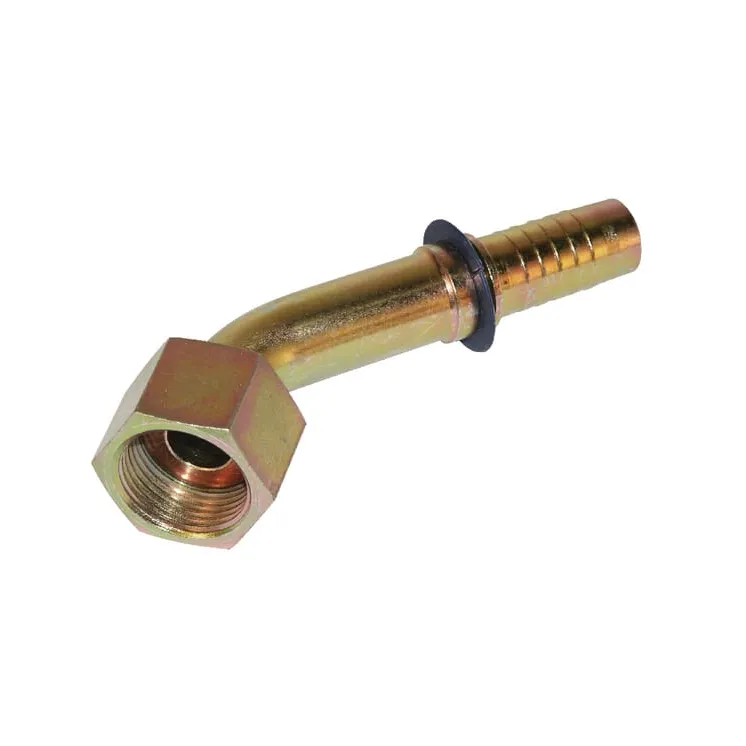

Ievietot DN16-13/16 ORFS-45° PAV161945 B040S2501014

Name: Ievietot DN16-13/16 ORFS-45° PAV161945 B040S2501014
Brand: Alfagomma
SKU: PAV161945
Price: 17.01 EUR
Availability: InStock

Apmaksas iespējas

17,01 €

AR PVN

4-5 Darba dienas

Ievietot DN16-13/16 ORFS-45° PAV161945 Alfagomma B040S2501014

IR NOLIKTAVĀ

ID: 88923

Apraksts

Part number	PAV161945
EAN
Unit	Each
Product details	O-ring seal
Surface treatment	Zinc-plated White passivated
Angle	45 °
DConnection 2, centre to end distance	21 mm
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	63.1 mm
F1Connection no 1 thread diameter	1-3/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	ORFS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	36.0 mm
Material	Steel
Original number equivalent	H1222443-10120M
Shape	Elbow - 2 connection sides
