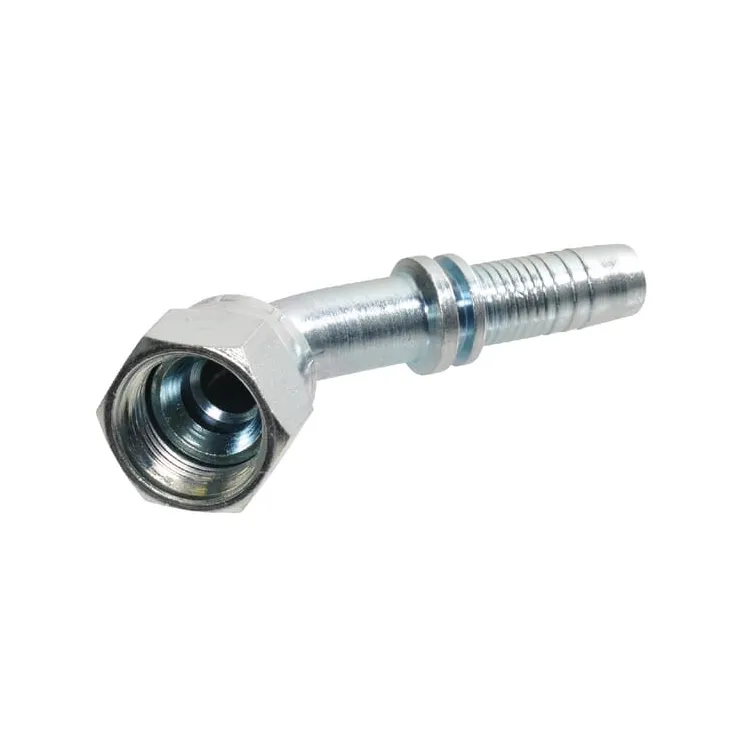

Ievietojiet DN05-7/16-UNF-45° PA5745

Name: Ievietojiet DN05-7/16-UNF-45° PA5745
Brand: Alfagomma
SKU: PA5745
Price: 4.48 EUR
Availability: InStock

Apmaksas iespējas

4,48 €

AR PVN

4-5 Darba dienas

Ievietojiet DN05-7/16-UNF-45° PA5745 Alfagomma

IR NOLIKTAVĀ

ID: 88932

Apraksts

Part number	PA5745
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	10 mm
Connection 2, diameter	3/16 Inch
Connection 2, diameter	5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	37.5 mm
Connection no 1 diameter	7/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	16.0 mm
Material	Steel
Original number equivalent	H1222541-03040M
Shape	Elbow - 2 connection sides
