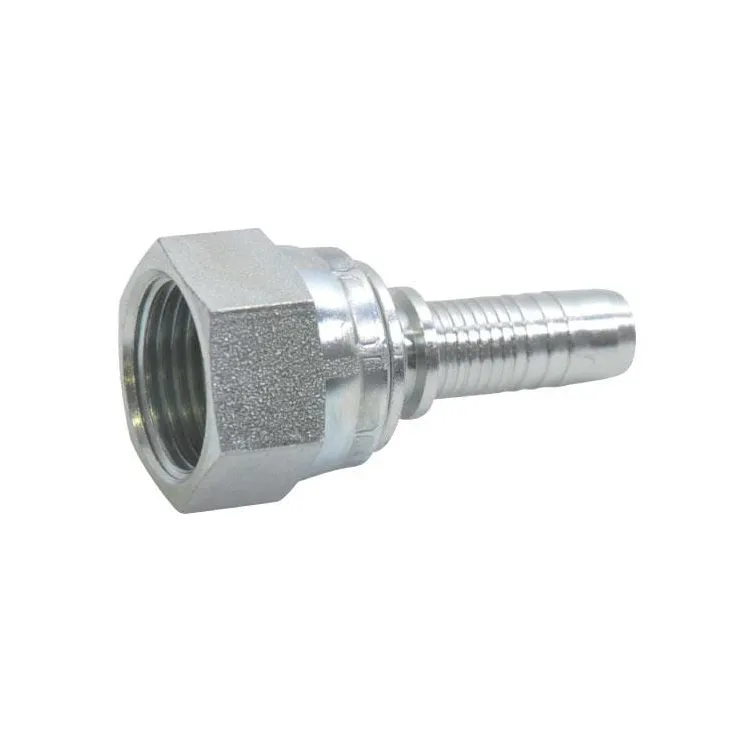

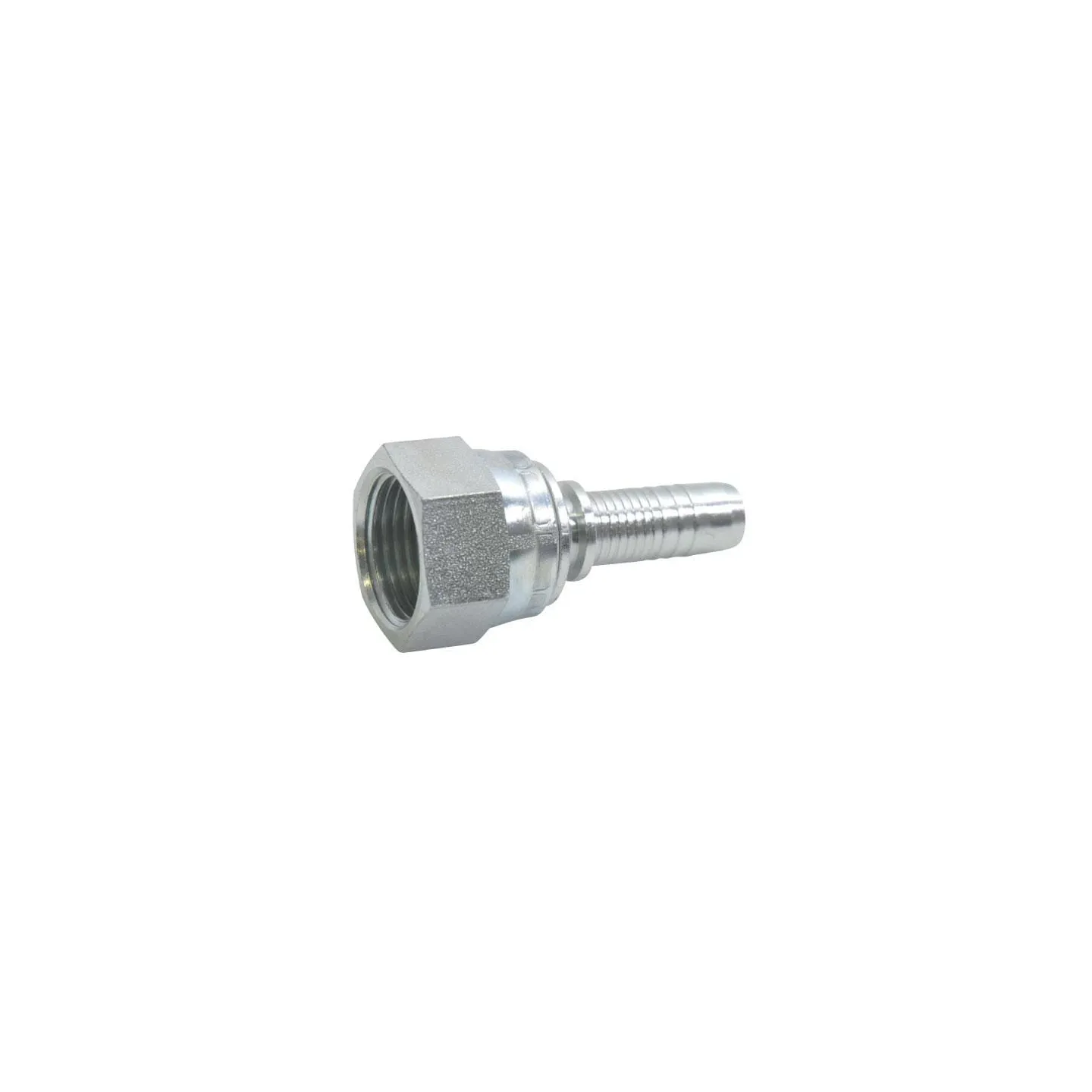

Ievietojiet DN20-7/8 UNF PA2014

Name: Ievietojiet DN20-7/8 UNF PA2014
Brand: Alfagomma
SKU: PA2014
Price: 7.42 EUR
Availability: InStock

Apmaksas iespējas

7,42 €

AR PVN

4-5 Darba dienas

Ievietojiet DN20-7/8 UNF PA2014 Alfagomma

IR NOLIKTAVĀ

ID: 88955

Apraksts

Part number	PA2014
EAN
Unit	Each
Product details	Cone, metal on metal seal Flared fittings
Long description	Application range: Flanged screw fitting Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request
Connection no 1 type	Swivel nut Cone
Surface treatment	Zinc-plated White passivated
Cone angle	37 °
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 length	20.1 mm
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	27.0 mm
Material	Steel
Shape	Straight - 2 connection sides
