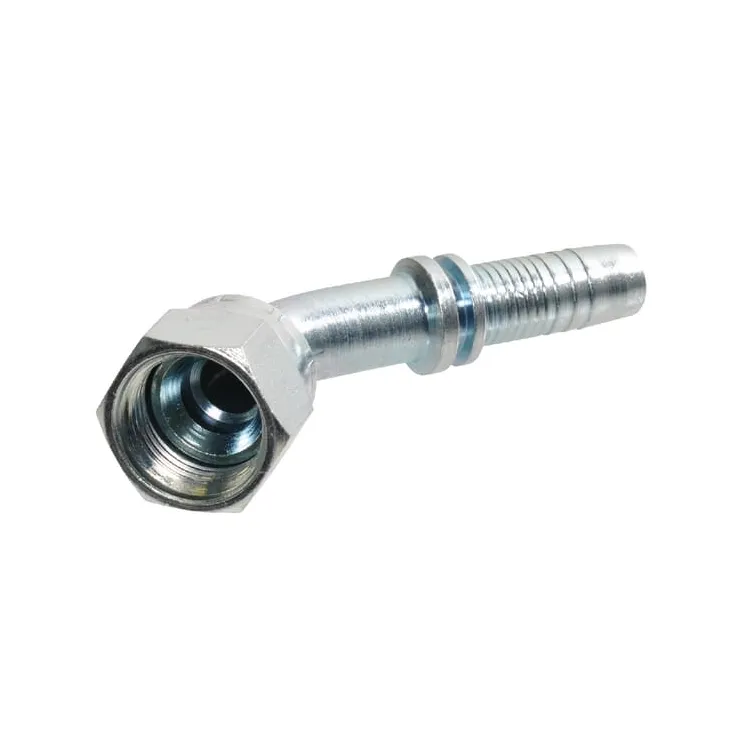

Ievietojiet DN20-1 3/16-UNF-45° PA201945

Name: Ievietojiet DN20-1 3/16-UNF-45° PA201945
Brand: Alfagomma
SKU: PA201945
Price: 14.35 EUR
Availability: BackOrder

Apmaksas iespējas

14,35 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN20-1 3/16-UNF-45° PA201945 Alfagomma

Uz pasūtījumu

ID: 88961

Apraksts

Part number	PA201945
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	23 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	19 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	97.7 mm
Connection no 1 diameter	1-3/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	36.0 mm
Material	Steel
Original number equivalent	H1222541-121400
Shape	Elbow - 2 connection sides
