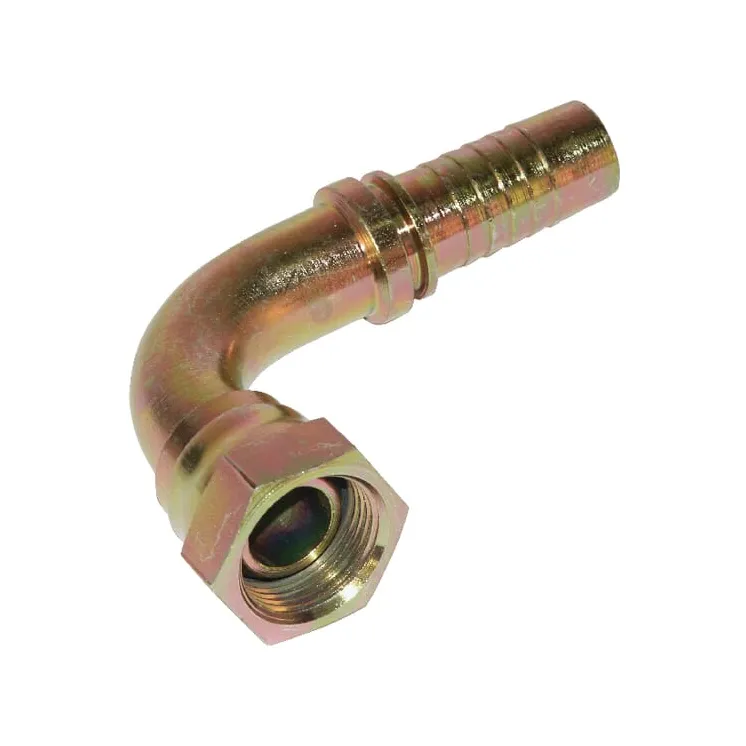

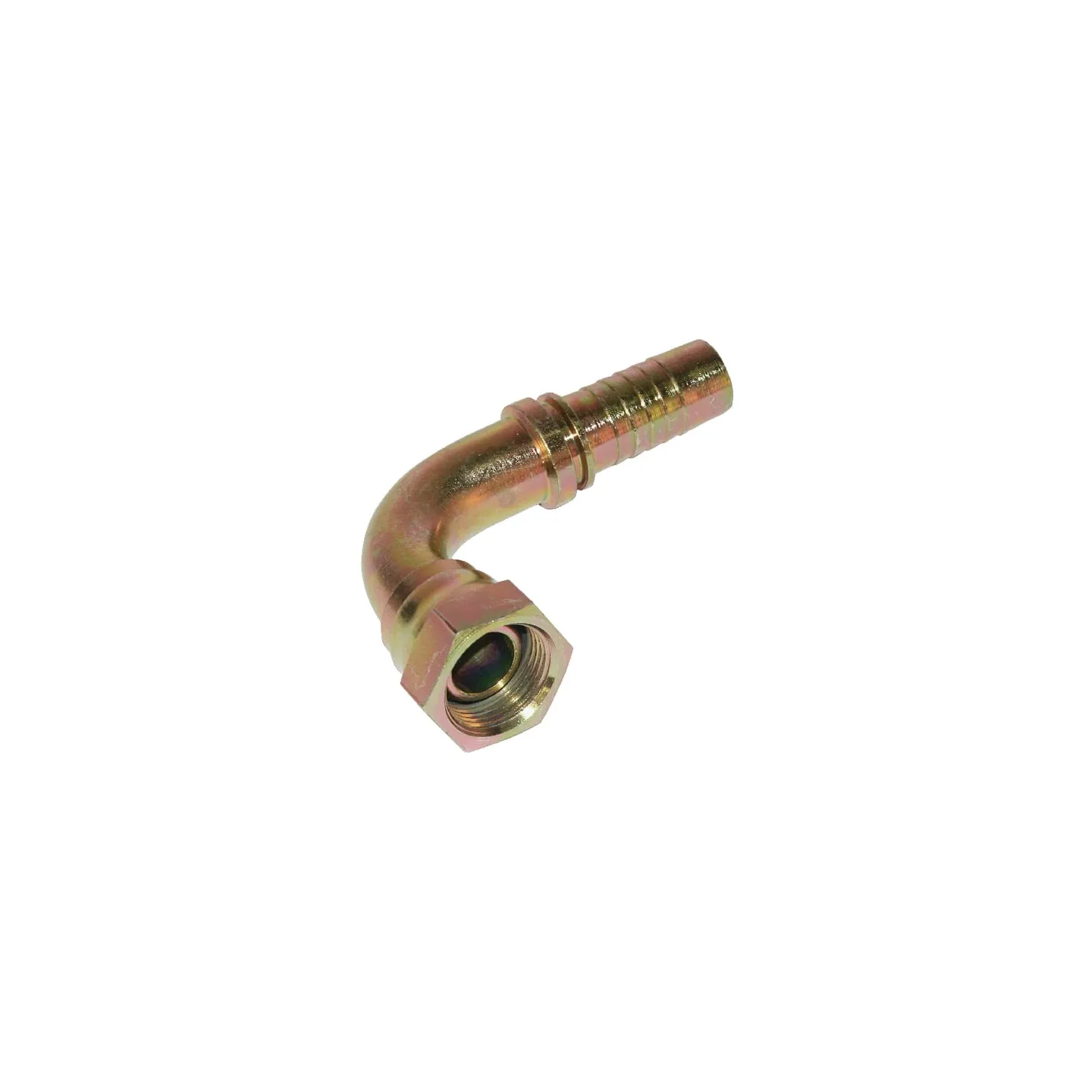

Ievietojiet DN13-3/8 BSP-90º PF13690

Name: Ievietojiet DN13-3/8 BSP-90º PF13690
Brand: Alfagomma
SKU: PF13690
Price: 8.89 EUR
Availability: InStock

Apmaksas iespējas

8,89 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-3/8 BSP-90º PF13690 Alfagomma

IR NOLIKTAVĀ

ID: 88971

Apraksts

Part number	PF13690
EAN	8716106786374
Unit	Each
Product details	O-ring seal DKOR
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 length	35.3 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Connection no 1 wrench size	22.0 mm
ISO standard	228
Material	Steel
Original number equivalent	H1220891-080600
Shape	Elbow - 2 connection sides
