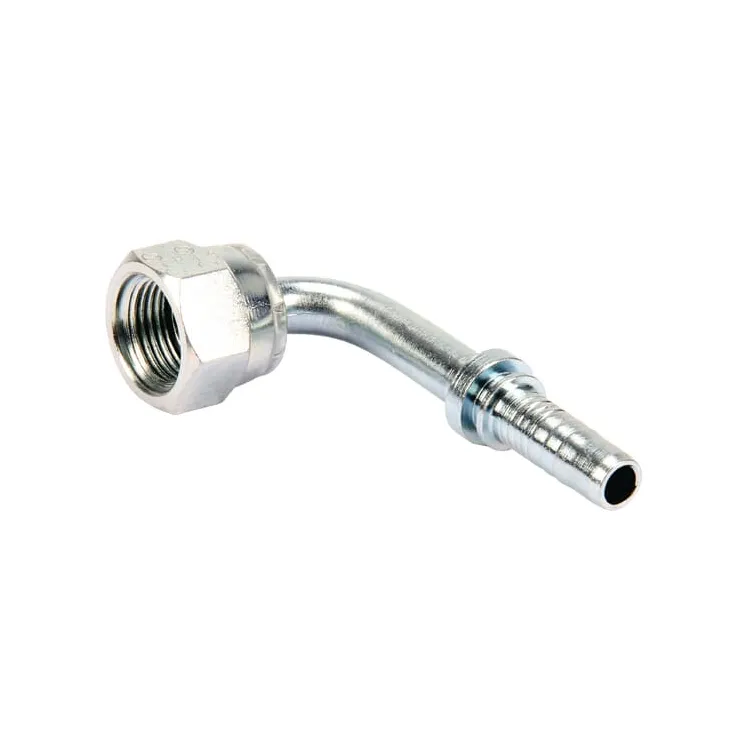

Sajūga savienojums DN20-1 1/16-UNF-90° PA201790S

Name: Sajūga savienojums DN20-1 1/16-UNF-90° PA201790S
Brand: Alfagomma
SKU: PA201790S
Price: 10.65 EUR
Availability: BackOrder

Apmaksas iespējas

10,65 €

AR PVN

Pēc pieprasījuma

Sajūga savienojums DN20-1 1/16-UNF-90° PA201790S Alfagomma

Uz pasūtījumu

ID: 88978

Apraksts

Part number	PA201790S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Short model (size D)- Tapered, metal on metal seal
Benefits	Suitable for confined installation spaces
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	46 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	58.2 mm
F1Connection no 1 thread diameter	1-1/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	32.0 mm
Material	Steel
Original number equivalent	H1222591-12120S
SAE standard	514
Shape	Elbow - 2 connection sides
