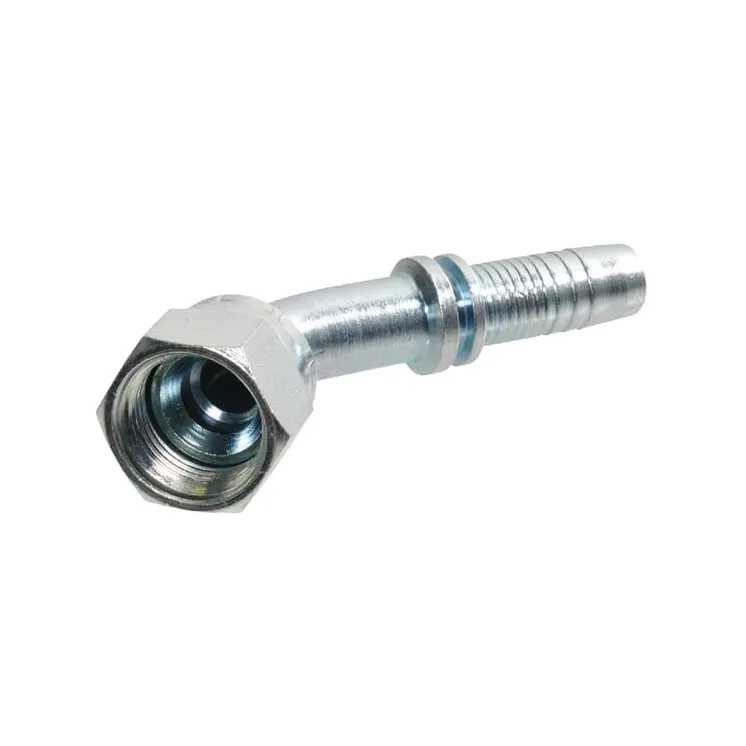

Ievietojiet DN16-1 1/16-UNF-45° PA161745 DKJ161745

Name: Ievietojiet DN16-1 1/16-UNF-45° PA161745 DKJ161745
Brand: Alfagomma
SKU: PA161745
Price: 9.22 EUR
Availability: BackOrder

Apmaksas iespējas

9,22 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN16-1 1/16-UNF-45° PA161745 Alfagomma DKJ161745

Uz pasūtījumu

ID: 88980

Apraksts

Part number	PA161745
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	21 mm
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	68.6 mm
Connection no 1 diameter	1-1/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	32.0 mm
Material	Steel
Original number equivalent	H1222541-10120M
Shape	Elbow - 2 connection sides
