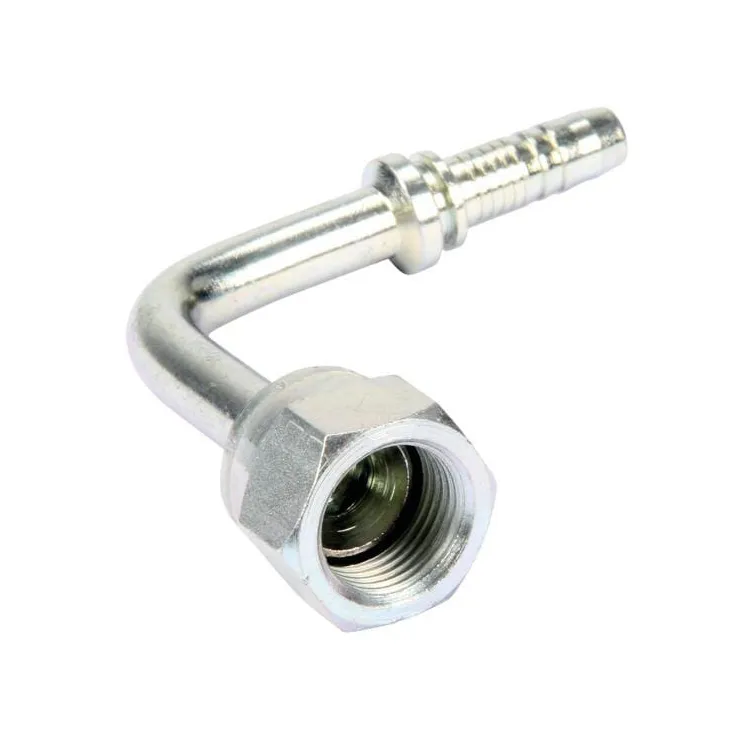

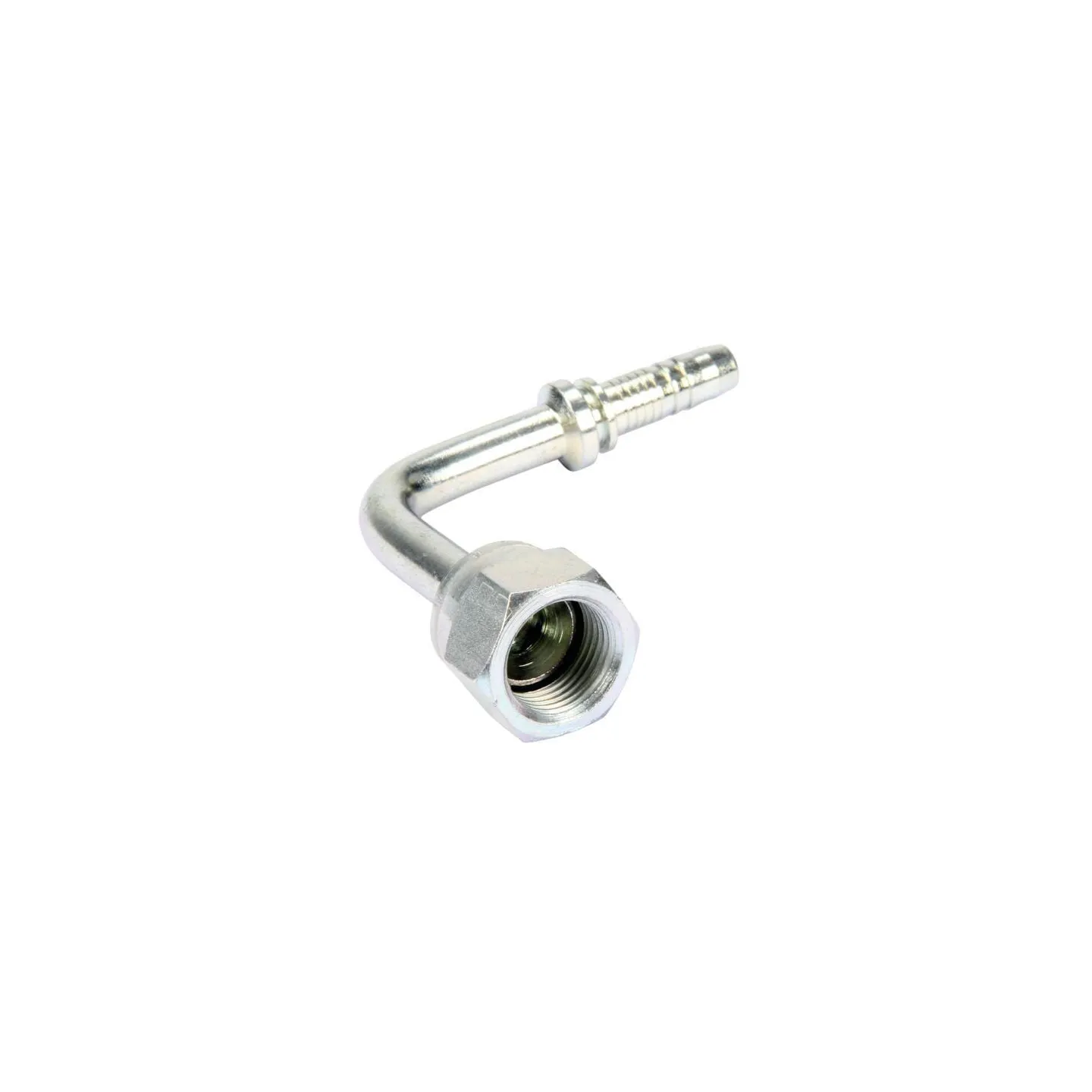

• Ievietojiet DN10-3/4-UNF-90° PA101290L Alfagomma

Ievietojiet DN10-3/4-UNF-90° PA101290L

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
8,69 €
AR PVN
Pēc pieprasījuma
Ievietojiet DN10-3/4-UNF-90° PA101290L Alfagomma
Uz pasūtījumu

89006

Part number
PA101290L
EAN
Unit
Each
Pros
Possible to install hoses on top of each other
Product details
  • Long model (size D)
  • Cone, metal on metal seal
  • Flared fittings
Benefits
Hoses can be installed over one another
Surface treatment
  • Zinc-plated
  • White passivated
Angle
90 °
Cone angle
37 °
DConnection 2, centre to end distance
64 mm
Connection 2, diameter
3/8 Inch
Connection 2, diameter
10 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
46.8 mm
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 thread type
UNF
Connection no 1 type code
DKJ
Connection no 1 type - male/female
Female
Connection no 1 type
Thread
CH1Connection no 1 wrench size
25.0 mm
Material
Steel
Original number equivalent
H1222591-06080L
Shape
Elbow - 2 connection sides
  • Zīmols
  • Norāde
    PA101290L
  • Stāvoklis
    Jauns
