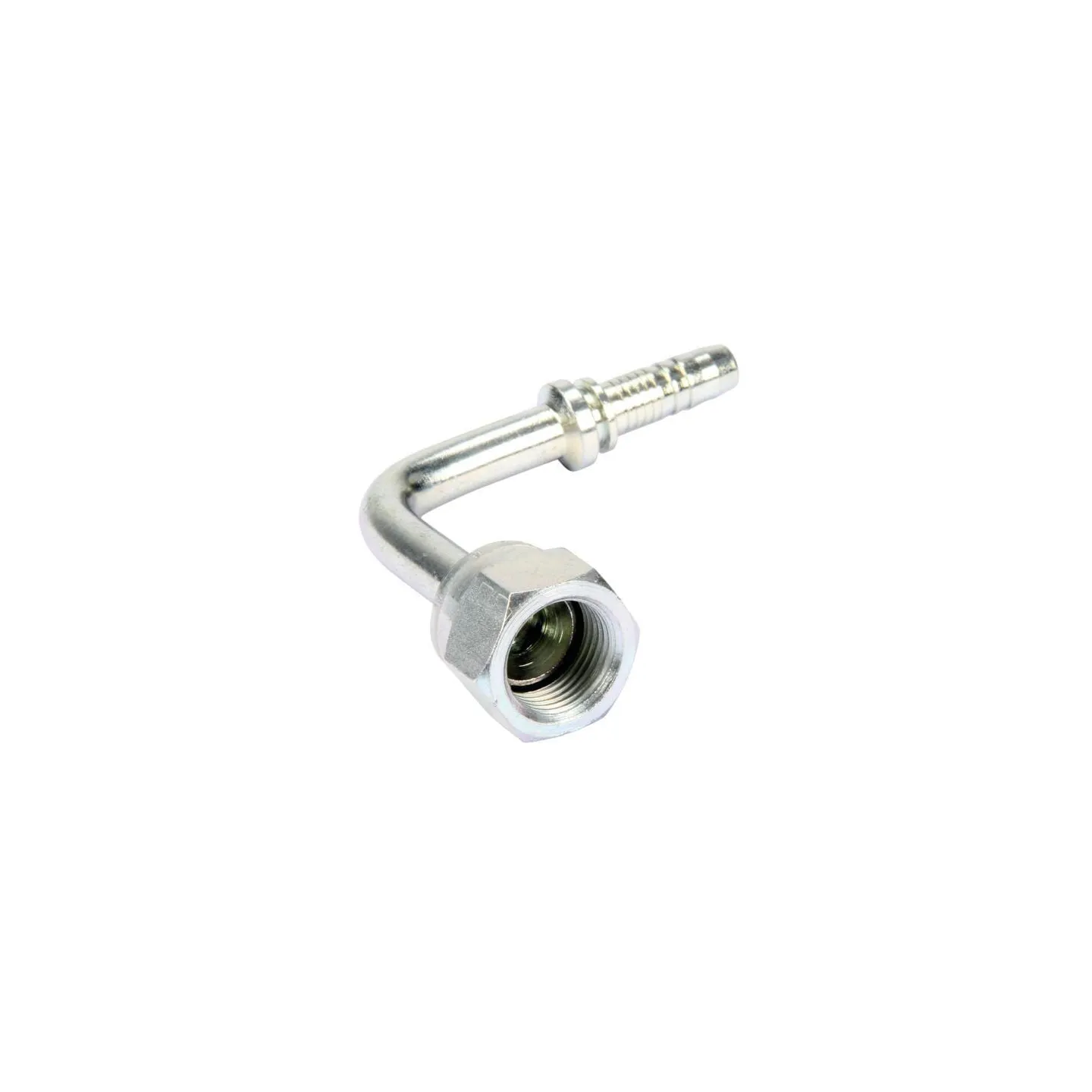

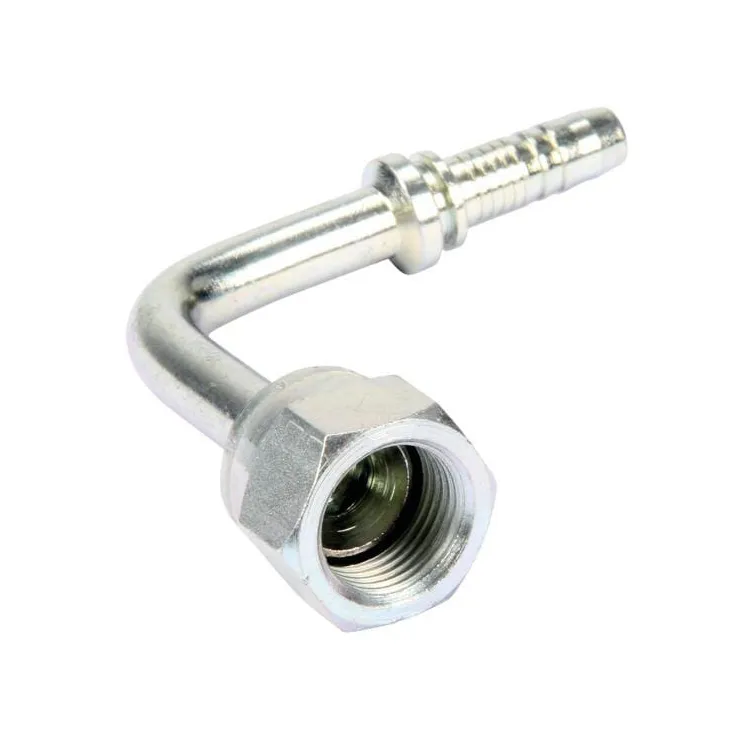

Ievietojiet DN13-3/4-UNF-90° PA131290L

Name: Ievietojiet DN13-3/4-UNF-90° PA131290L
Brand: Alfagomma
SKU: PA131290L
Price: 9.33 EUR
Availability: BackOrder

Apmaksas iespējas

9,33 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN13-3/4-UNF-90° PA131290L Alfagomma

Uz pasūtījumu

ID: 89016

Apraksts

Part number	PA131290L
EAN
Unit	Each
Pros	Possible to install hoses on top of each other
Product details	Long model (size D) Cone, metal on metal seal Flared fittings
Benefits	Hoses can be installed over one another
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	64 mm
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	50 mm
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	25.0 mm
Material	Steel
Original number equivalent	H1222591-08080L
Shape	Elbow - 2 connection sides
