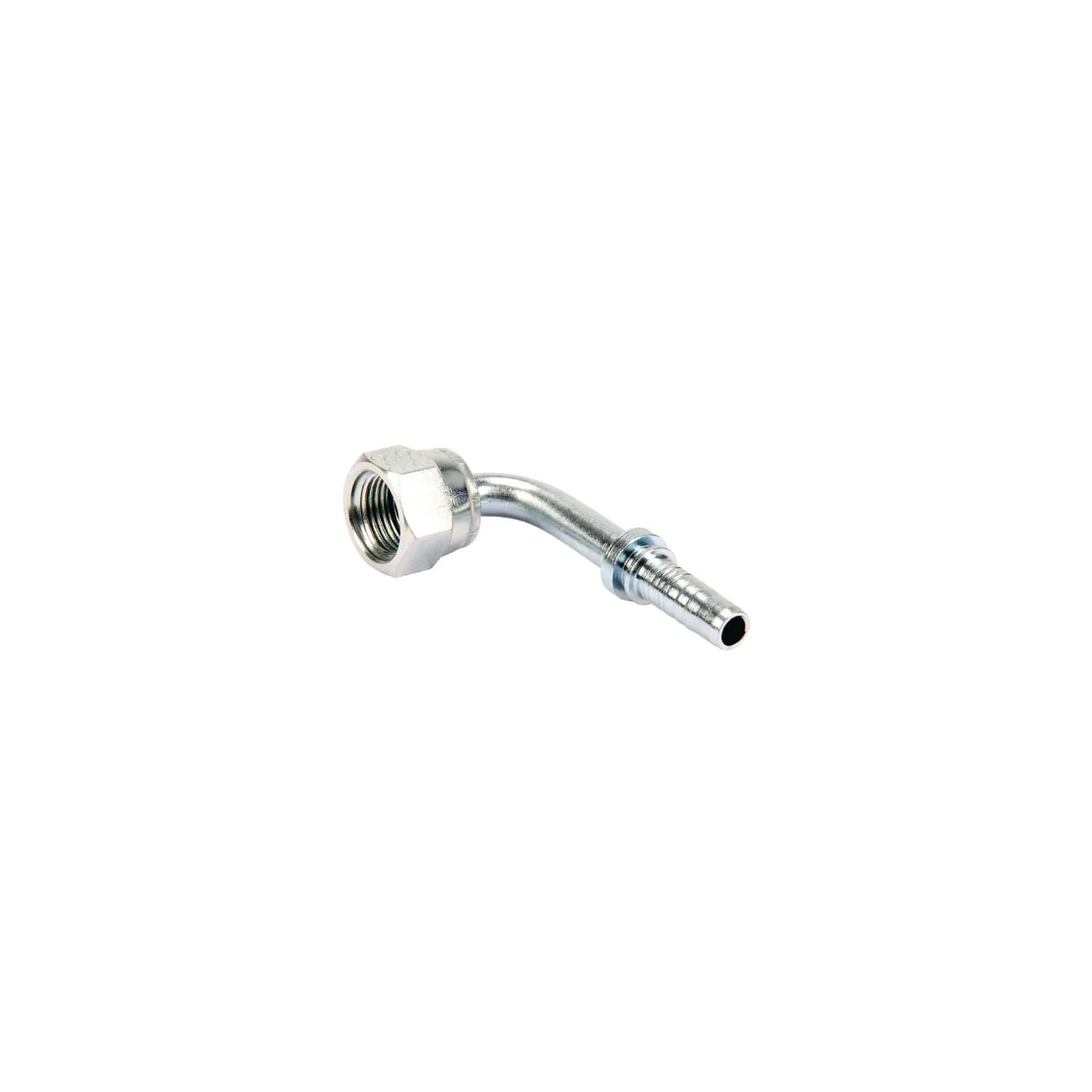

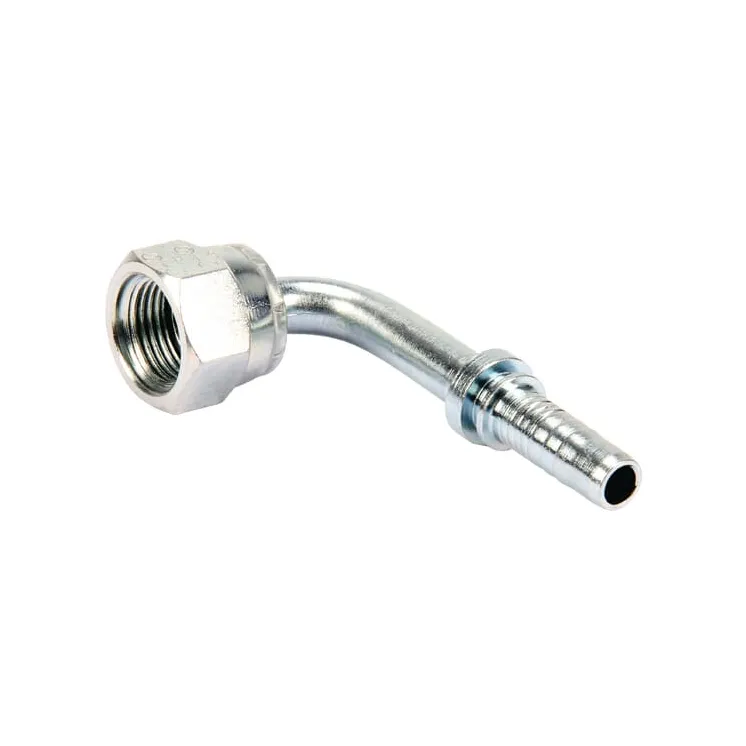

Sajūga savienojums DN10-9/16-UNF-90° PA10990S

Name: Sajūga savienojums DN10-9/16-UNF-90° PA10990S
Brand: Alfagomma
SKU: PA10990S
Price: 4.8 EUR
Availability: InStock

Apmaksas iespējas

4,80 €

AR PVN

4-5 Darba dienas

Sajūga savienojums DN10-9/16-UNF-90° PA10990S Alfagomma

IR NOLIKTAVĀ

ID: 89027

Apraksts

Part number	PA10990S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Short model (size D)- Tapered, metal on metal seal
Benefits	Suitable for confined installation spaces
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	23 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	42.7 mm
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	19.0 mm
Material	Steel
Original number equivalent	H1222591-06060S
SAE standard	514
Shape	Elbow - 2 connection sides
