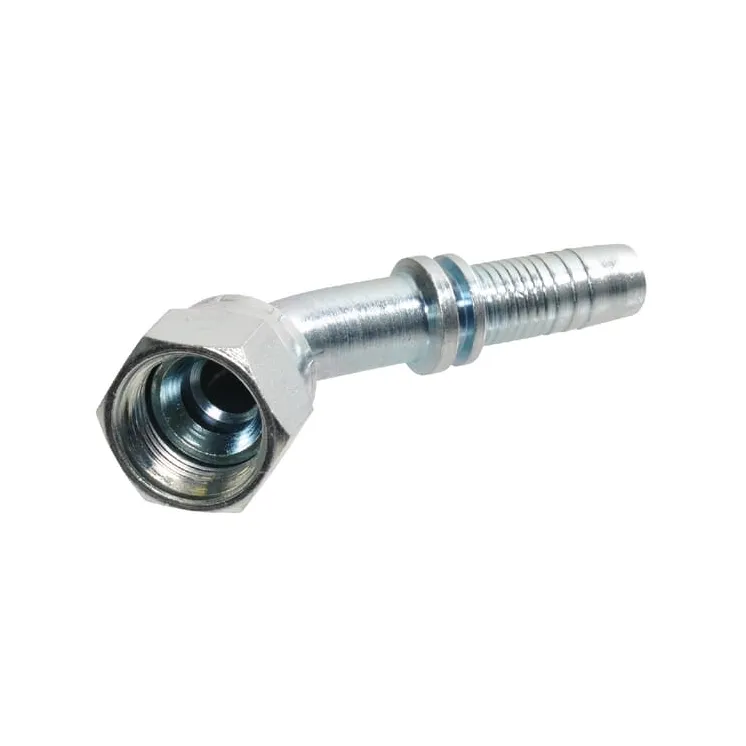

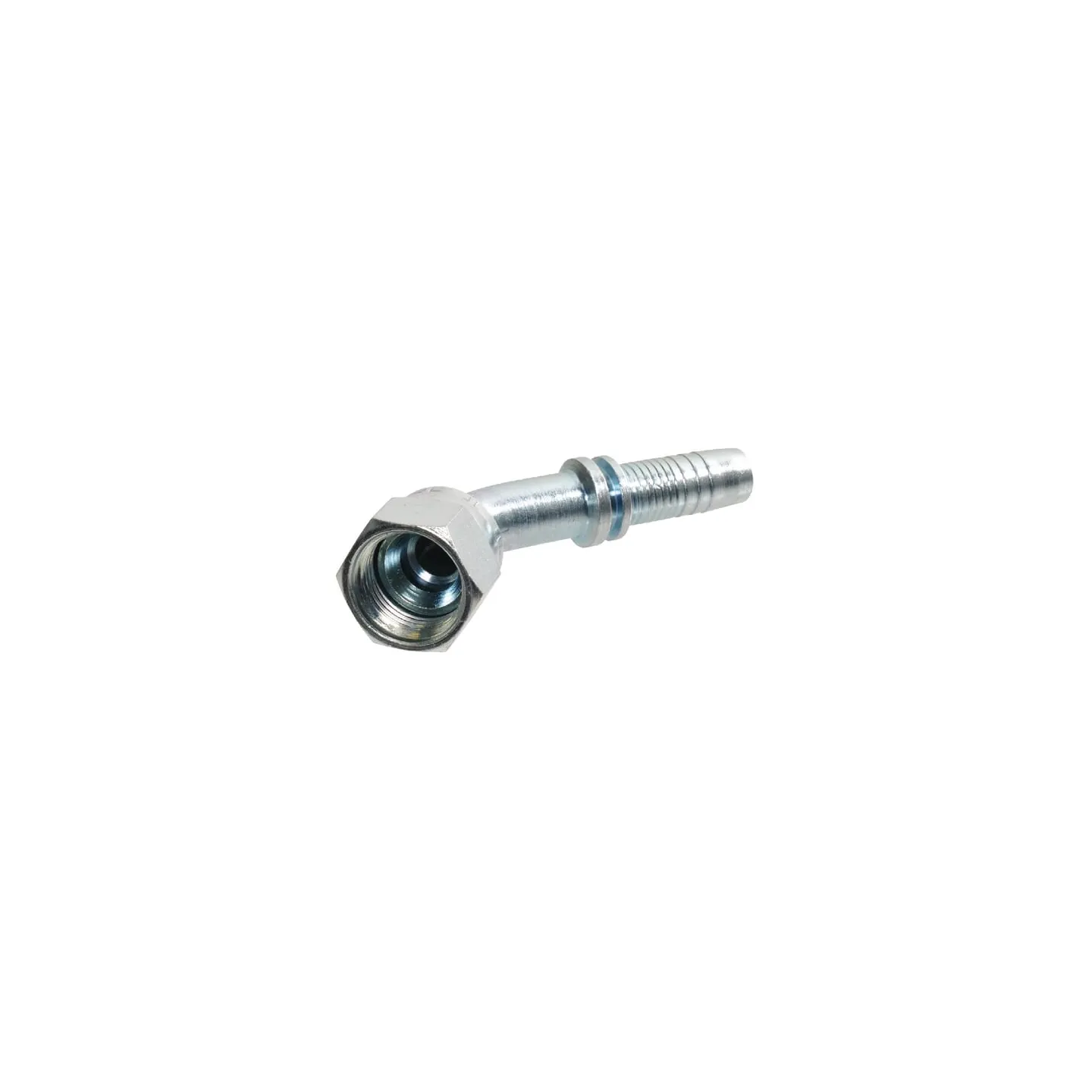

Ievietojiet DN16-7/8-UNF-45° PA161445 DKJ161445

Name: Ievietojiet DN16-7/8-UNF-45° PA161445 DKJ161445
Brand: Alfagomma
SKU: PA161445
Price: 8.01 EUR
Availability: InStock

Apmaksas iespējas

8,01 €

AR PVN

4-5 Darba dienas

Ievietojiet DN16-7/8-UNF-45° PA161445 Alfagomma DKJ161445

IR NOLIKTAVĀ

ID: 89028

Apraksts

Part number	PA161445
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	19 mm
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	62.2 mm
Connection no 1 diameter	7/8 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	27.0 mm
Material	Steel
Original number equivalent	H1222541-10100M
Shape	Elbow - 2 connection sides
