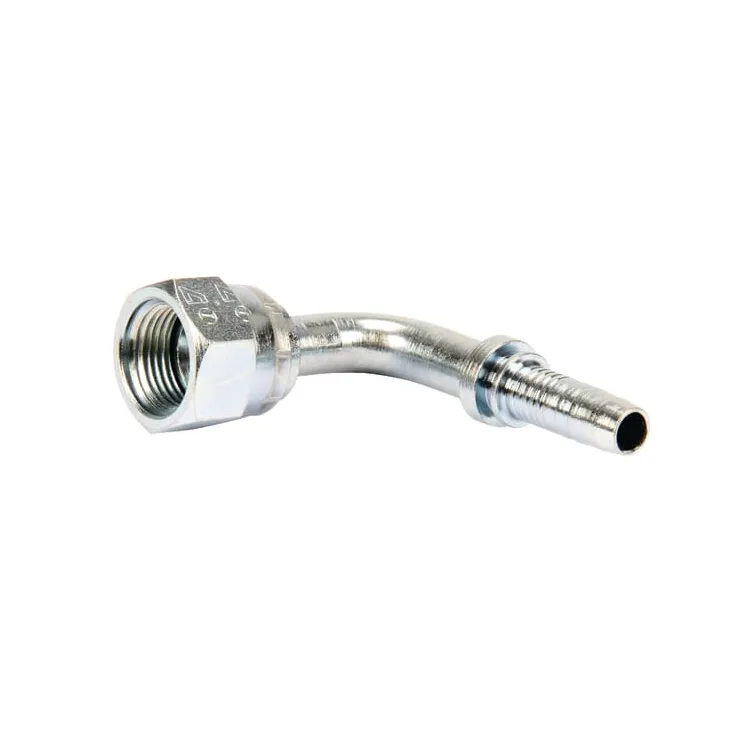

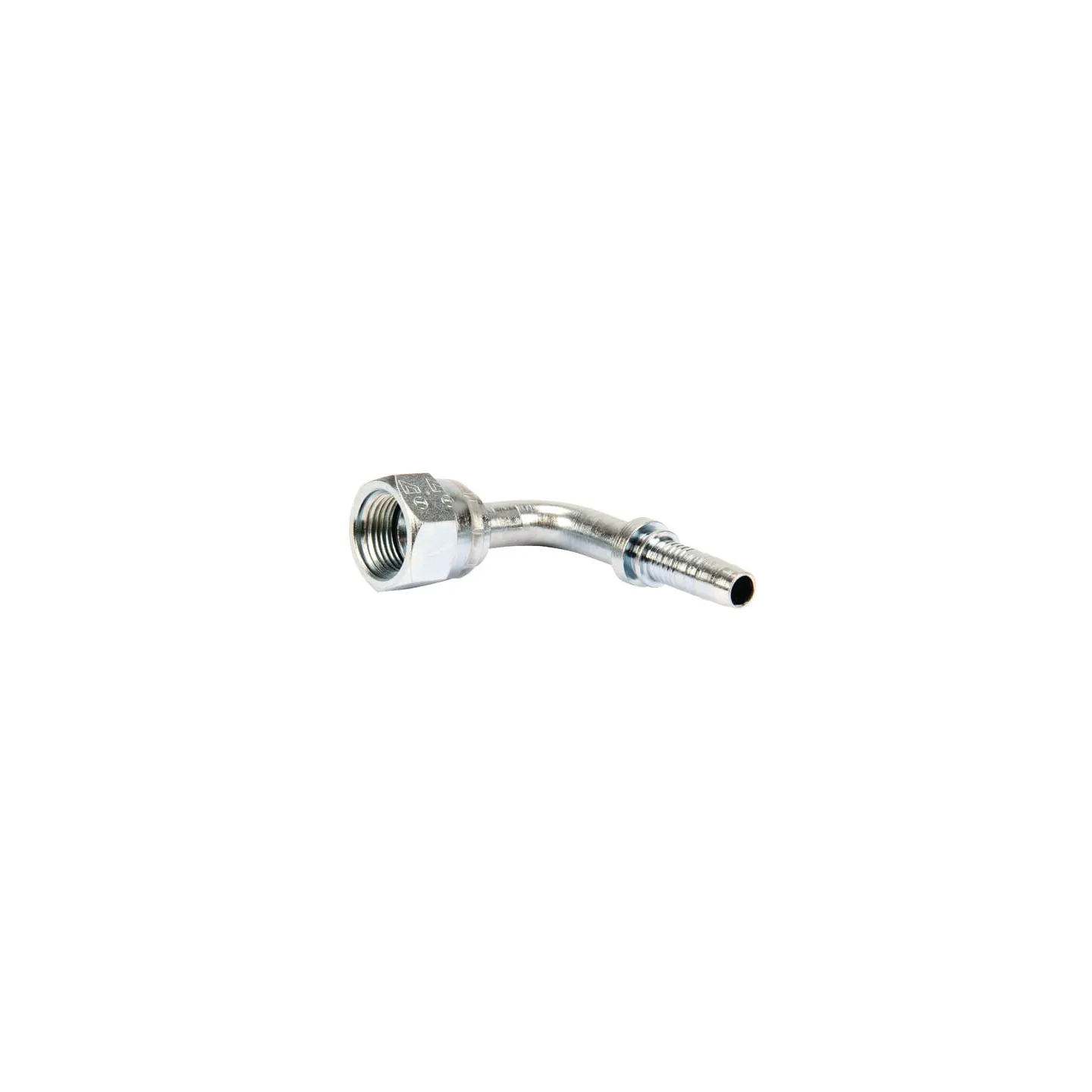

Ievietojiet DN05-7/16-UNF-90° PA5790

Name: Ievietojiet DN05-7/16-UNF-90° PA5790
Brand: Alfagomma
SKU: PA5790
Price: 3.76 EUR
Availability: BackOrder

Apmaksas iespējas

3,76 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN05-7/16-UNF-90° PA5790 Alfagomma

Uz pasūtījumu

ID: 89033

Apraksts

Part number	PA5790
EAN
Unit	Each
Product details	Cone, metal on metal seal Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
Connection 2, diameter	3/16 Inch
Connection 2, diameter	5 mm
DConnection 2, length	32 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 length	33.5 mm
F1Connection no 1 thread diameter	7/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	16.0 mm
Material	Steel
Original number equivalent	H1222591-03040M
Shape	Elbow - 2 connection sides
