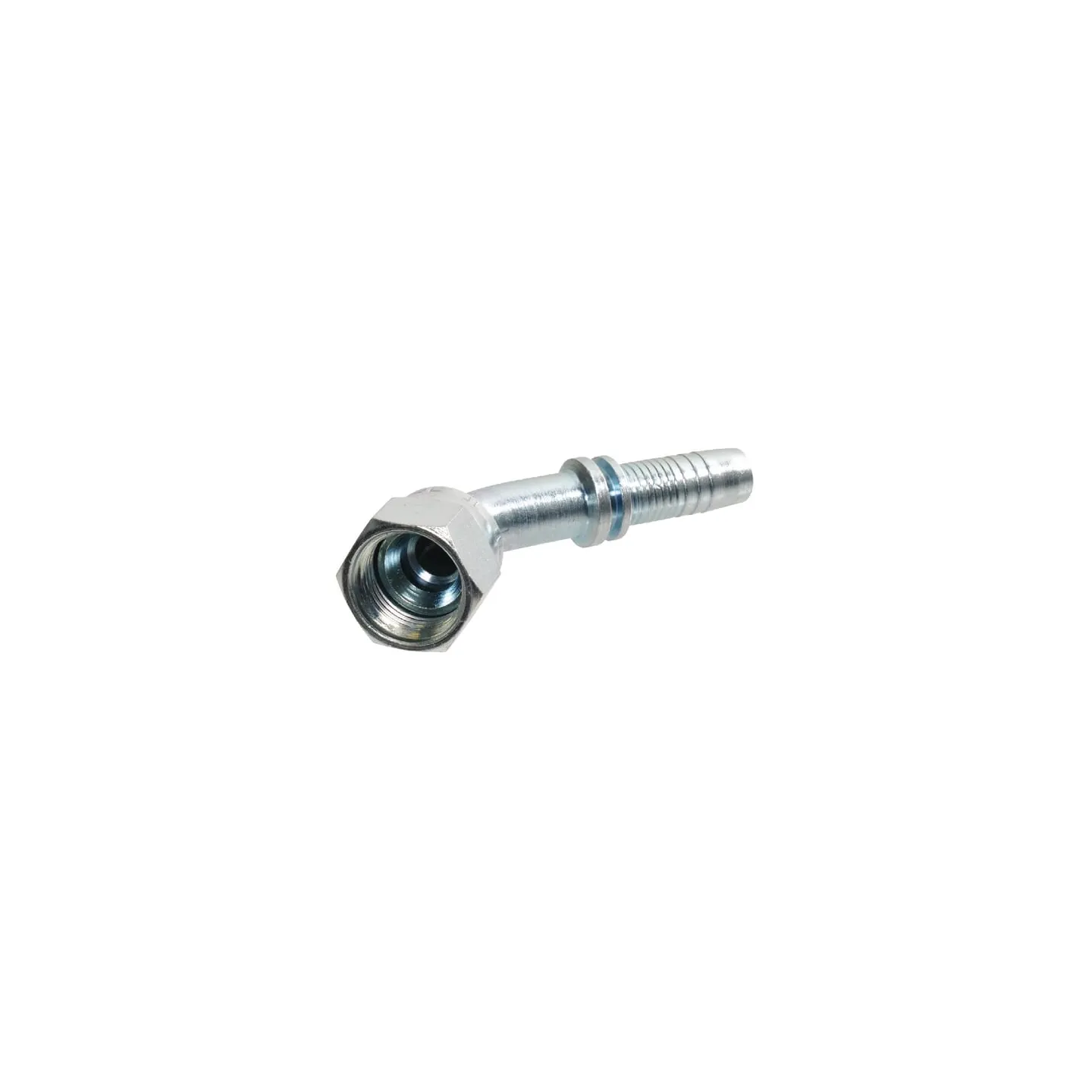

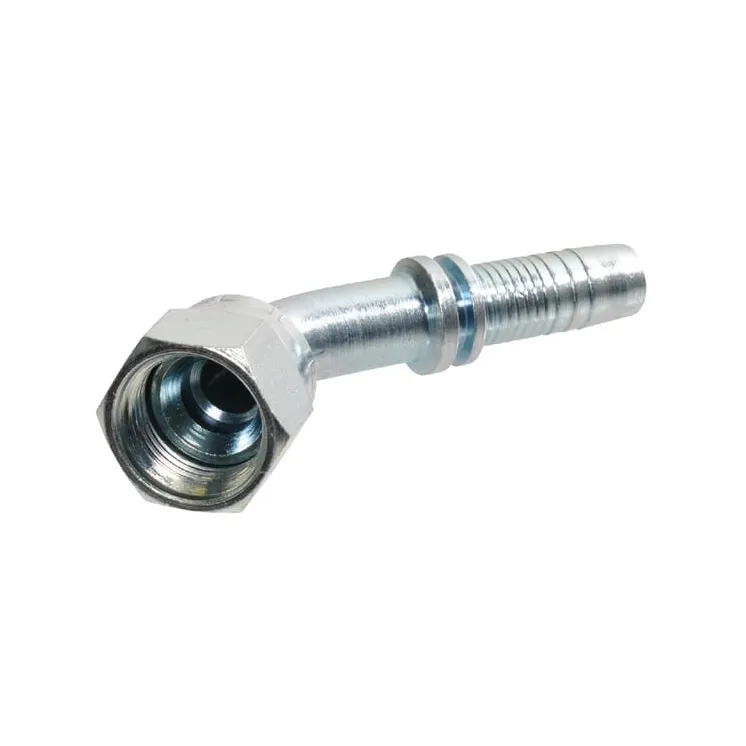

Ievietojiet DN06-1/2-UNF-45° PA6845

Name: Ievietojiet DN06-1/2-UNF-45° PA6845
Brand: Alfagomma
SKU: PA6845
Price: 5.3 EUR
Availability: InStock

Apmaksas iespējas

5,30 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-1/2-UNF-45° PA6845 Alfagomma

IR NOLIKTAVĀ

ID: 89068

Apraksts

Part number	PA6845
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	12 mm
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	37.2 mm
Connection no 1 diameter	1/2 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	17.0 mm
Material	Steel
Original number equivalent	H1222541-04050M
Shape	Elbow - 2 connection sides
