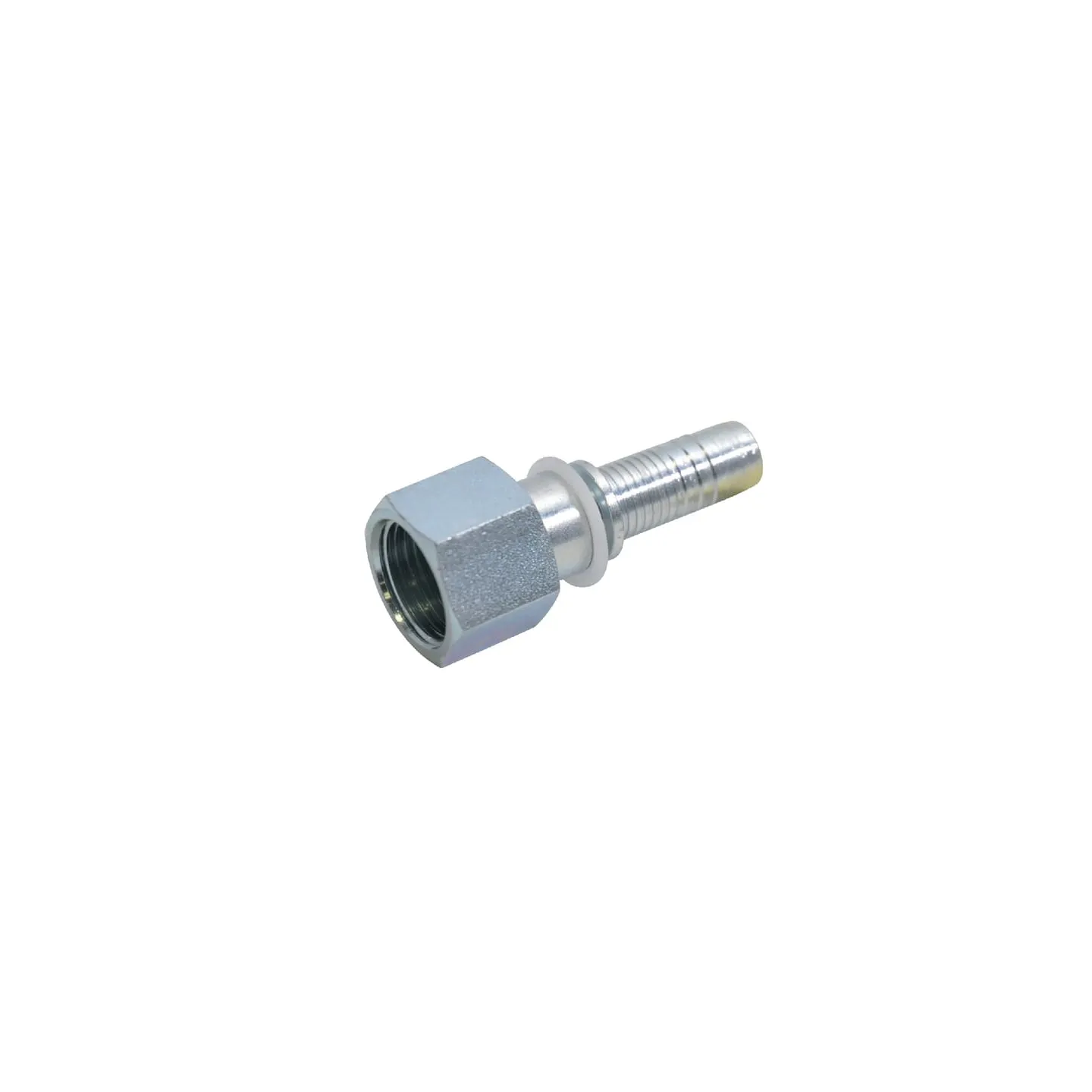

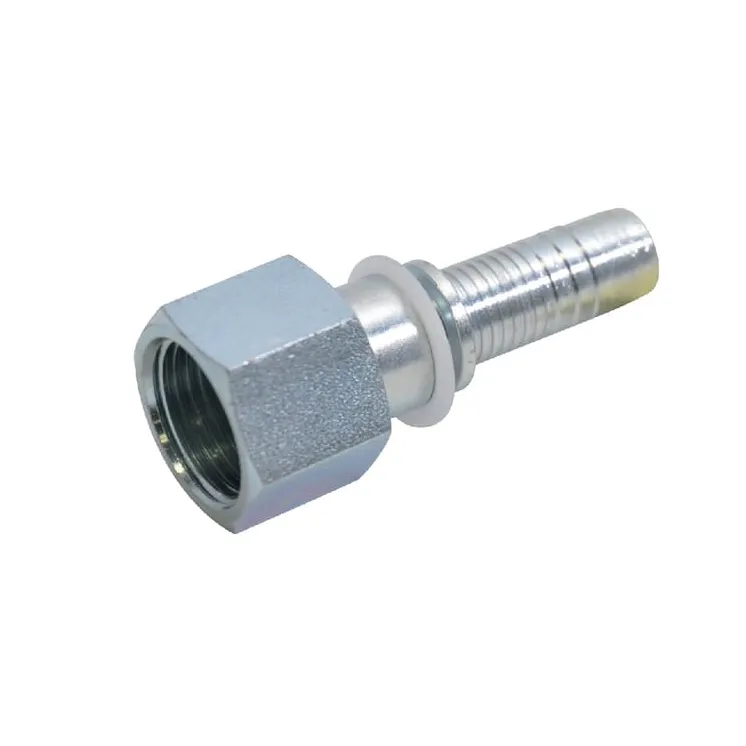

Ievietojiet DN13-3/8 BSP PF136

Name: Ievietojiet DN13-3/8 BSP PF136
Brand: Alfagomma
SKU: PF136
Price: 4.62 EUR
Availability: InStock

Apmaksas iespējas

4,62 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-3/8 BSP PF136 Alfagomma

IR NOLIKTAVĀ

ID: 89075

Apraksts

Part number	PF136
EAN	8716106786626
Unit	Each
Product details	O-ring seal DKOR
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	18.6 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	22.0 mm
Height	22 mm
ISO standard	228
Material	Steel
Shape	Straight - 2 connection sides
