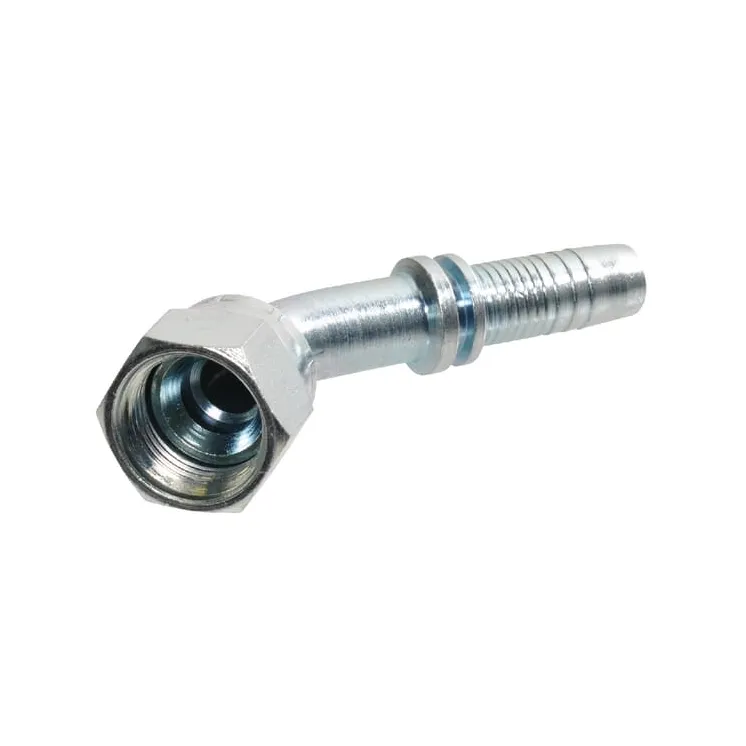

Ievietojiet DN06-9-16-UNF-45° PA6945

Name: Ievietojiet DN06-9-16-UNF-45° PA6945
Brand: Alfagomma
SKU: PA6945
Price: 3.42 EUR
Availability: InStock

Apmaksas iespējas

3,42 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-9-16-UNF-45° PA6945 Alfagomma

IR NOLIKTAVĀ

ID: 89120

Apraksts

Part number	PA6945
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	11 mm
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	39.4 mm
Connection no 1 diameter	9/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	19.0 mm
Material	Steel
Original number equivalent	H122254 - 04060M
Shape	Elbow - 2 connection sides
