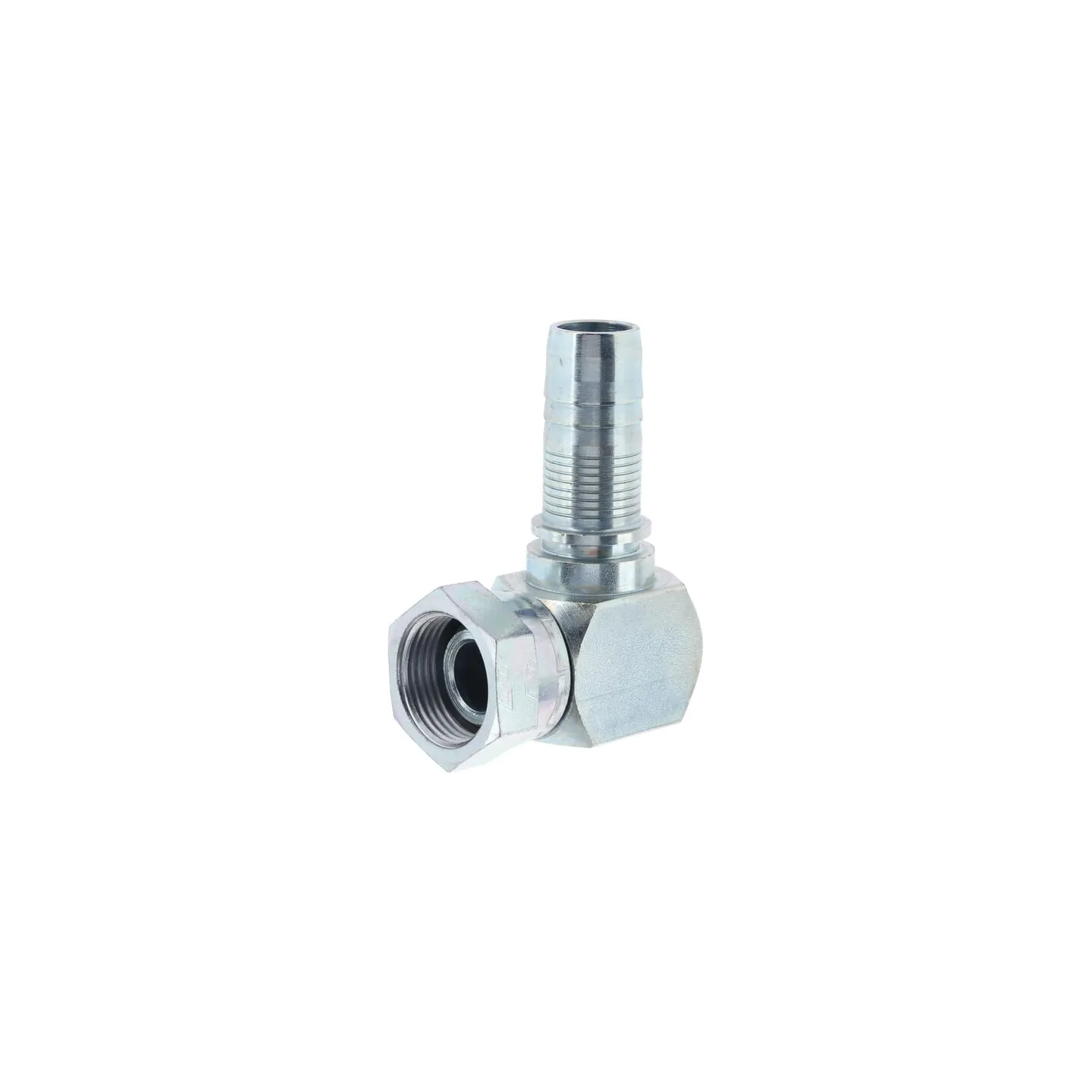

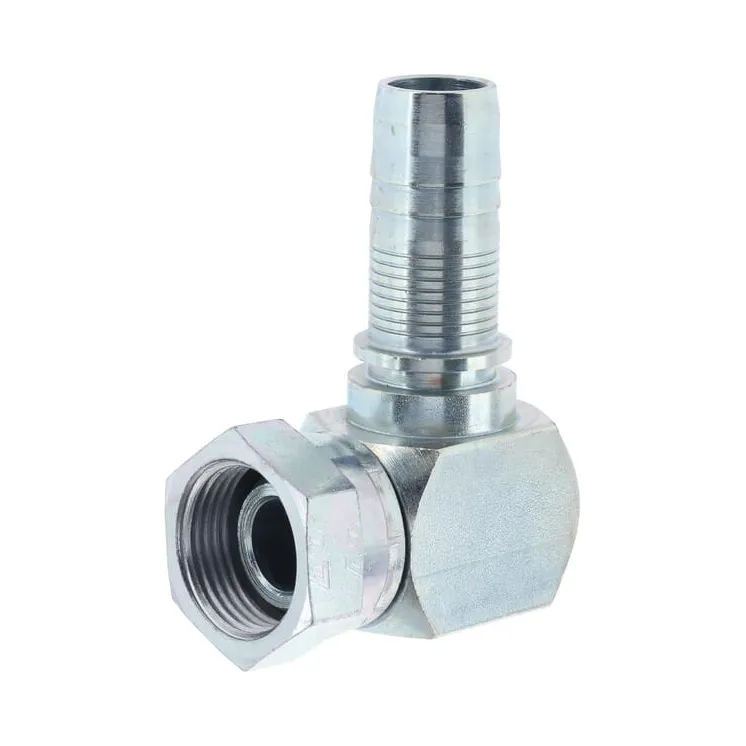

Ievietojiet DN20-3/4 BSP-90° PF201290S

Name: Ievietojiet DN20-3/4 BSP-90° PF201290S
Brand: Alfagomma
SKU: PF201290S
Price: 22.81 EUR
Availability: InStock

Apmaksas iespējas

22,81 €

AR PVN

4-5 Darba dienas

Ievietojiet DN20-3/4 BSP-90° PF201290S Alfagomma

IR NOLIKTAVĀ

ID: 89135

Apraksts

Part number	PF201290S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Low elbow - O-ring seal
Benefits	Suitable for confined installation spaces
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
DConnection 2, centre to end distance	31 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	26.7 mm
Connection no 1 diameter	3/4 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	32.0 mm
ISO standard	228
Material	Steel
Original number equivalent	H1220581-121200
Shape	Elbow - 2 connection sides
