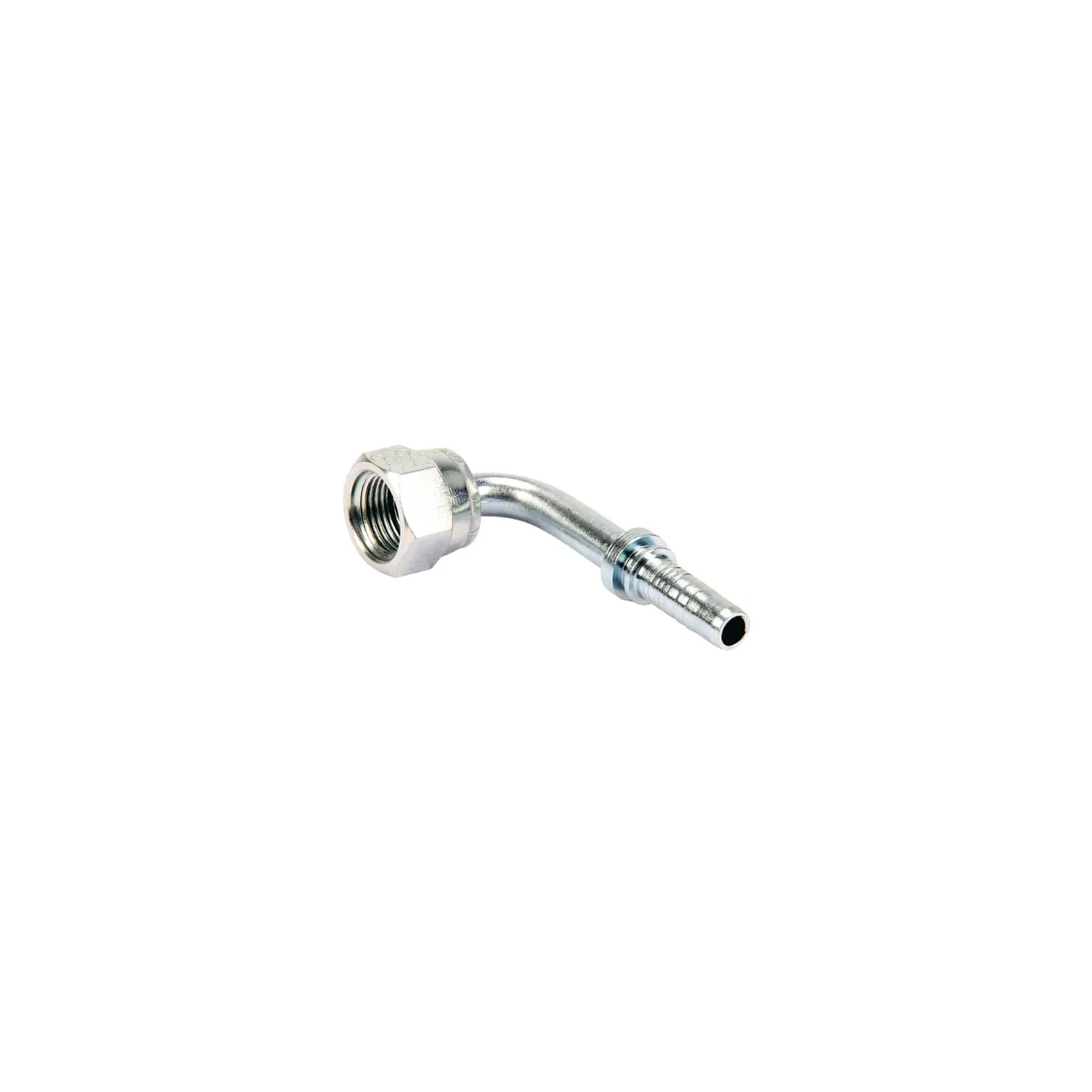

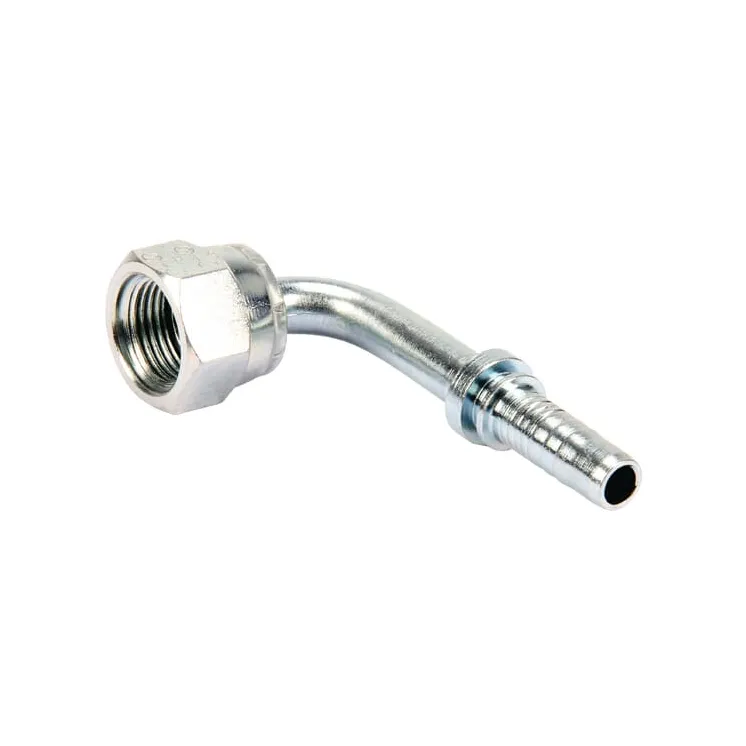

Sajūga savienojums DN10-3/4-UNF-90° PA101290S

Name: Sajūga savienojums DN10-3/4-UNF-90° PA101290S
Brand: Alfagomma
SKU: PA101290S
Price: 5.86 EUR
Availability: InStock

Apmaksas iespējas

5,86 €

AR PVN

4-5 Darba dienas

Sajūga savienojums DN10-3/4-UNF-90° PA101290S Alfagomma

IR NOLIKTAVĀ

ID: 89155

Apraksts

Part number	PA101290S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Short model (size D)- Tapered, metal on metal seal
Benefits	Suitable for confined installation spaces
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
DConnection 2, centre to end distance	23 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	42.3 mm
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	25.0 mm
Material	Steel
Original number equivalent	H1222591-06080S
SAE standard	514
Shape	Elbow - 2 connection sides
