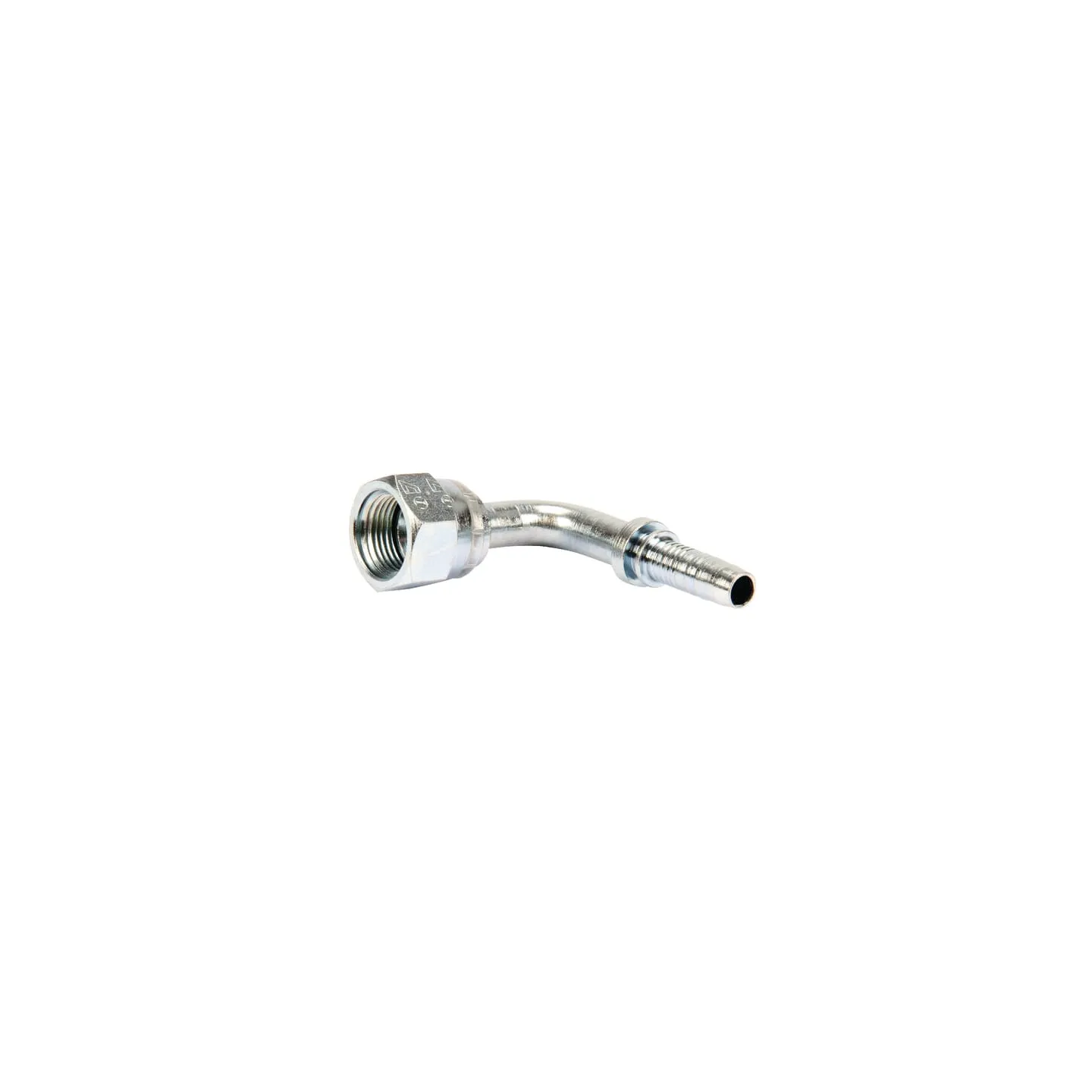

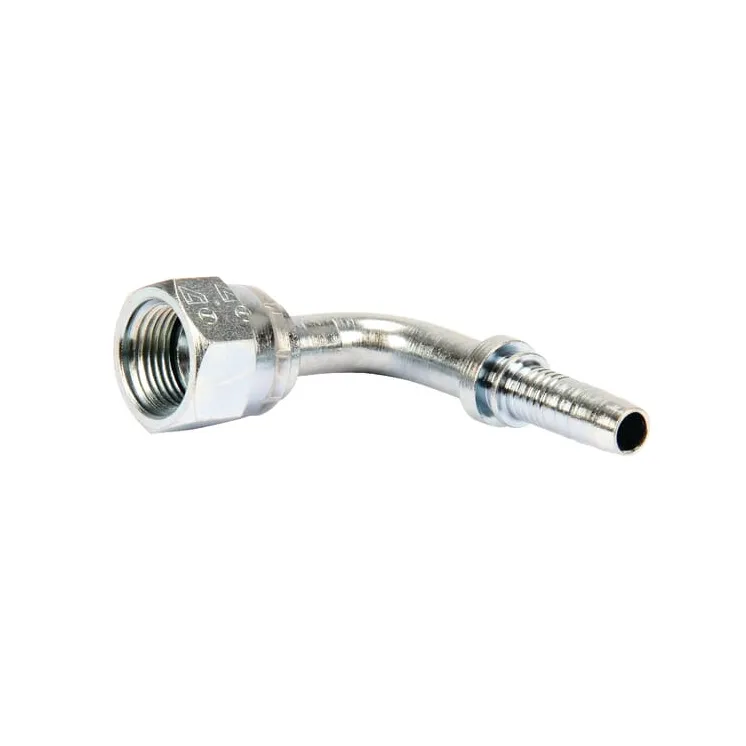

Ievietojiet DN13-11/16-UNF-90° PA131790

Name: Ievietojiet DN13-11/16-UNF-90° PA131790
Brand: Alfagomma
SKU: PA131790
Price: 12.97 EUR
Availability: InStock

Apmaksas iespējas

12,97 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-11/16-UNF-90° PA131790 Alfagomma

IR NOLIKTAVĀ

ID: 89178

Apraksts

Part number	PA131790
EAN	8716106787289
Unit	Each
Product details	Cone, metal on metal seal Flared fittings
Long description	Application range: Flanged screw fitting Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	37 °
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
DConnection 2, length	46 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 length	37.3 mm
F1Connection no 1 thread diameter	1-1/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	32.0 mm
Material	Steel
Original number equivalent	H1222591-08120S
Shape	Elbow - 2 connection sides
