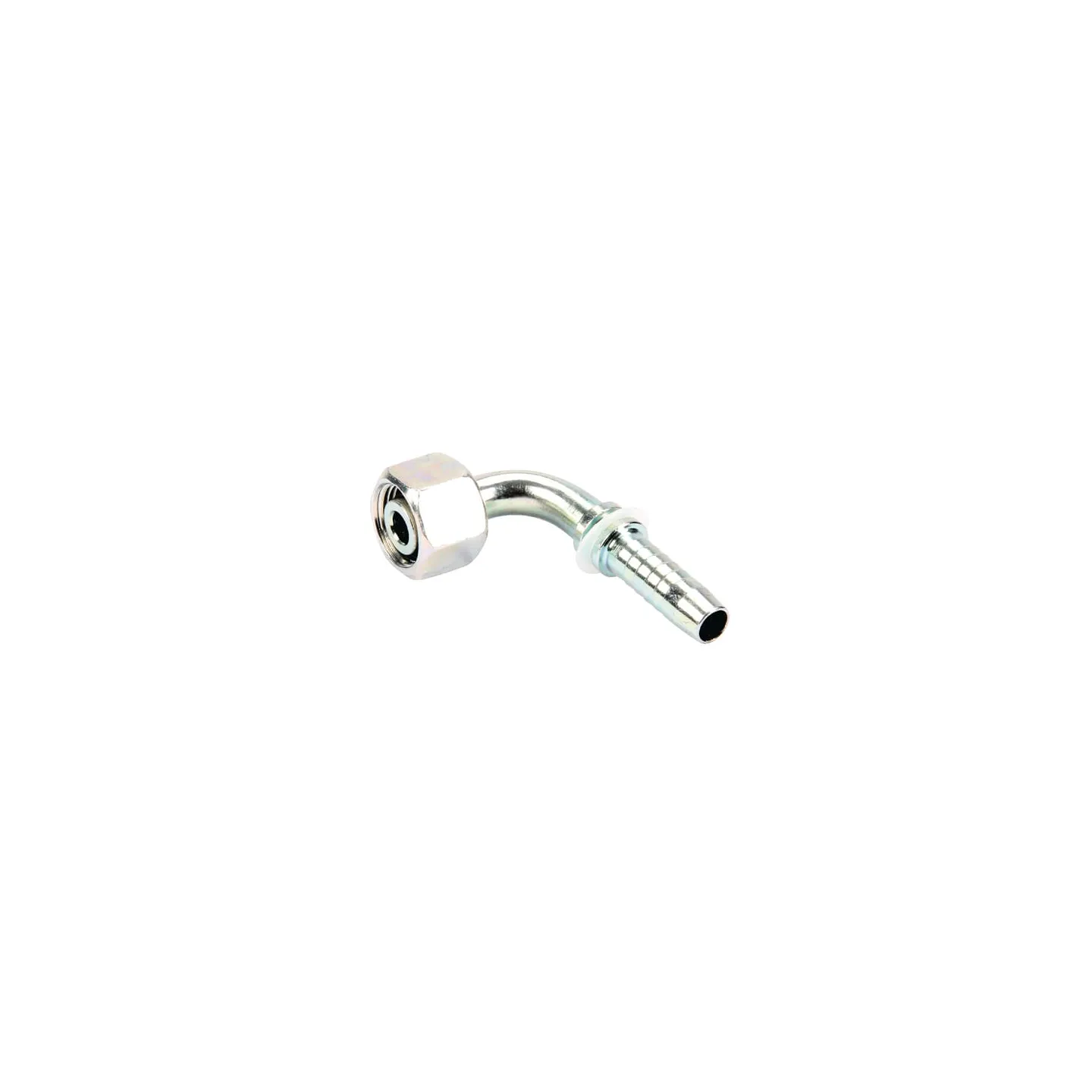

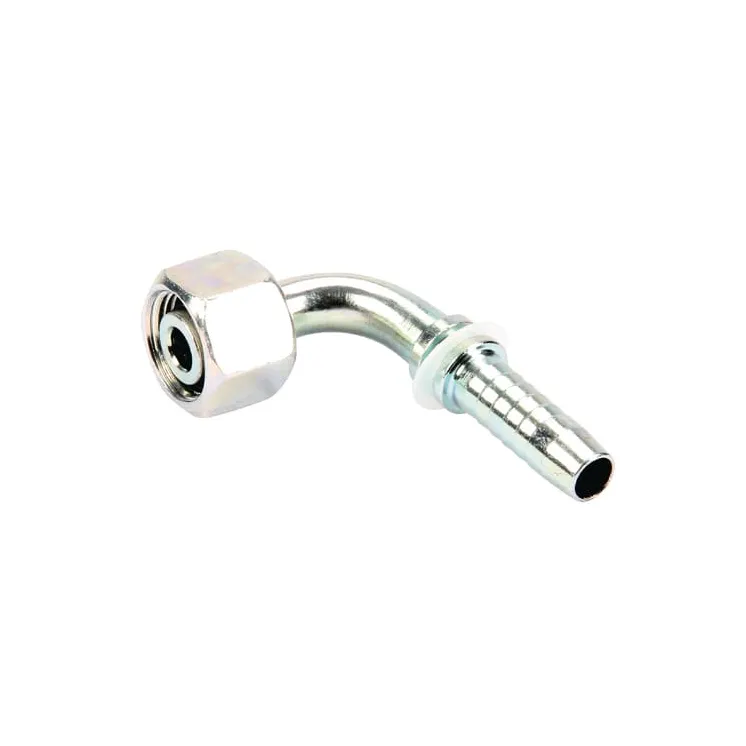

Ievietojiet DN06-M14x1,5-8L-90° PGLO61490 PGLO61490DB

Name: Ievietojiet DN06-M14x1,5-8L-90° PGLO61490 PGLO61490DB
Brand: Alfagomma
SKU: PGLO61490
Price: 2.19 EUR
Availability: InStock

Apmaksas iespējas

2,19 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M14x1,5-8L-90° PGLO61490 Alfagomma PGLO61490DB

IR NOLIKTAVĀ

ID: 89187

Apraksts

Part number	PGLO61490
EAN	8716106787746
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M14
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	17.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	30 mm
CConnection centre to insert distance	28 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	8L
Original number equivalent	H1221593-041400
