Ievietojiet DN10-M18x1,5-10S PGSO1018

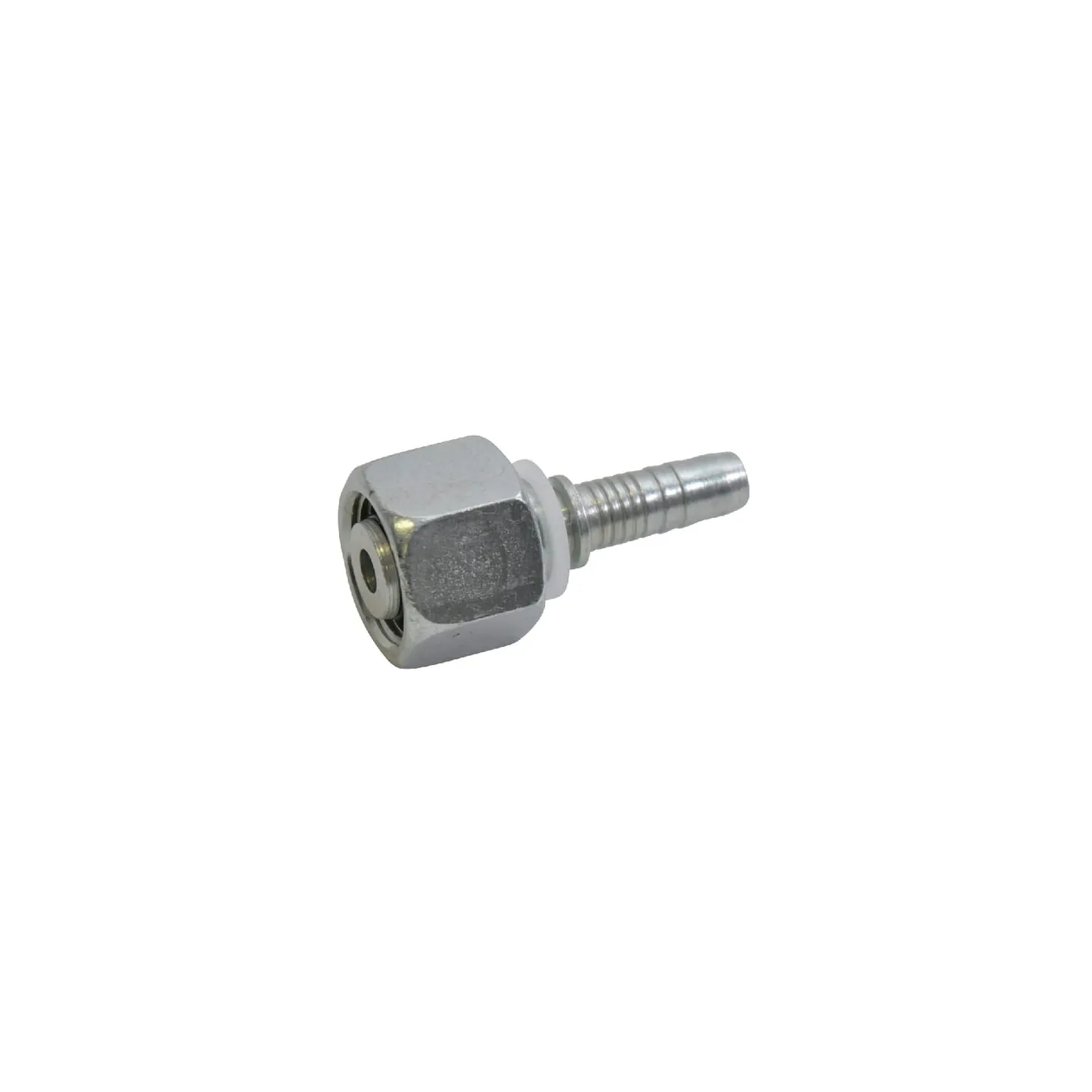

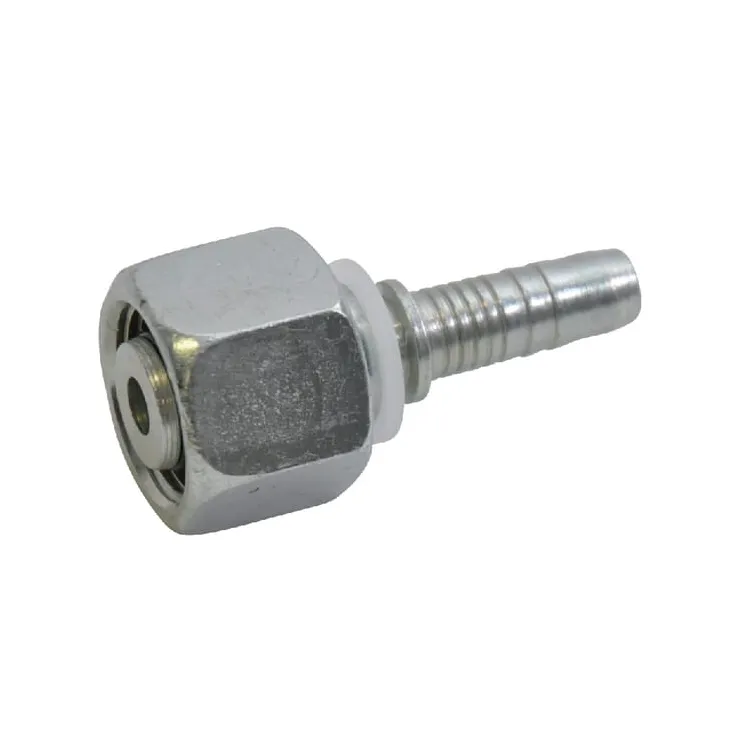

Name: Ievietojiet DN10-M18x1,5-10S PGSO1018
Brand: Alfagomma
SKU: PGSO1018
Price: 8.83 EUR
Availability: InStock

Apmaksas iespējas

8,83 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-M18x1,5-10S PGSO1018 Alfagomma

IR NOLIKTAVĀ

ID: 89201

Apraksts

Part number	PGSO1018
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Surface treatment	Zinc-plated White passivated
Cone angle	24 °
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	27.6 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M18
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	22.0 mm
Material	Steel
Series	10S
Shape	Straight - 2 connection sides
