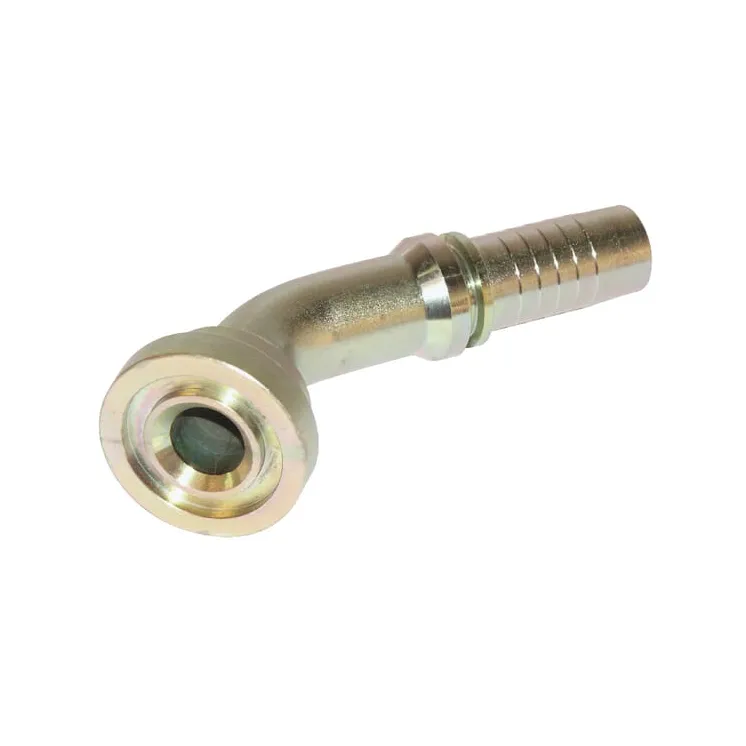

Ieliktnis ar atloku DN20-41.3mm-45° PFS201245

Name: Ieliktnis ar atloku DN20-41.3mm-45° PFS201245
Brand: Alfagomma
SKU: PFS201245
Price: 18.21 EUR
Availability: InStock

Apmaksas iespējas

18,21 €

AR PVN

4-5 Darba dienas

Ieliktnis ar atloku DN20-41.3mm-45° PFS201245 Alfagomma

IR NOLIKTAVĀ

ID: 89203

Apraksts

Part number	PFS201245
EAN
Unit	Each
Product details	OVP-ring or O-ring seal - 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Long description	Application range: 4SP hose Earth-moving machinery Heavy industry Consists of: Swage coupling Without OVP ring or O-ring Properties: Seal with OVP ring or O ring
Surface treatment	Zinc-plated White passivated
Angle	45 °
DConnection 2, centre to end distance	31 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	71.4 mm
Connection no 1 diameter	3/4 Inch
FDConnection no 1 diameter	41.3 mm
Connection no 1 type code	SFS
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Flange outside diameter	41.3 mm
Flange standard pressure series	6000
Material	Steel
Original number equivalent	H1243640-121200
Shape	Elbow - 2 connection sides
