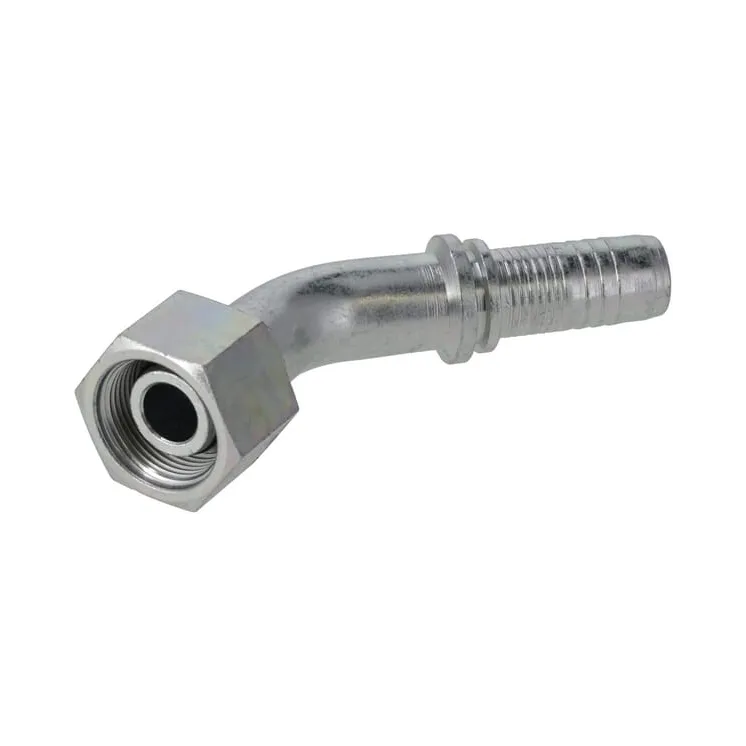

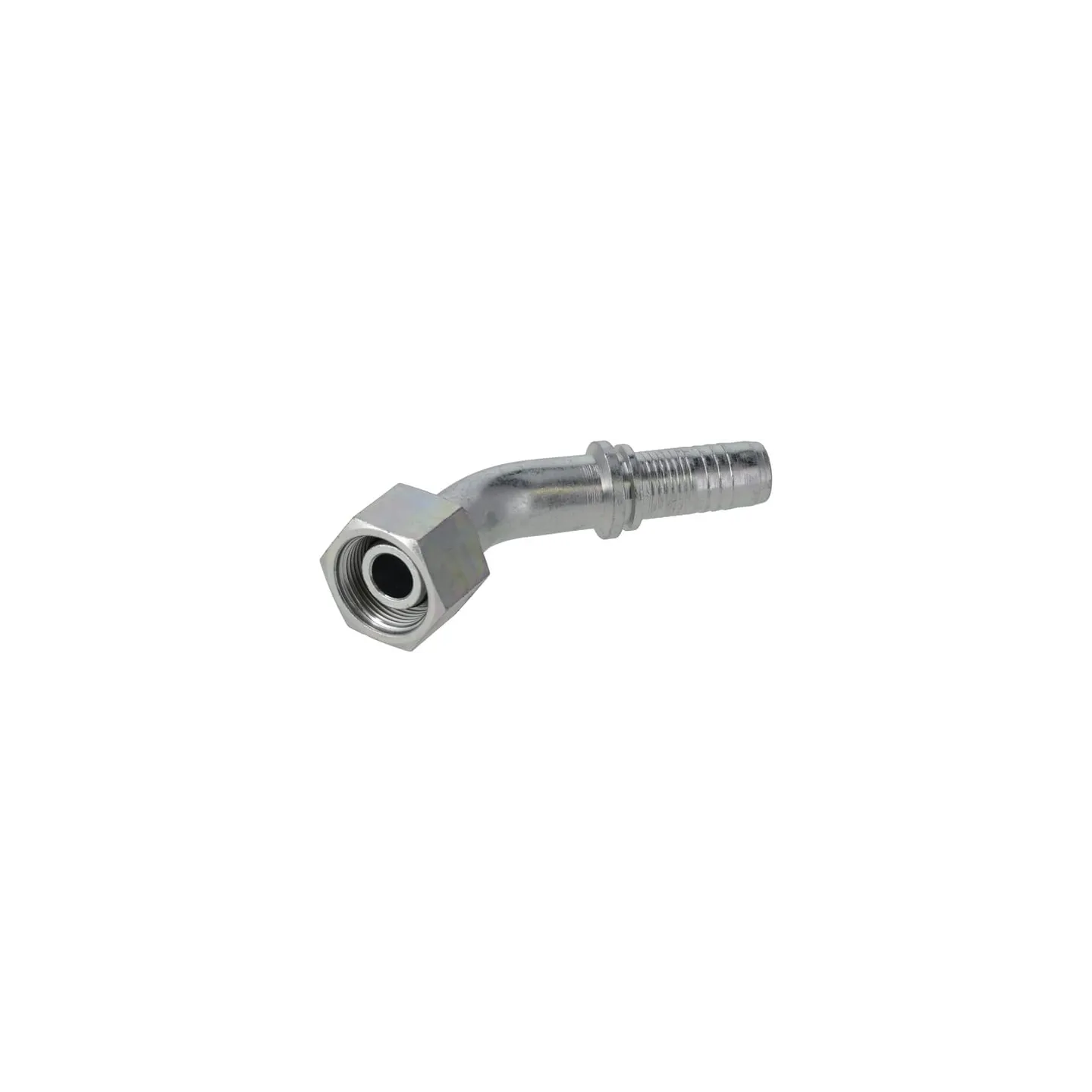

Ievietot DN16-M24x1,5-16S-45° PGSO162445

Name: Ievietot DN16-M24x1,5-16S-45° PGSO162445
Brand: Alfagomma
SKU: PGSO162445
Price: 7.95 EUR
Availability: InStock

Apmaksas iespējas

7,95 €

AR PVN

4-5 Darba dienas

Ievietot DN16-M24x1,5-16S-45° PGSO162445 Alfagomma

IR NOLIKTAVĀ

ID: 89206

Apraksts

Part number	PGSO162445
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Surface treatment	Galvanised White passivated
Angle	45 °
Cone angle	24 °
DConnection 2, centre to end distance	21.5 mm
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	61.1 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M24
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	30.0 mm
Material	Steel
Original number equivalent	H1221642-102400
Series	16S
Shape	Elbow - 2 connection sides
Size code	16
