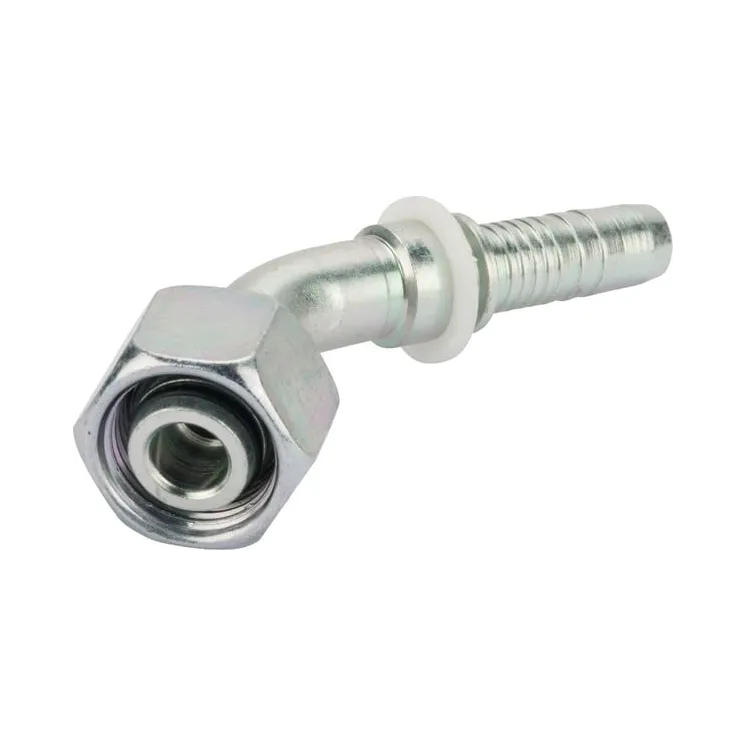

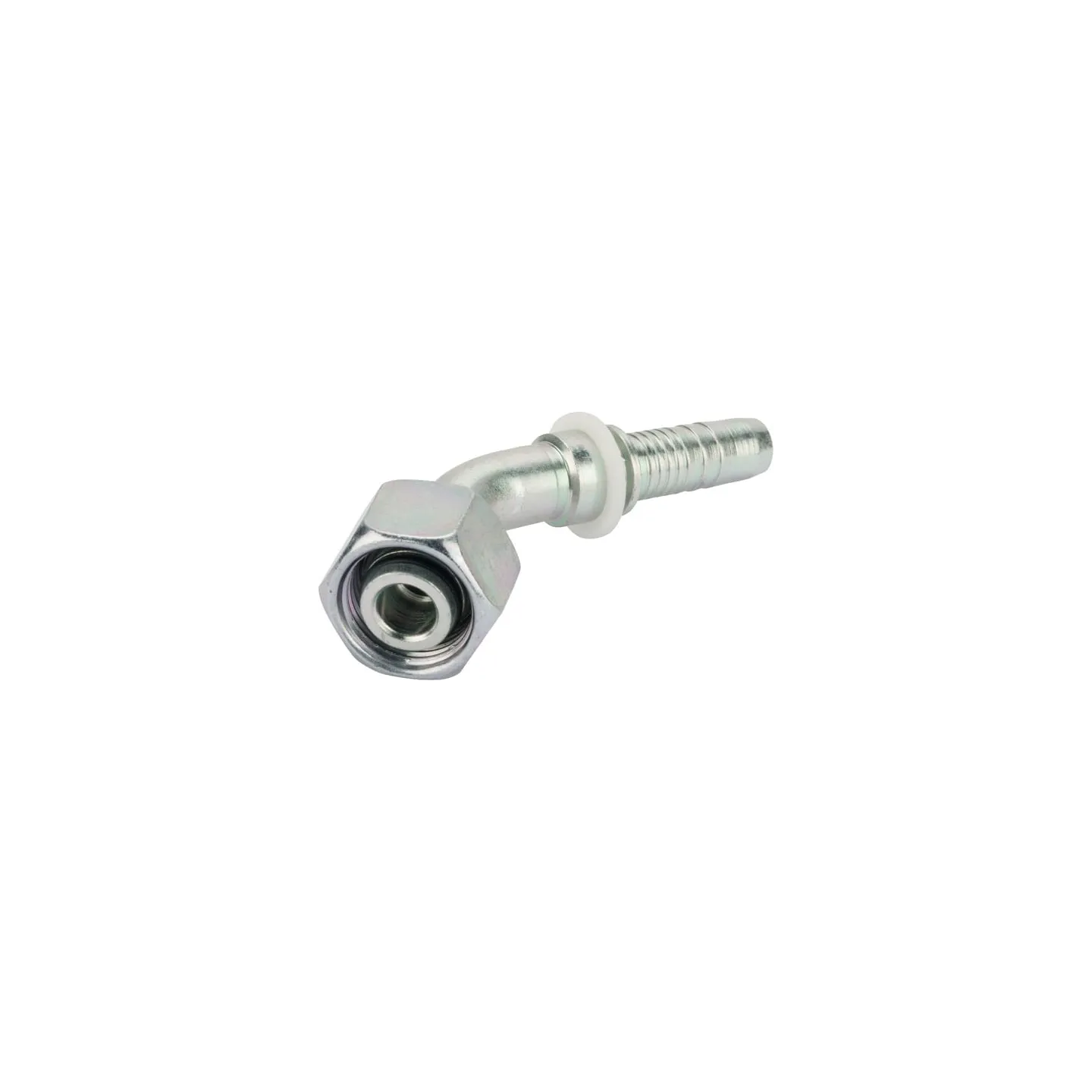

Ievietot DN10-M18x1,5-12L-45° PGLO101845 Alfagomma PGLO101845DB

Ievietot DN10-M18x1,5-12L-45° PGLO101845 PGLO101845DB

Name: Ievietot DN10-M18x1,5-12L-45° PGLO101845 PGLO101845DB
Brand: Alfagomma
SKU: PGLO101845
Price: 3.16 EUR
Availability: InStock

Apmaksas iespējas

3,16 €

AR PVN

4-5 Darba dienas

Ievietot DN10-M18x1,5-12L-45° PGLO101845 Alfagomma PGLO101845DB

IR NOLIKTAVĀ

ID: 89214

Apraksts

Part number	PGLO101845
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M18
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
DConnection 2, centre to end distance	19.5 mm
CConnection centre to insert distance	47 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
Original number equivalent	H1221543-061800
