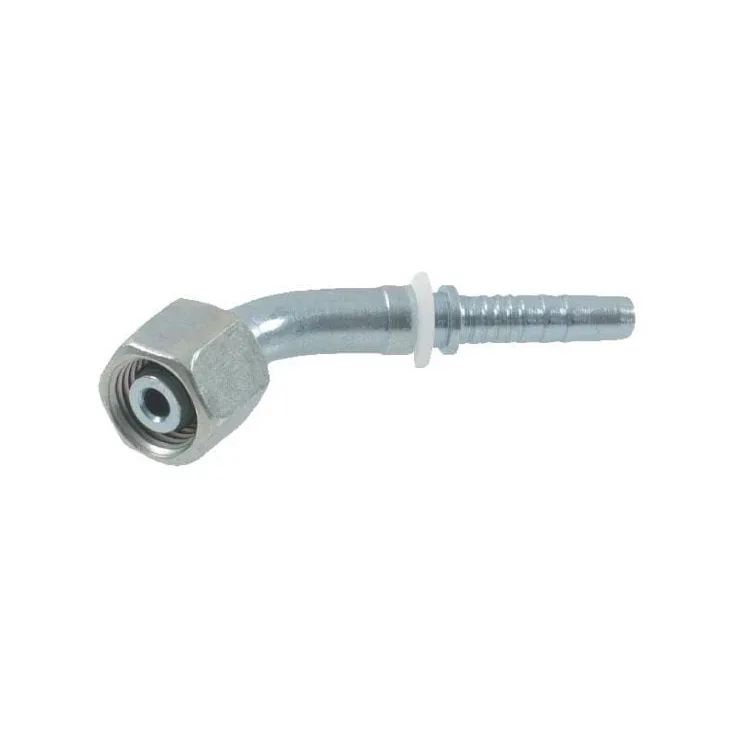

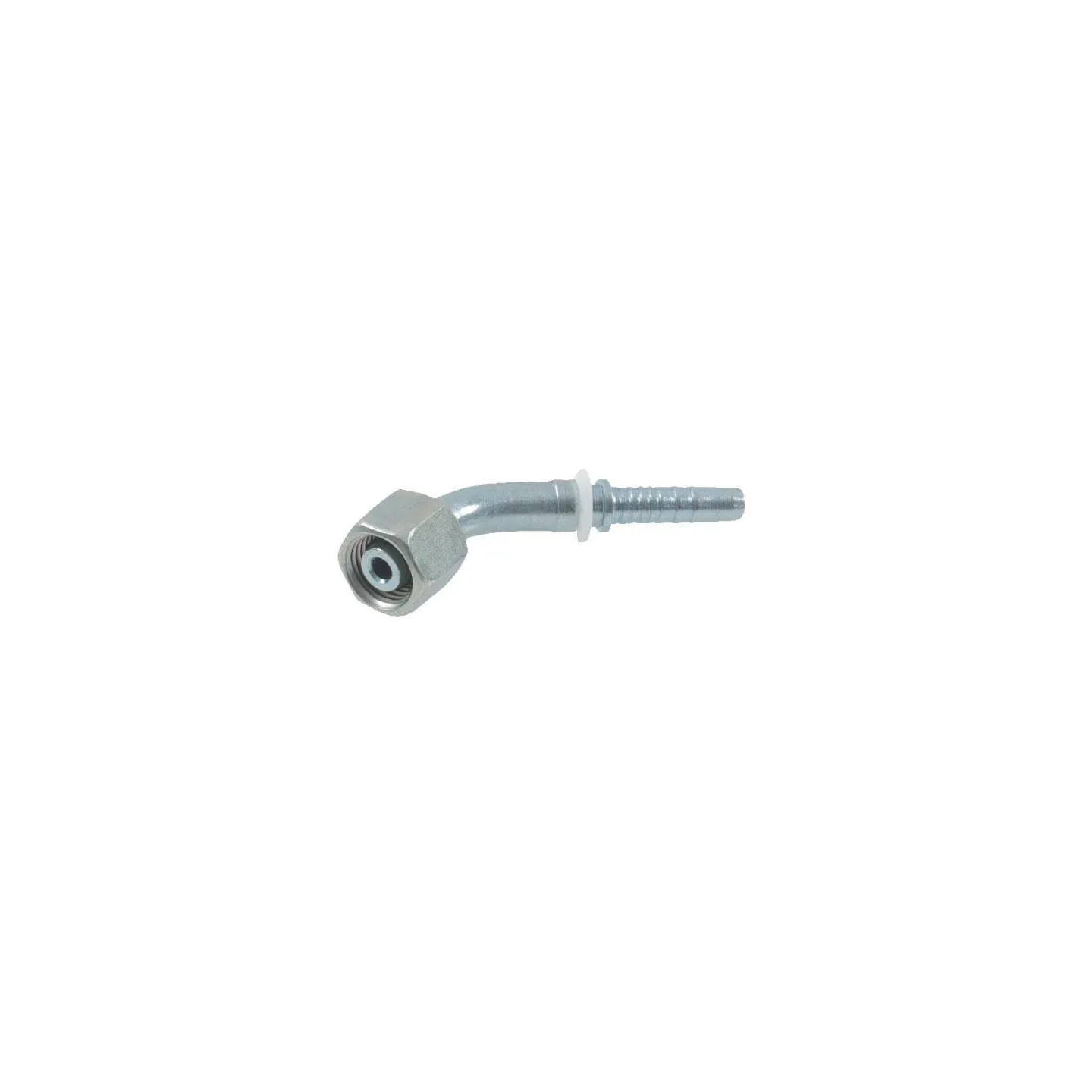

Ievietojiet DN06-M14x1,5-8L-45° PGLO61445

Name: Ievietojiet DN06-M14x1,5-8L-45° PGLO61445
Brand: Alfagomma
SKU: PGLO61445
Price: 2.75 EUR
Availability: InStock

Apmaksas iespējas

2,75 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M14x1,5-8L-45° PGLO61445 Alfagomma

IR NOLIKTAVĀ

ID: 89215

Apraksts

Part number	PGLO61445
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M14
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	17.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	17.5 mm
CConnection centre to insert distance	42.7 mm
Pipe diameter	6 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	8L
Original number equivalent	H1221543-041400
