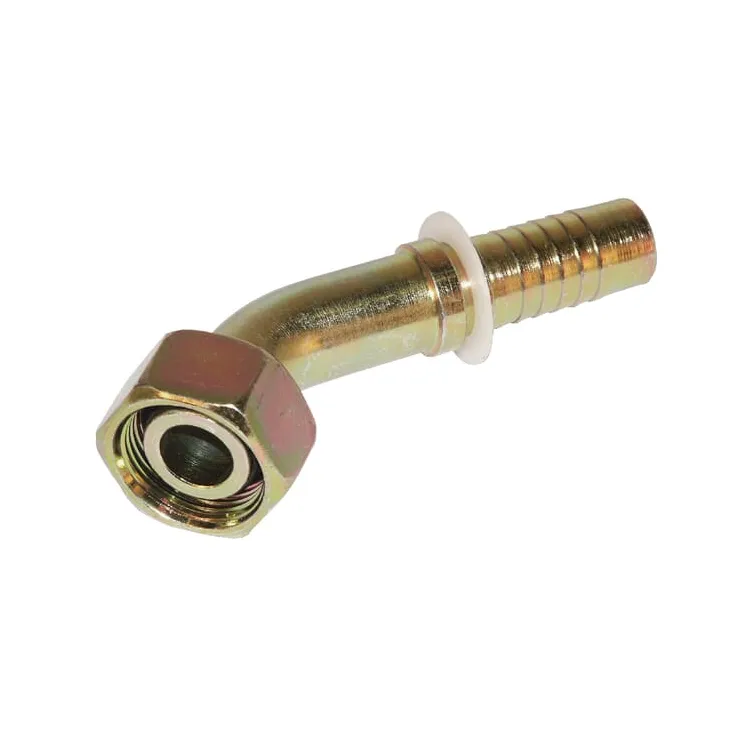

Ievietot DN20-M30x2,0-22L-45° PGLO203045

Name: Ievietot DN20-M30x2,0-22L-45° PGLO203045
Brand: Alfagomma
SKU: PGLO203045
Price: 10.91 EUR
Availability: InStock

Apmaksas iespējas

10,91 €

AR PVN

4-5 Darba dienas

Ievietot DN20-M30x2,0-22L-45° PGLO203045 Alfagomma

IR NOLIKTAVĀ

ID: 89222

Apraksts

Part number	PGLO203045
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M30
Connection no 1 thread pitch	2.00 mm
CH1Connection no 1 wrench size	36.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
DConnection 2, centre to end distance	36.5 mm
CConnection centre to insert distance	76 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	22L
Original number equivalent	H1221543-123000
