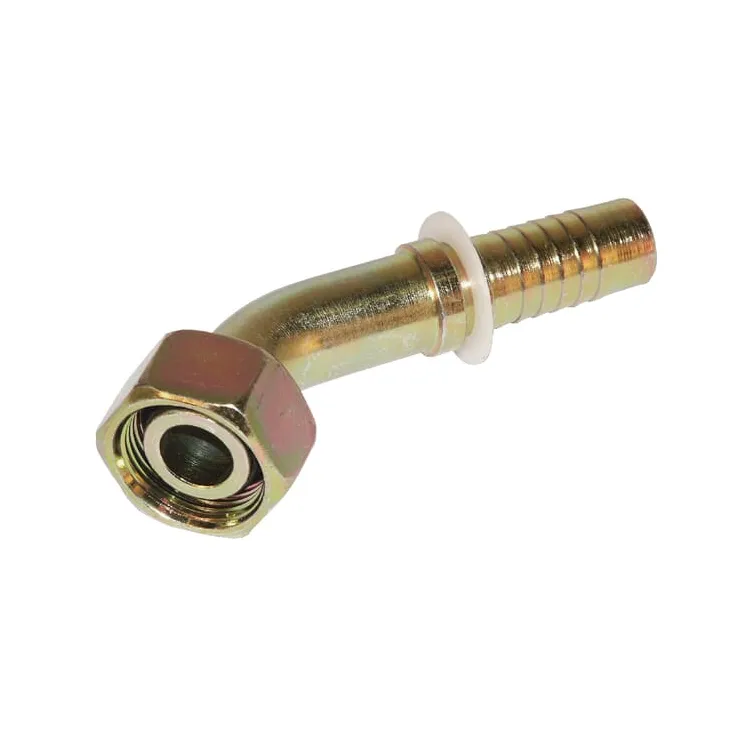

Ievietot DN06-M18x1,5-12L-45° PGLO61845

Name: Ievietot DN06-M18x1,5-12L-45° PGLO61845
Brand: Alfagomma
SKU: PGLO61845
Price: 5.74 EUR
Availability: InStock

Apmaksas iespējas

5,74 €

AR PVN

4-5 Darba dienas

Ievietot DN06-M18x1,5-12L-45° PGLO61845 Alfagomma

IR NOLIKTAVĀ

ID: 89234

Apraksts

Part number	PGLO61845
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M18
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
CH1Connection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	16 mm
CConnection centre to insert distance	43 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
