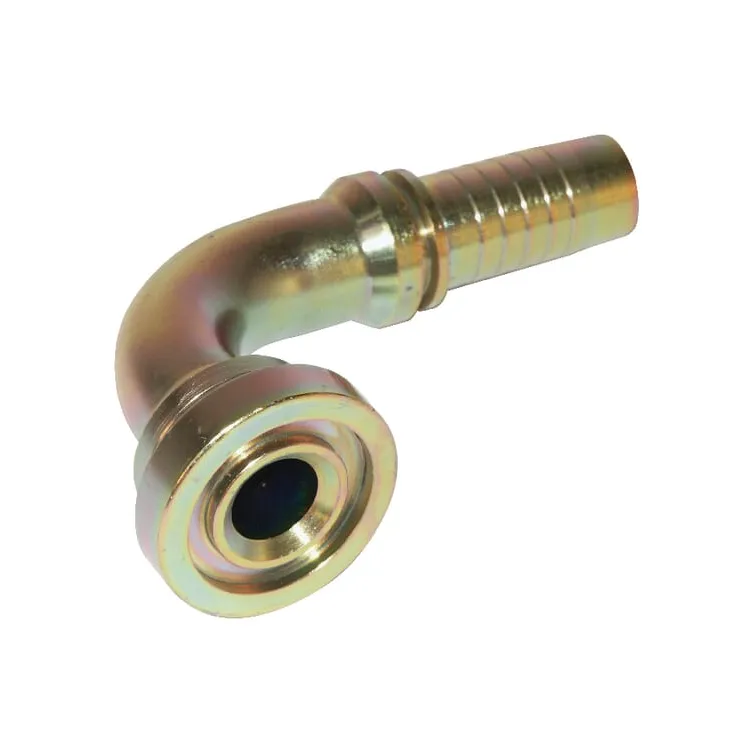

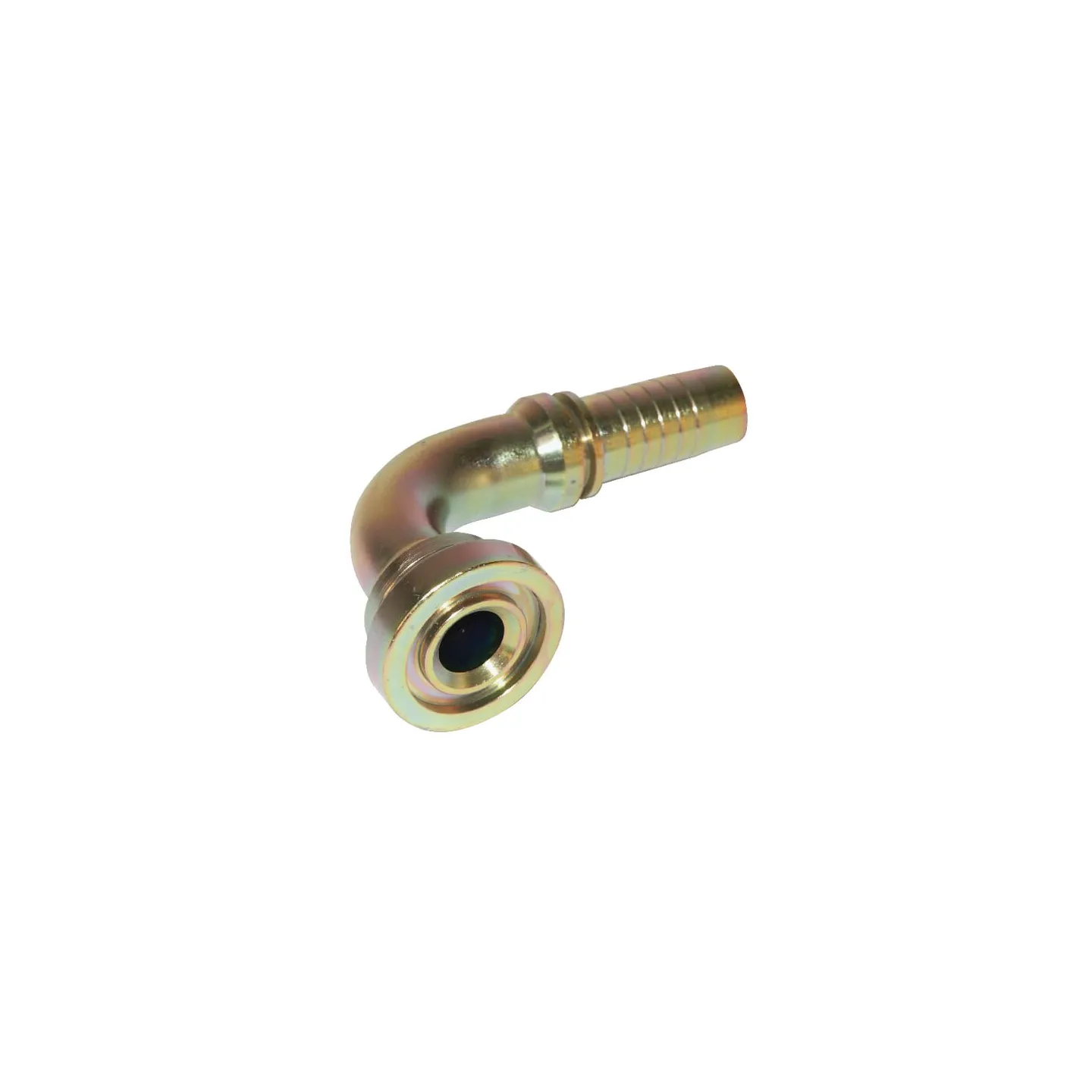

Ieliktnis ar atloku DN20-41.3mm-90° PFS201290

Name: Ieliktnis ar atloku DN20-41.3mm-90° PFS201290
Brand: Alfagomma
SKU: PFS201290
Price: 19.21 EUR
Availability: InStock

Apmaksas iespējas

19,21 €

AR PVN

4-5 Darba dienas

Ieliktnis ar atloku DN20-41.3mm-90° PFS201290 Alfagomma

IR NOLIKTAVĀ

ID: 89239

Apraksts

Part number	PFS201290
EAN
Unit	Each
Product details	OVP-ring or O-ring seal 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Long description	Application range: 4SP hose Earth-moving machinery Heavy industry Consists of: Swage coupling Without OVP ring or O-ring Properties: Seal with OVP ring or O ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	3/4 Inch
Connection no 1 diameter	41.3 mm
CConnection no 1 length	63.2 mm
Connection no 1 type code	SFS
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Flange outside diameter	41.3 mm
Flange standard pressure series	6000
Material	Steel
Original number equivalent	H1243690-121200
Shape	Elbow - 2 connection sides
