Ievietojiet DN06-1/4 BSP-90° PFK6490

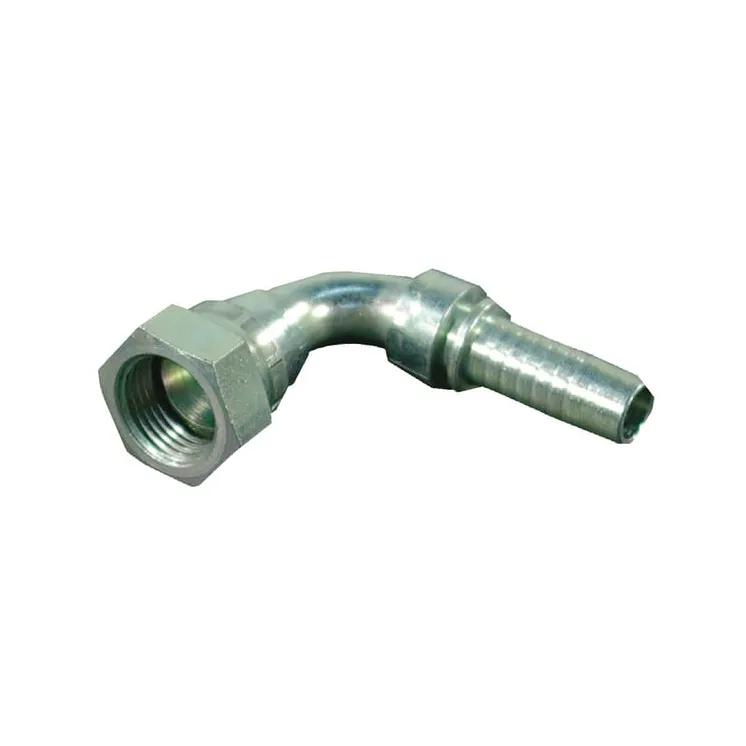

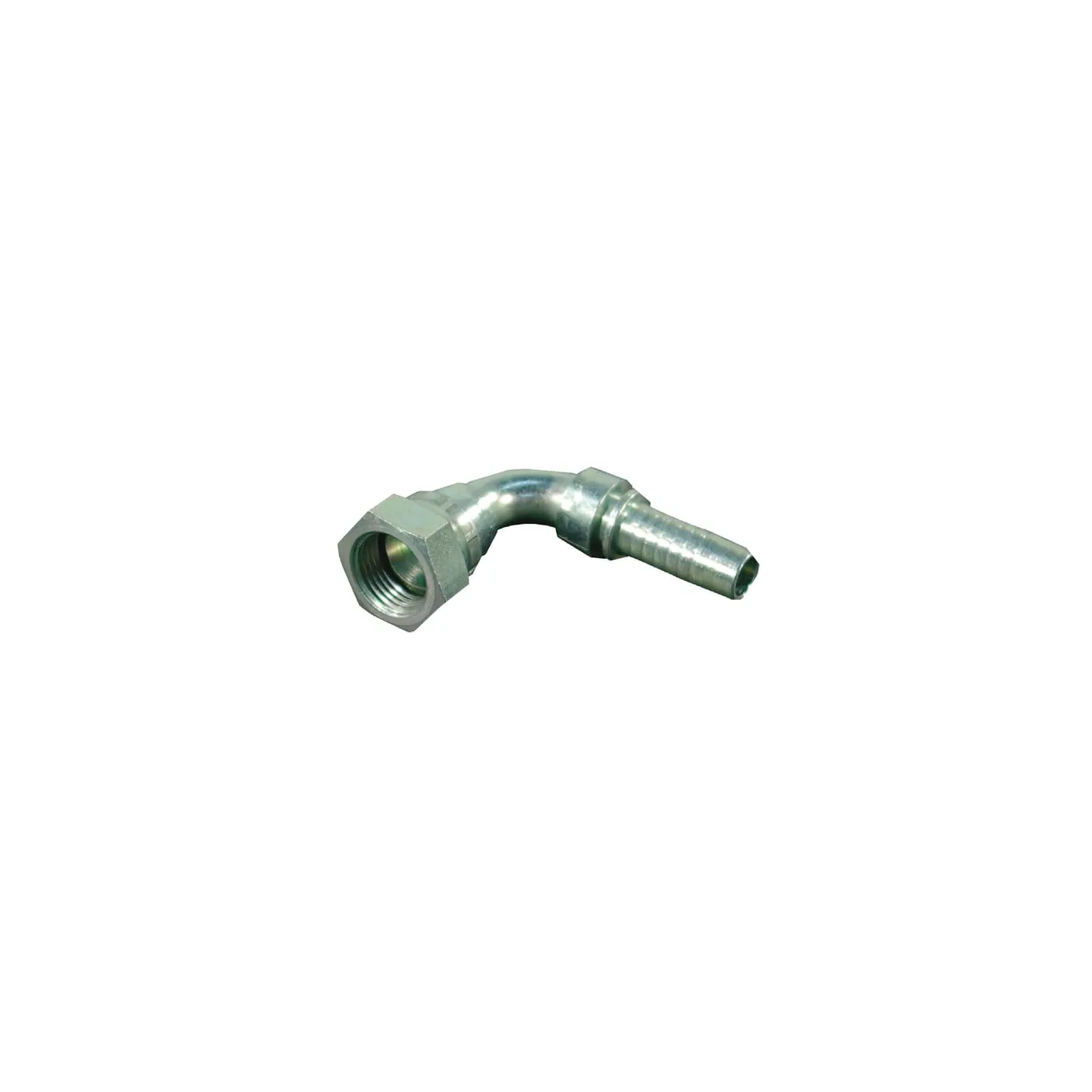

Name: Ievietojiet DN06-1/4 BSP-90° PFK6490
Brand: Alfagomma
SKU: PFK6490
Price: 3.91 EUR
Availability: InStock

Apmaksas iespējas

3,91 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-1/4 BSP-90° PFK6490 Alfagomma

IR NOLIKTAVĀ

ID: 89241

Apraksts

Part number	PFK6490
EAN
Unit	Each
Product details	JIS BSP Cone 60°, negative Seal: metal on metal Toyota machines Standard : B 8363 (type C)
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
DConnection 2, centre to end distance	19 mm
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, length	29.5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	27.7 mm
Connection no 1 thread diameter	1/4 Inch
Connection no 1 thread type	BSP
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	19.0 mm
Material	Steel
Original number equivalent	H122389Z-040400
Shape	Elbow - 2 connection sides
Suitable for brand	Toyota
