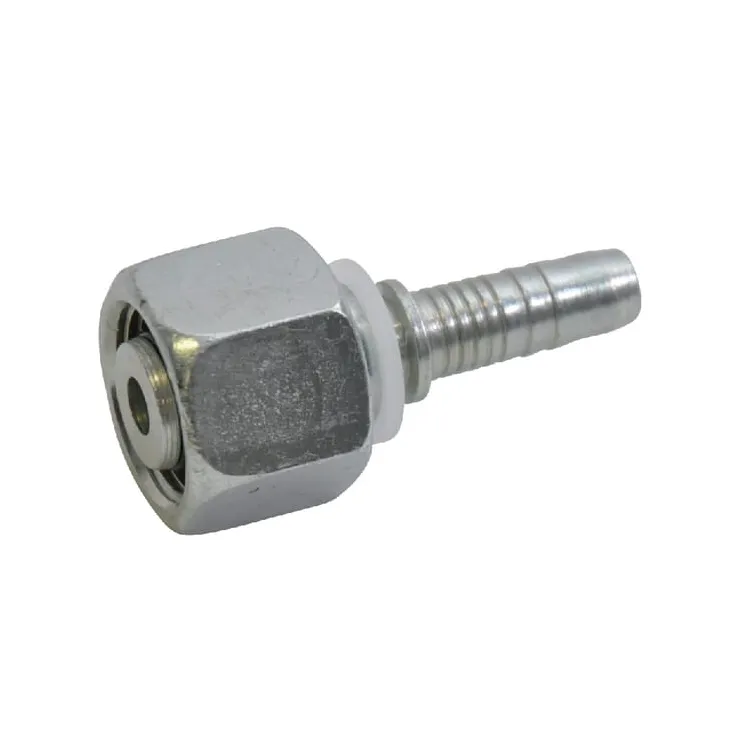

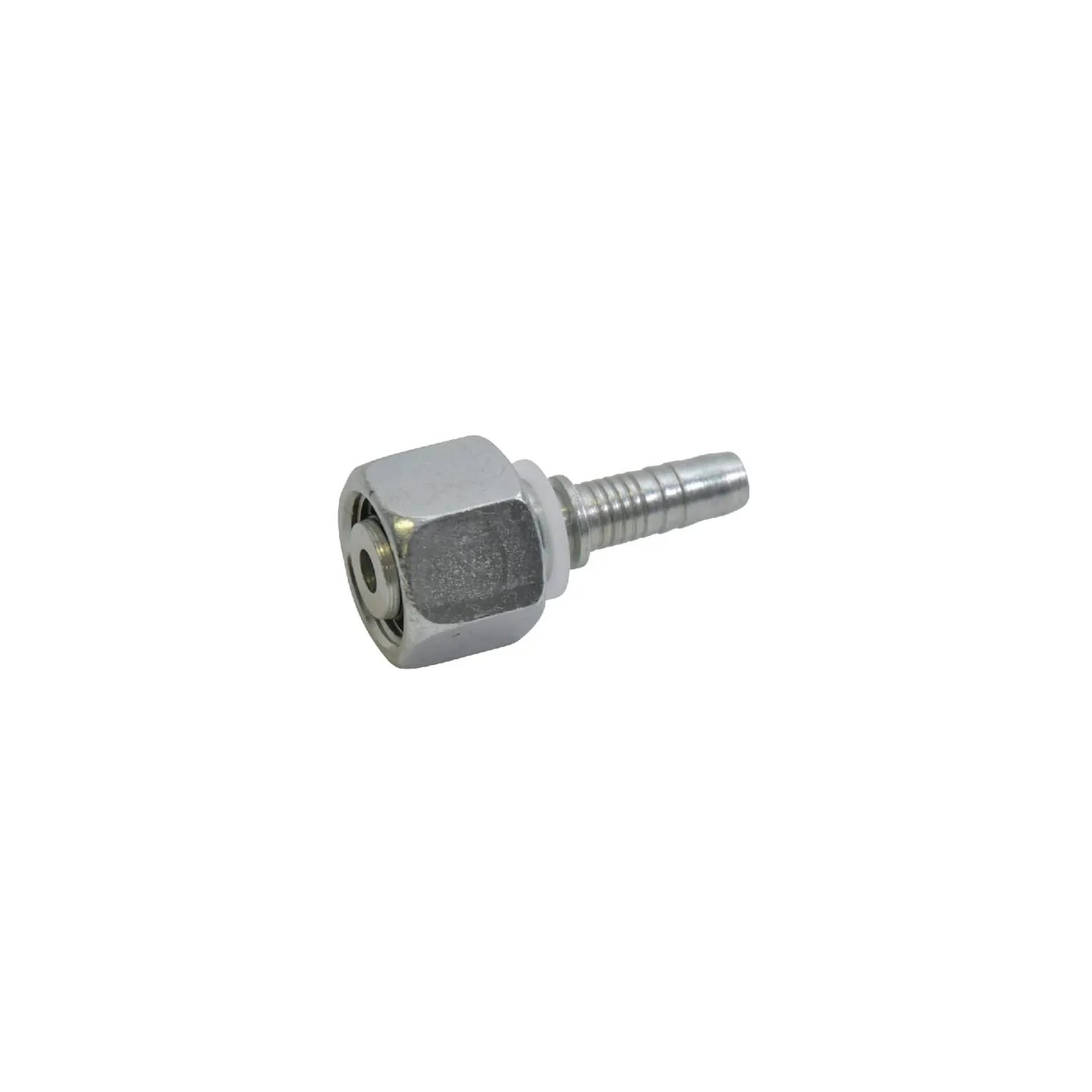

Ievietojiet DN06-M18x1,5-10S PGSO618 PGSO618DB

Name: Ievietojiet DN06-M18x1,5-10S PGSO618 PGSO618DB
Brand: Alfagomma
SKU: PGSO618
Price: 2.02 EUR
Availability: InStock

Apmaksas iespējas

2,02 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M18x1,5-10S PGSO618 Alfagomma PGSO618DB

IR NOLIKTAVĀ

ID: 89257

Apraksts

Part number	PGSO618
EAN	8716106788262
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Cone angle	24 °
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	27.6 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M18
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	22.0 mm
Material	Steel
Series	10S
Shape	Straight - 2 connection sides
