Ievietojiet DN25-M36x2,0-25S-90° PGSO253690

Name: Ievietojiet DN25-M36x2,0-25S-90° PGSO253690
Brand: Alfagomma
SKU: PGSO253690
Price: 27.2 EUR
Availability: InStock

Apmaksas iespējas

27,20 €

AR PVN

4-5 Darba dienas

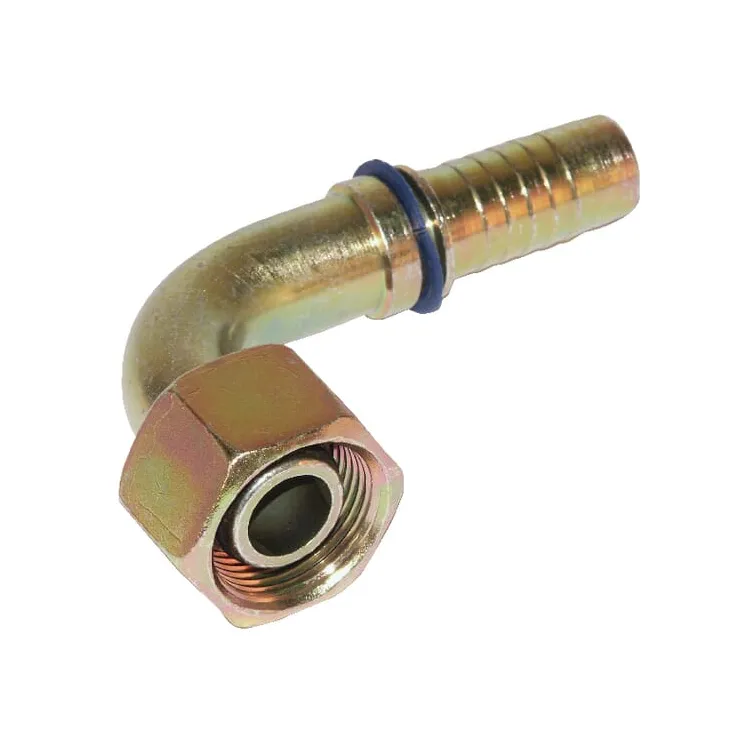

Ievietojiet DN25-M36x2,0-25S-90° PGSO253690 Alfagomma

IR NOLIKTAVĀ

ID: 89271

Apraksts

Part number	PGSO253690
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	73.5 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	77.6 mm
Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M36
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	46.0 mm
Material	Steel
Original number equivalent	H1221693-163600
Series	25S
Shape	Elbow - 2 connection sides
