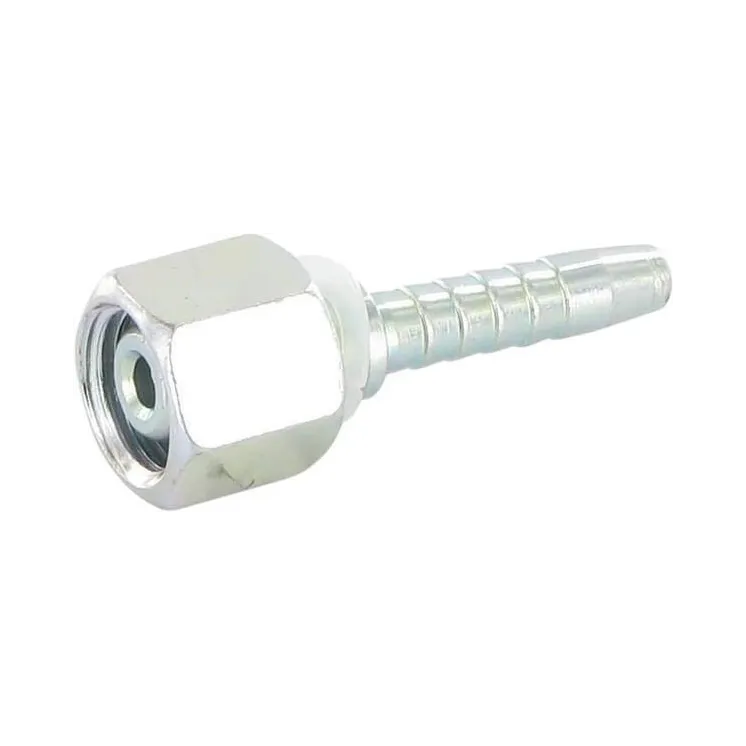

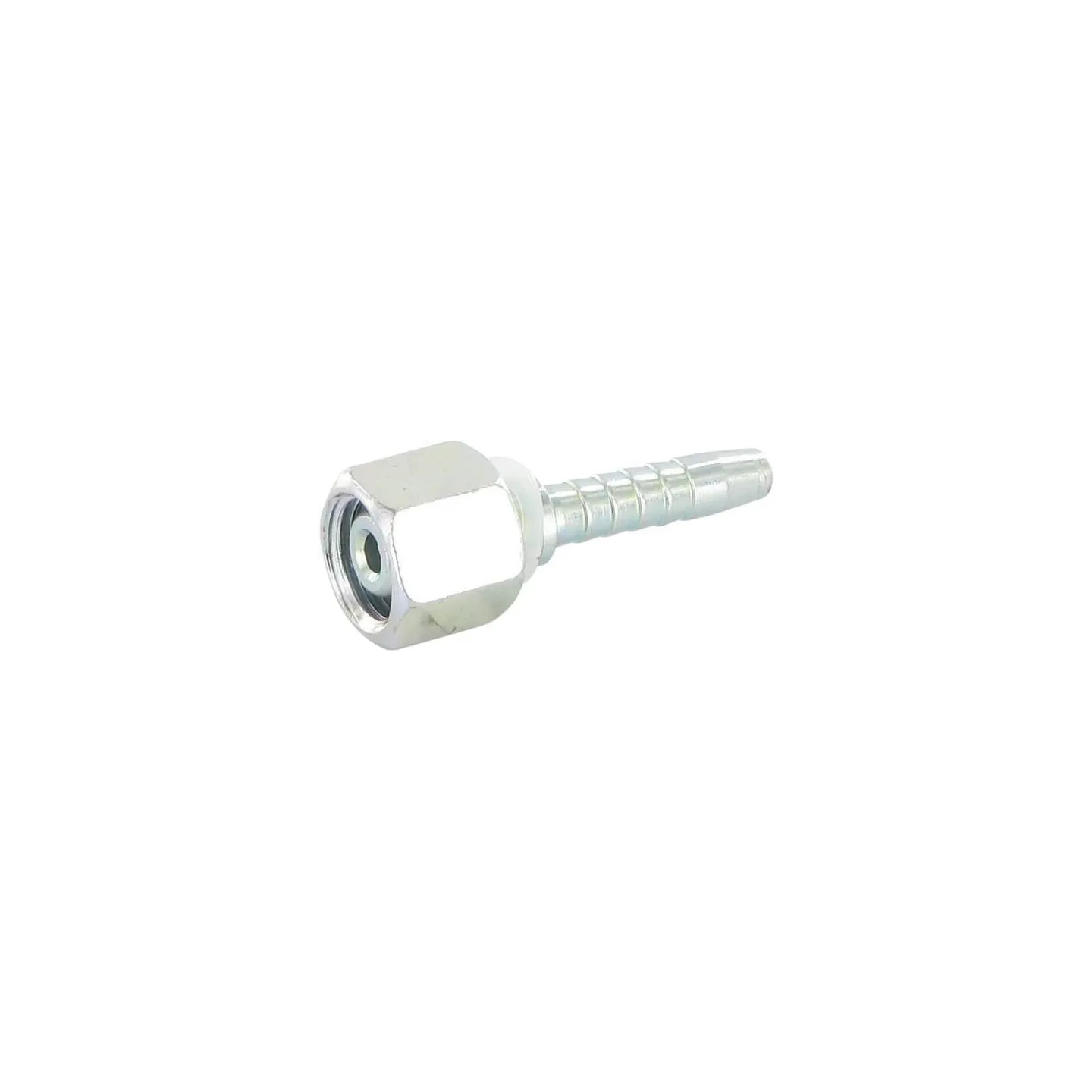

Ievietojiet DN06-M14x1,5-8L PGL614 DKM614 PGL614DB

Name: Ievietojiet DN06-M14x1,5-8L PGL614 DKM614 PGL614DB
Brand: Alfagomma
SKU: PGL614
Price: 1.27 EUR
Availability: InStock

Apmaksas iespējas

1,27 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M14x1,5-8L PGL614 Alfagomma DKM614 PGL614DB

IR NOLIKTAVĀ

ID: 89289

Apraksts

Part number	PGL614
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
LConnection no 1 center to end distance	47 mm
Connection no 1 length	20 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M14
Connection no 1 type code	DKM
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	17.0 mm
Material	Steel
Series	8L
Shape	Straight - 2 connection sides
