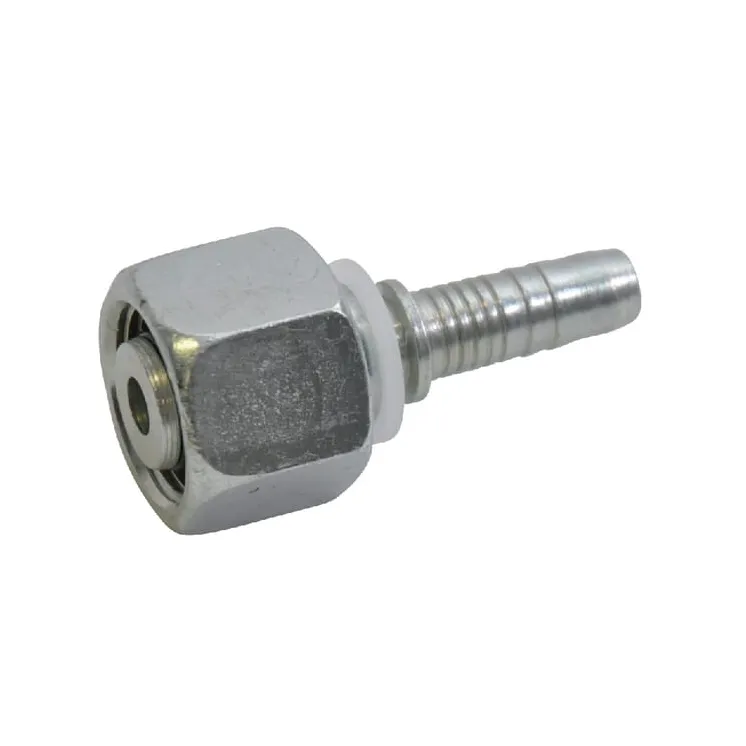

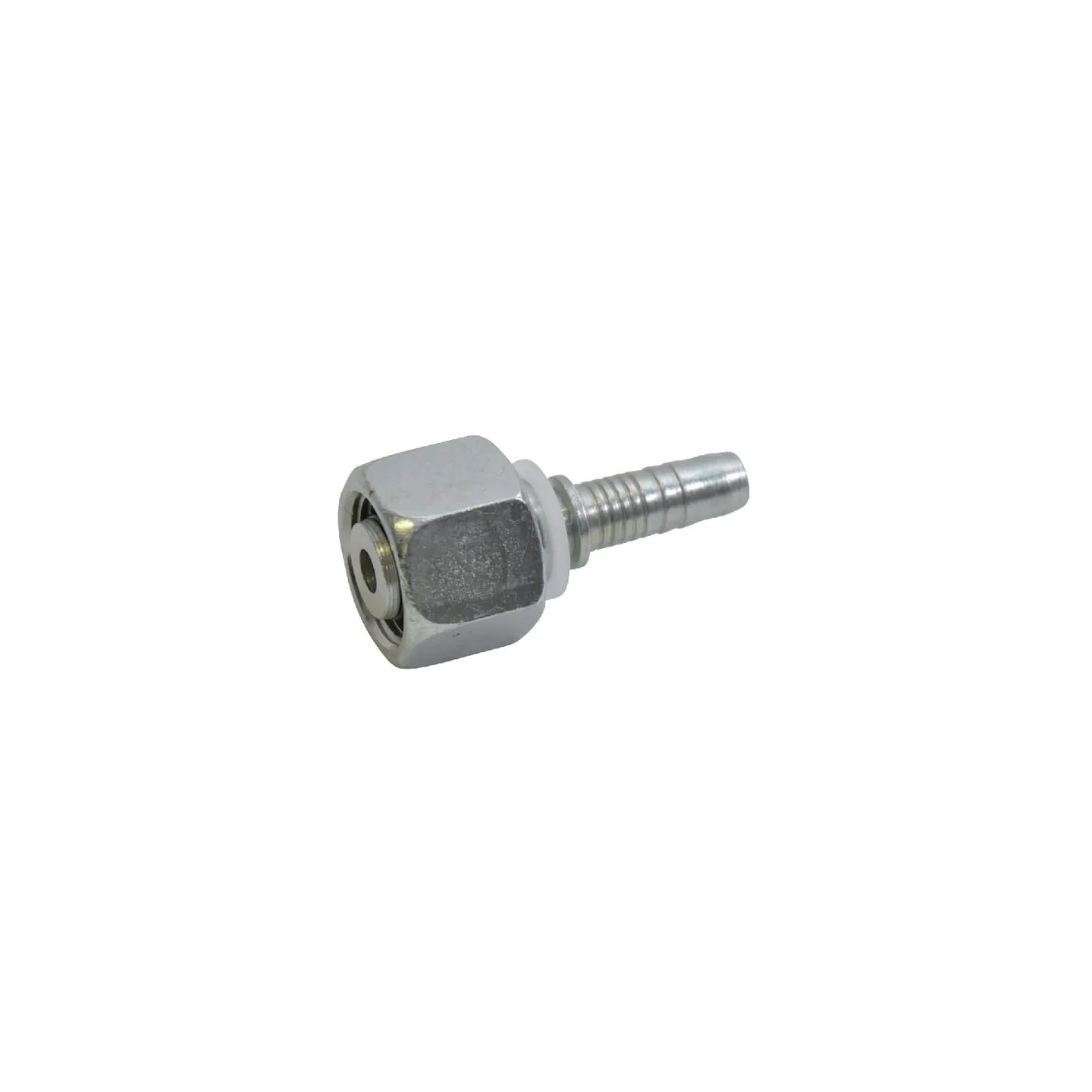

Ievietojiet DN06-M14x1,5-6S PGSO614

Name: Ievietojiet DN06-M14x1,5-6S PGSO614
Brand: Alfagomma
SKU: PGSO614
Price: 1.79 EUR
Availability: InStock

Apmaksas iespējas

1,79 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M14x1,5-6S PGSO614 Alfagomma

IR NOLIKTAVĀ

ID: 89304

Apraksts

Part number	PGSO614
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Surface treatment	Zinc-plated White passivated
Cone angle	24 °
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	26.4 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M14
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	17.0 mm
Material	Steel
Series	6S
Shape	Straight - 2 connection sides
