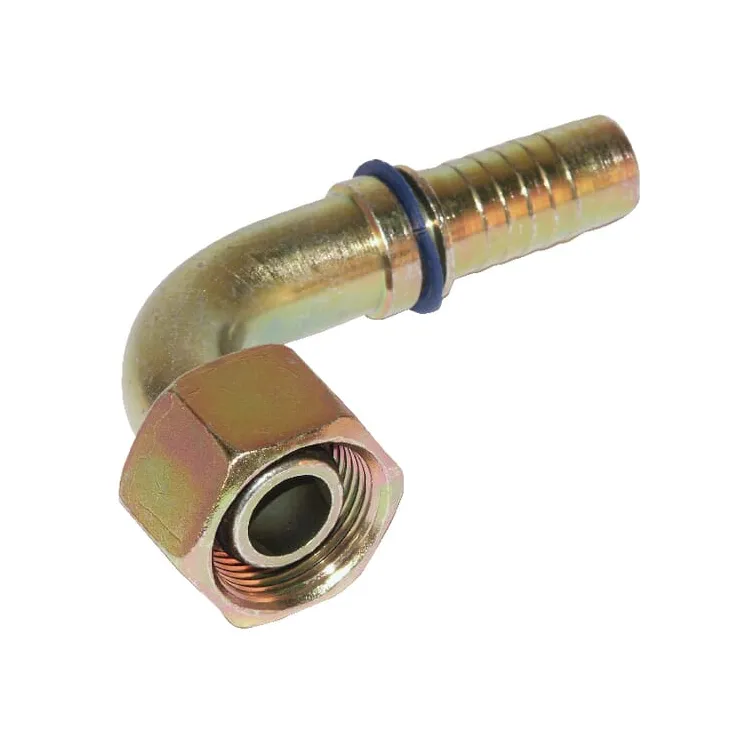

Ievietojiet DN20-M30x2,0-20S-90° PGSO203090

Name: Ievietojiet DN20-M30x2,0-20S-90° PGSO203090
Brand: Alfagomma
SKU: PGSO203090
Price: 13.72 EUR
Availability: InStock

Apmaksas iespējas

13,72 €

AR PVN

4-5 Darba dienas

Ievietojiet DN20-M30x2,0-20S-90° PGSO203090 Alfagomma

IR NOLIKTAVĀ

ID: 89309

Apraksts

Part number	PGSO203090
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	58 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	50.6 mm
Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M30
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	36.0 mm
Material	Steel
Original number equivalent	H1221693-123000
Series	20S
Shape	Elbow - 2 connection sides
