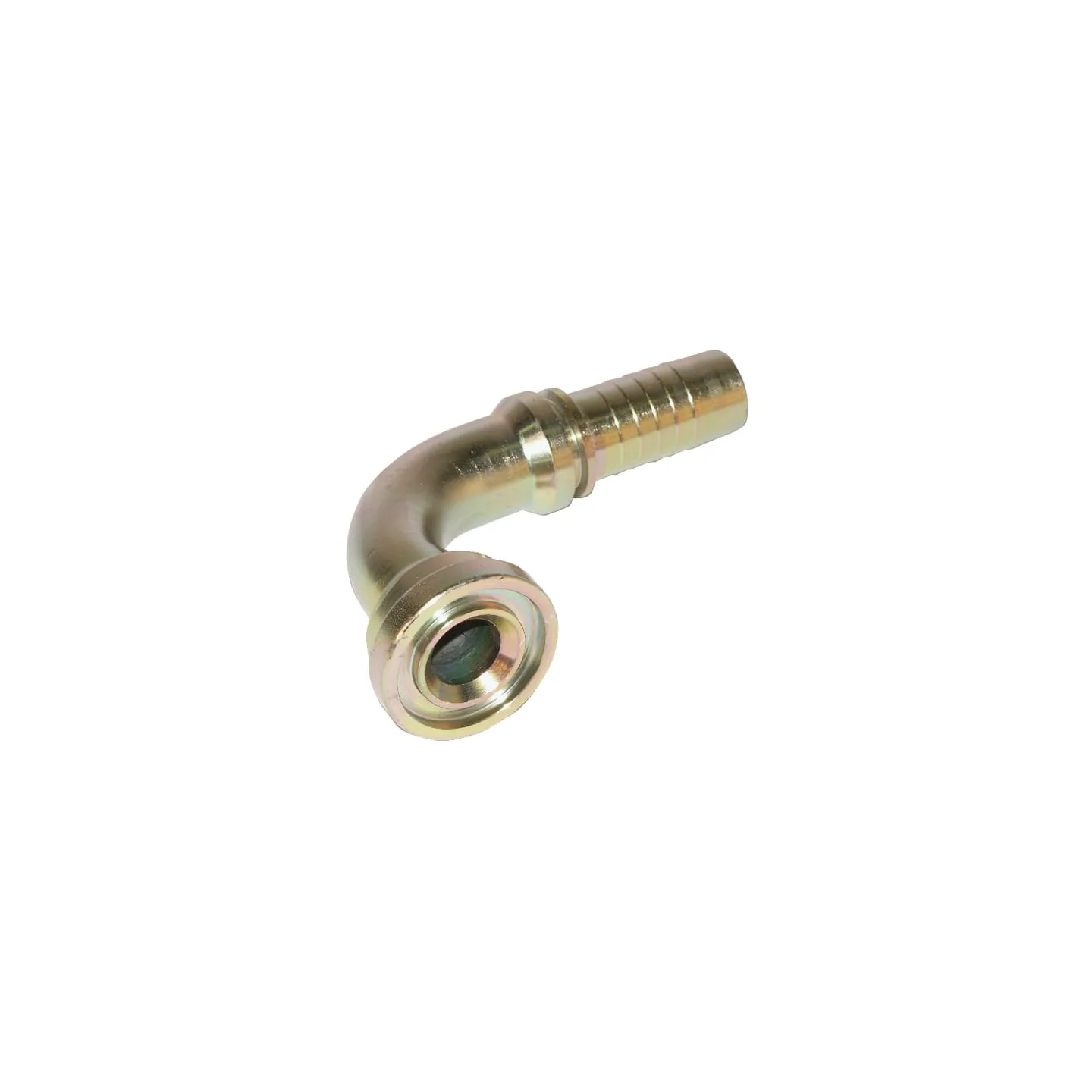

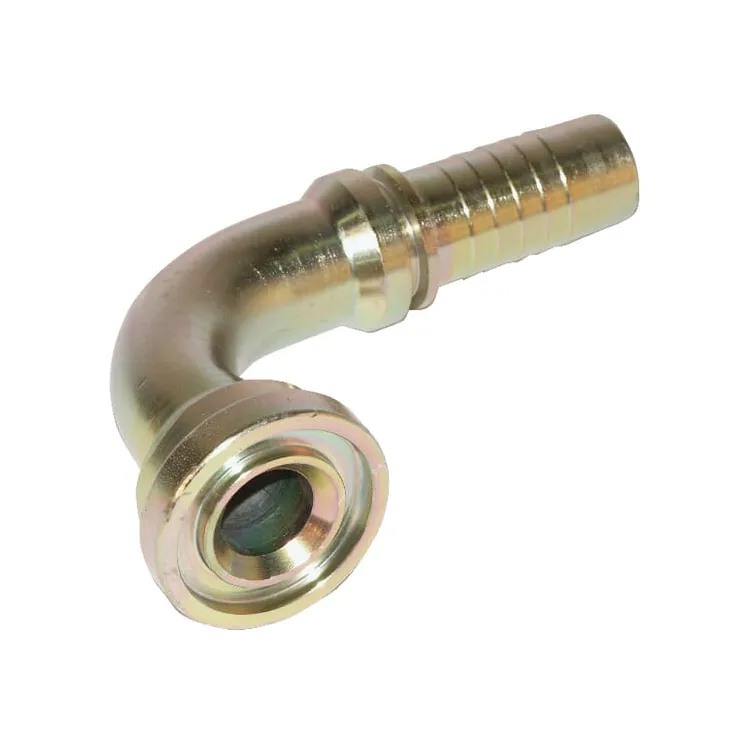

Ieliktnis ar atloku DN32-60.3mm-90° PFL322490

Name: Ieliktnis ar atloku DN32-60.3mm-90° PFL322490
Brand: Alfagomma
SKU: PFL322490
Price: 42.24 EUR
Availability: InStock

Apmaksas iespējas

42,24 €

AR PVN

4-5 Darba dienas

Ieliktnis ar atloku DN32-60.3mm-90° PFL322490 Alfagomma

IR NOLIKTAVĀ

ID: 89324

Apraksts

Part number	PFL322490
EAN
Unit	Each
Product details	OVP-ring or O-ring seal - 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	31 mm
Connection 2, length	87.5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1-1/2 Inch
Connection no 1 diameter	60.3 mm
CConnection no 1 length	91.5 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Flange outside diameter	60.3 mm
Flange standard pressure series	3000
Material	Steel
Original number equivalent	H1243390-202400
Shape	Elbow - 2 connection sides
