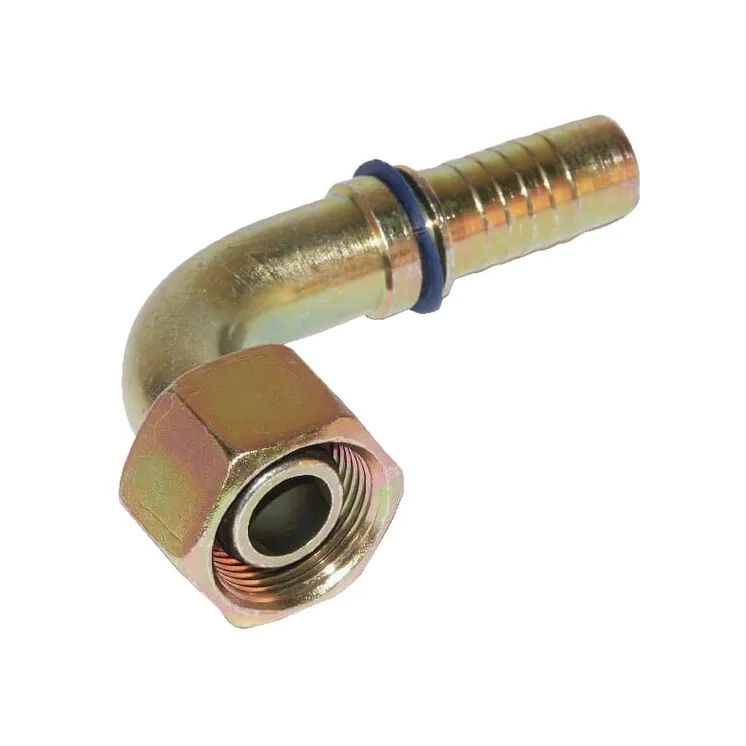

Ievietojiet DN10-M18x1,5-10S-90° PGSO101890

Name: Ievietojiet DN10-M18x1,5-10S-90° PGSO101890
Brand: Alfagomma
SKU: PGSO101890
Price: 12.18 EUR
Availability: BackOrder

Apmaksas iespējas

12,18 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN10-M18x1,5-10S-90° PGSO101890 Alfagomma

Uz pasūtījumu

ID: 89336

Apraksts

Part number	PGSO101890
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	34.3 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	34.3 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M18
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	22.0 mm
Material	Steel
Original number equivalent	H1221693-0618B0
Series	10S
Shape	Elbow - 2 connection sides
