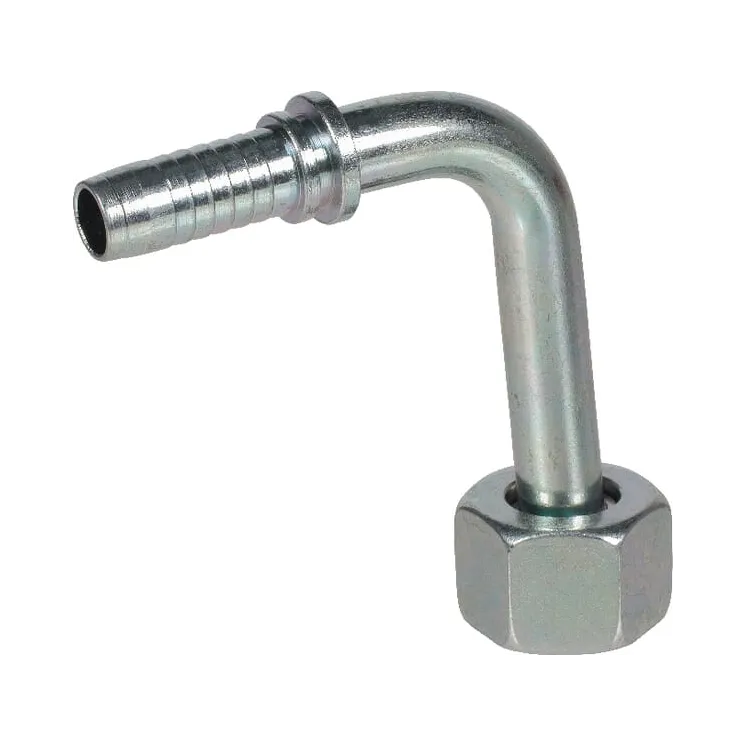

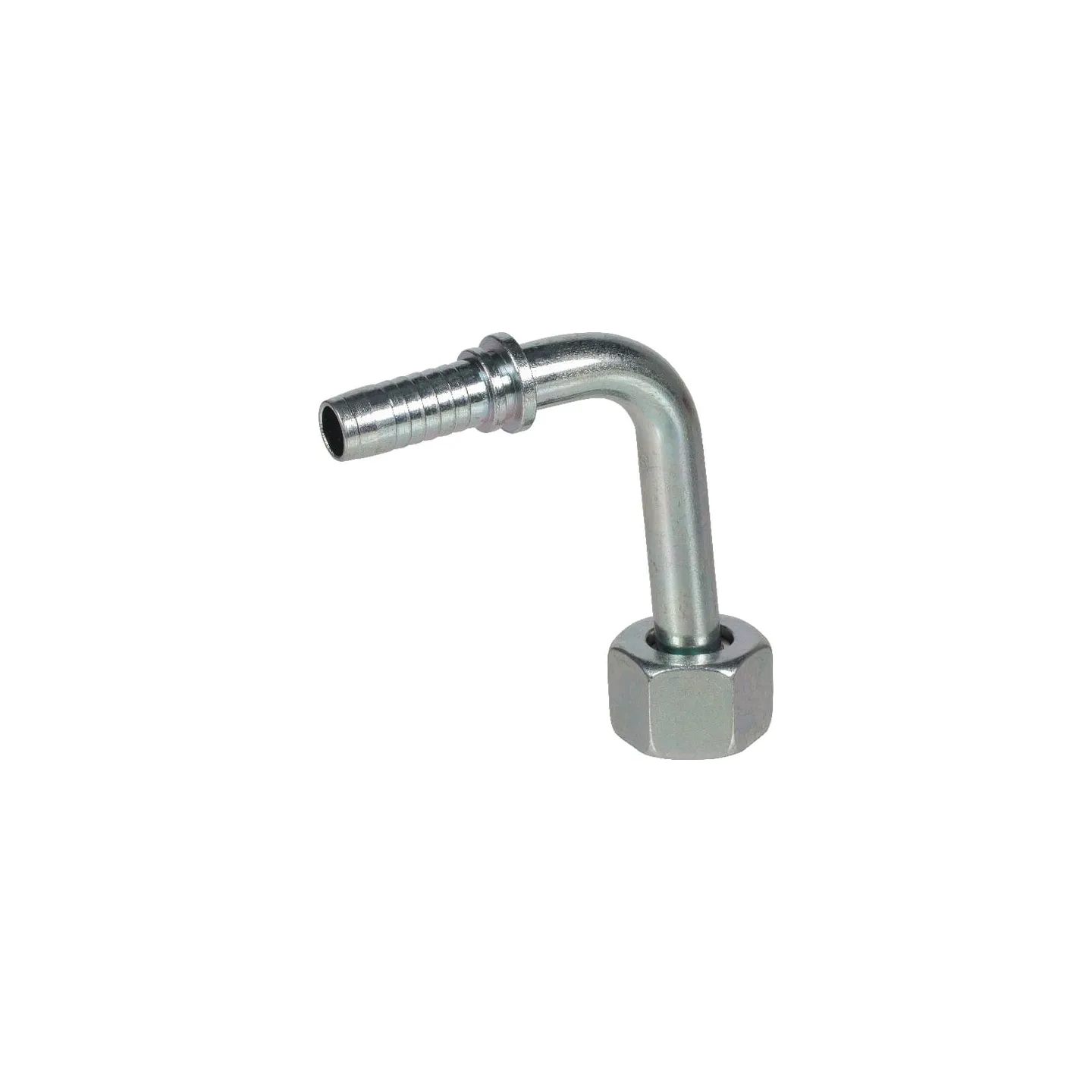

Ievietot DN13-M24x1,5-16S-90° PGSO132490H85

Name: Ievietot DN13-M24x1,5-16S-90° PGSO132490H85
Brand: Alfagomma
SKU: PGSO132490H85
Price: 11.3 EUR
Availability: InStock

Apmaksas iespējas

11,30 €

AR PVN

4-5 Darba dienas

Ievietot DN13-M24x1,5-16S-90° PGSO132490H85 Alfagomma

IR NOLIKTAVĀ

ID: 89368

Apraksts

Part number	PGSO132490H85
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	85 mm
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	40 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M24
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	30.0 mm
Material	Steel
Series	16S
Shape	Elbow - 2 connection sides
