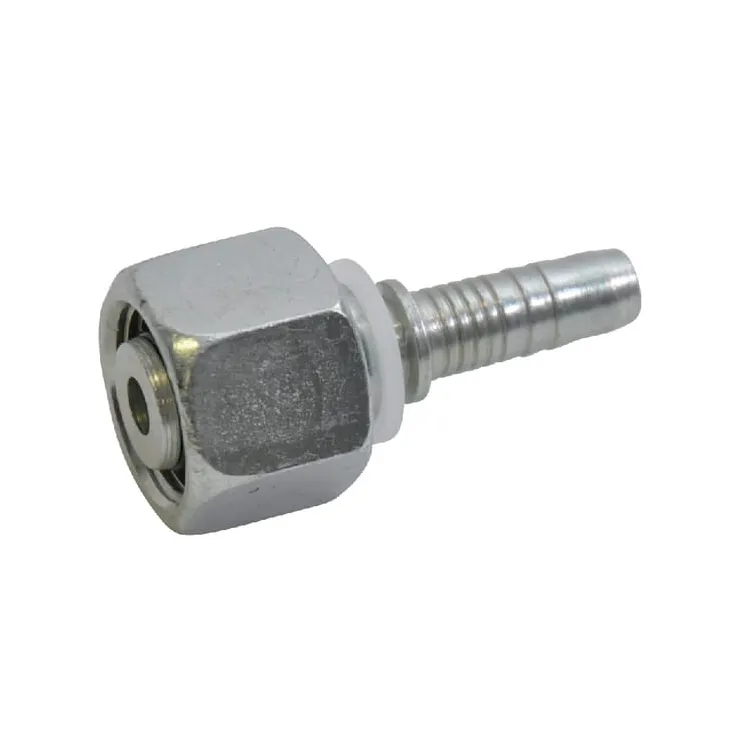

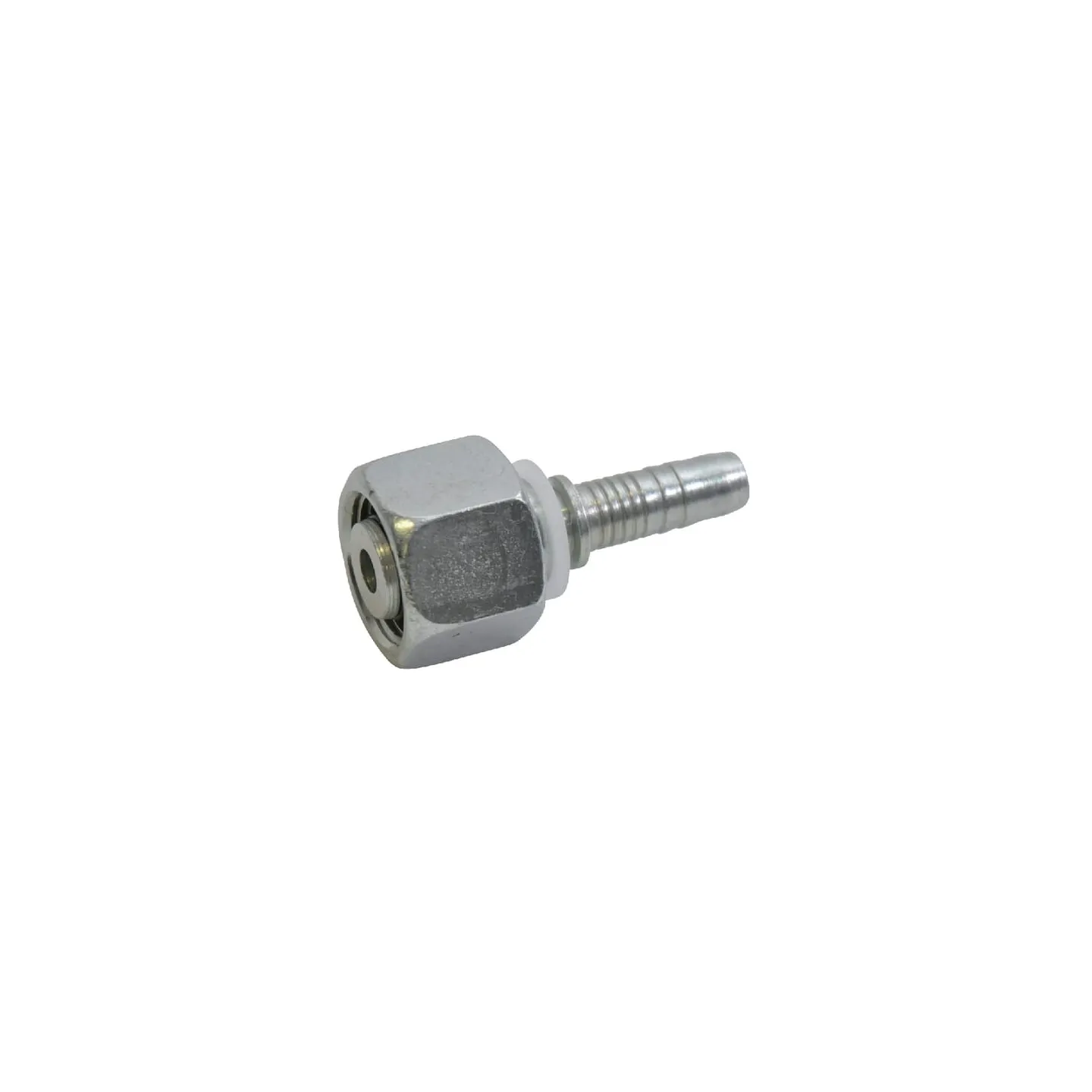

Ievietojiet DN08-M20x1,5-12S PGSO820 PGSO820DB

Name: Ievietojiet DN08-M20x1,5-12S PGSO820 PGSO820DB
Brand: Alfagomma
SKU: PGSO820
Price: 2.32 EUR
Availability: InStock

Apmaksas iespējas

2,32 €

AR PVN

4-5 Darba dienas

Ievietojiet DN08-M20x1,5-12S PGSO820 Alfagomma PGSO820DB

IR NOLIKTAVĀ

ID: 89375

Apraksts

Part number	PGSO820
EAN	8716106787135
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Cone angle	24 °
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	27.6 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M20
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	24.0 mm
Material	Steel
Series	12S
Shape	Straight - 2 connection sides
