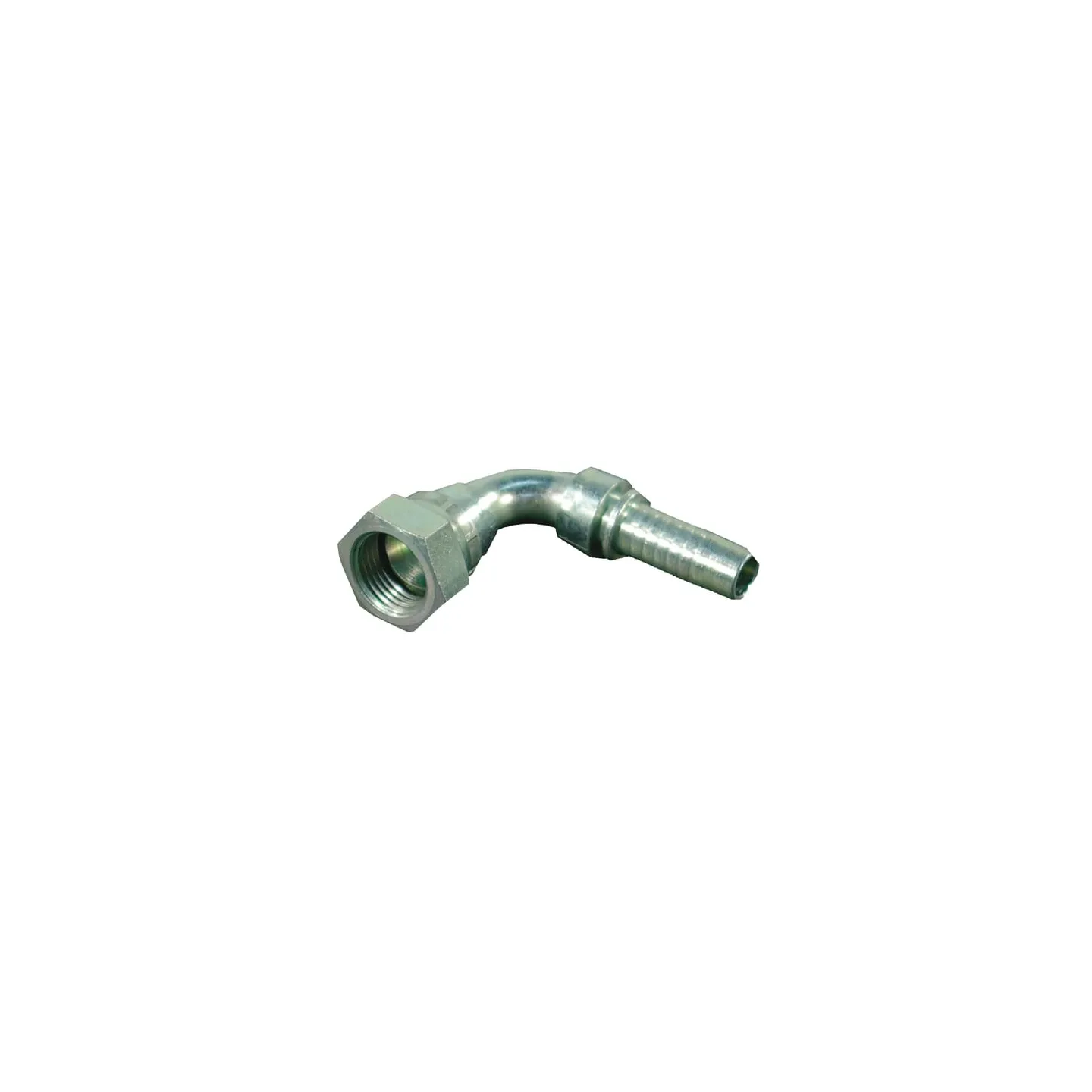

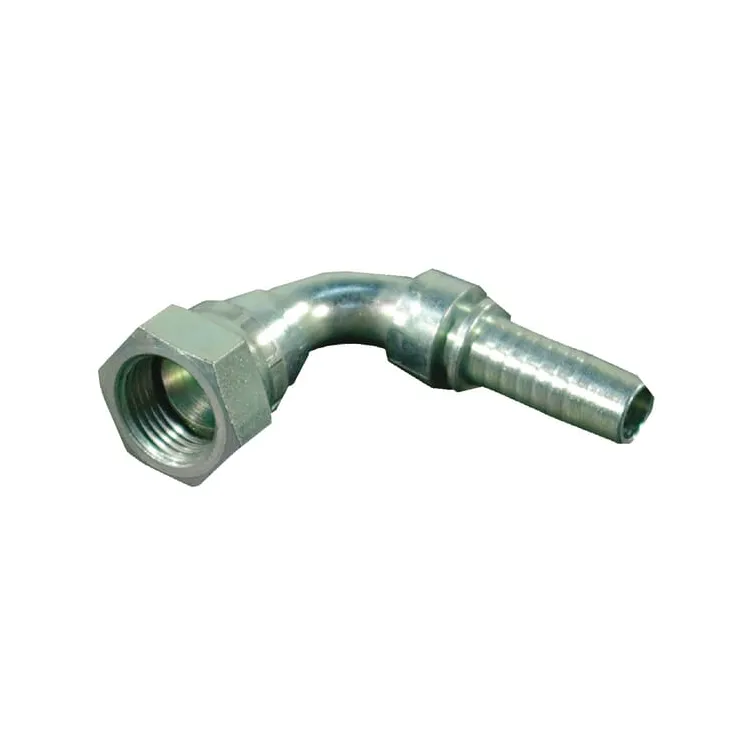

Ievietojiet DN10-3/8 BSP-90° PFK10690

Name: Ievietojiet DN10-3/8 BSP-90° PFK10690
Brand: Alfagomma
SKU: PFK10690
Price: 9.05 EUR
Availability: InStock

Apmaksas iespējas

9,05 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-3/8 BSP-90° PFK10690 Alfagomma

IR NOLIKTAVĀ

ID: 89380

Apraksts

Part number	PFK10690
EAN
Unit	Each
Product details	JIS BSP Cone 60°, negative Seal: metal on metal Toyota machines Standard : B 8363 (type C)
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
DConnection 2, centre to end distance	33.8 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, length	33 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	31.8 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	22.0 mm
Height	22 mm
Material	Steel
Original number equivalent	H122389Z-060600
Shape	Elbow - 2 connection sides
Suitable for brand	Toyota
