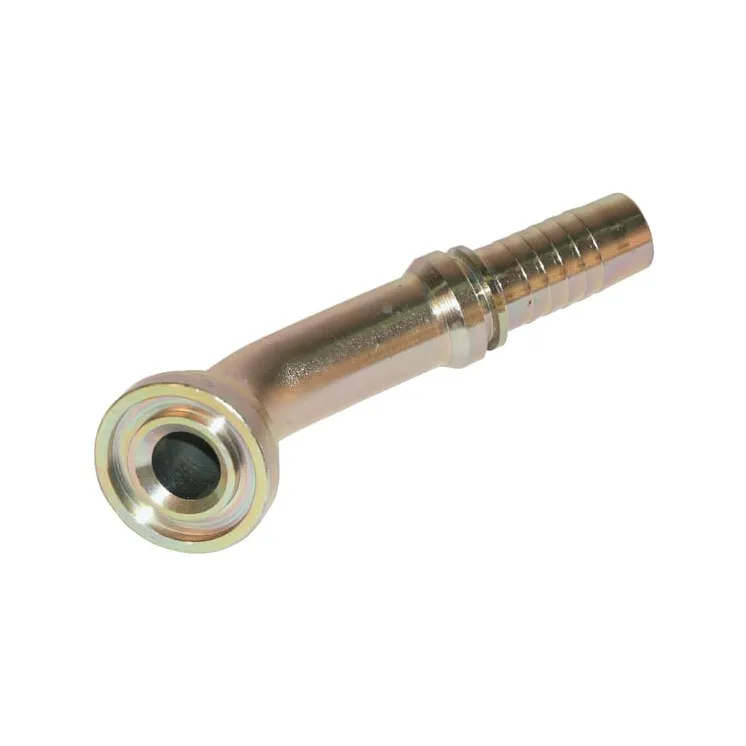

Ieliktnis ar atloku DN32-50,8mm-30° PFL322030

Name: Ieliktnis ar atloku DN32-50,8mm-30° PFL322030
Brand: Alfagomma
SKU: PFL322030
Price: 47.6 EUR
Availability: InStock

Apmaksas iespējas

47,60 €

AR PVN

4-5 Darba dienas

Ieliktnis ar atloku DN32-50,8mm-30° PFL322030 Alfagomma

IR NOLIKTAVĀ

ID: 89381

Apraksts

Part number	PFL322030
EAN
Unit	Each
Product details	OVP-ring or O-ring seal - 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	30 °
HConnection 2, centre to end distance	12 mm
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	32 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	74.3 mm
Connection no 1 diameter	1-1/4 Inch
DConnection no 1 diameter	50.8 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	50.8 mm
Flange standard pressure series	3000
Material	Steel
Original number equivalent	H1243330-202000
Shape	Elbow - 2 connection sides
