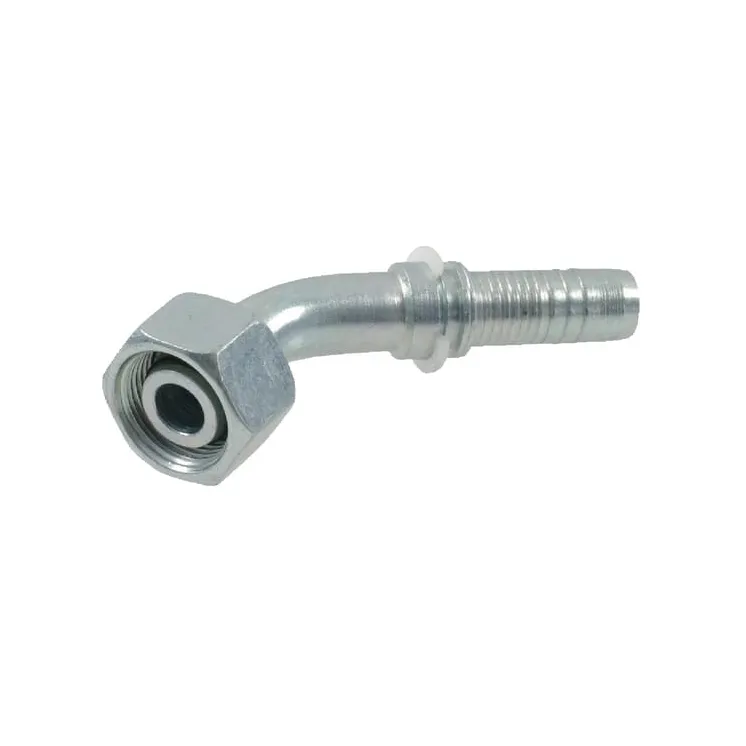

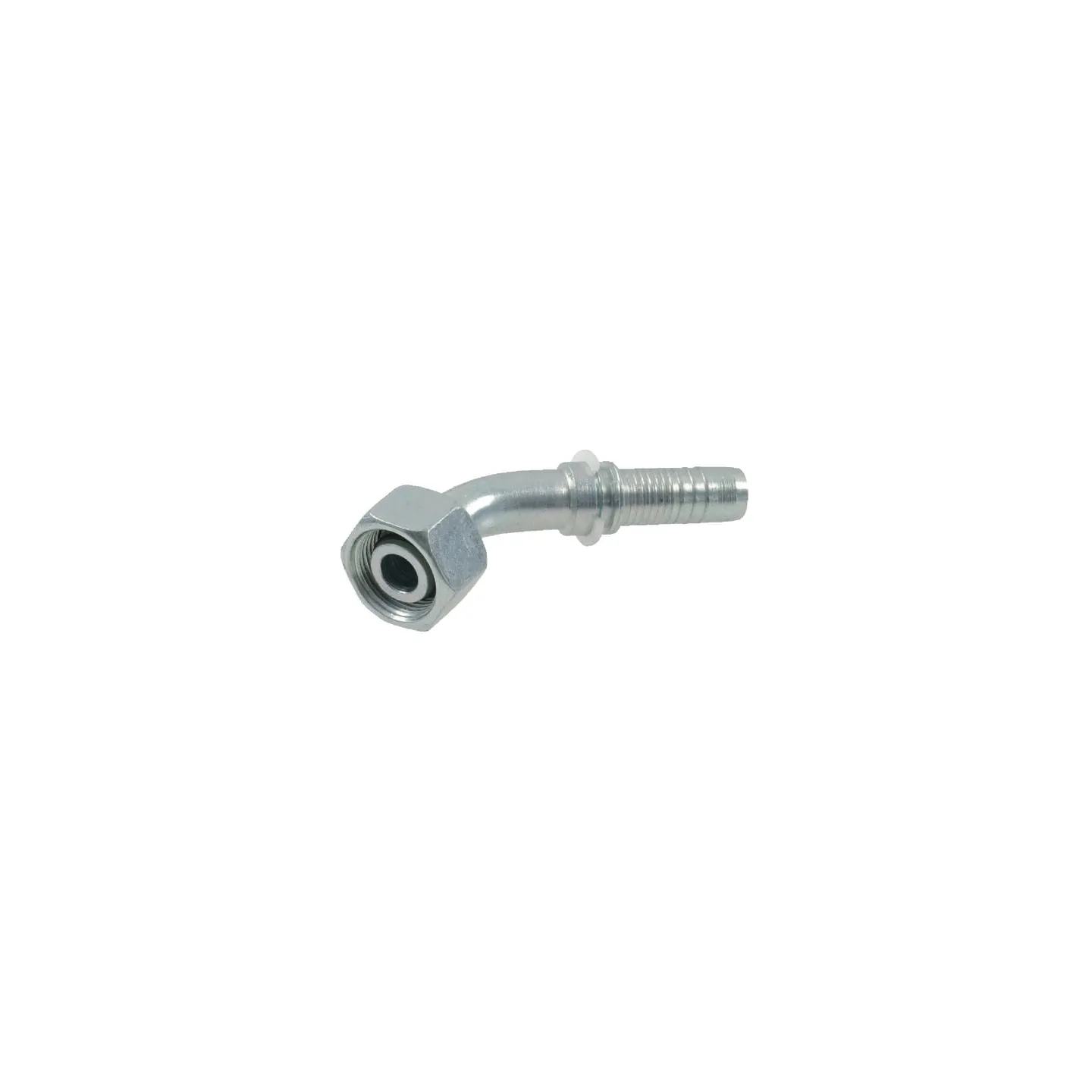

Ievietot DN13-M22x1,5-15L-45° PGLO132245 Alfagomma PGLO132245DB

Ievietot DN13-M22x1,5-15L-45° PGLO132245 PGLO132245DB

Name: Ievietot DN13-M22x1,5-15L-45° PGLO132245 PGLO132245DB
Brand: Alfagomma
SKU: PGLO132245
Price: 4.25 EUR
Availability: InStock

Apmaksas iespējas

4,25 €

AR PVN

4-5 Darba dienas

Ievietot DN13-M22x1,5-15L-45° PGLO132245 Alfagomma PGLO132245DB

IR NOLIKTAVĀ

ID: 89402

Apraksts

Part number	PGLO132245
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M22
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
CH1Connection no 1 wrench size	27.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
DConnection 2, centre to end distance	27 mm
CConnection centre to insert distance	61 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	15L
Original number equivalent	H1221543-082200
