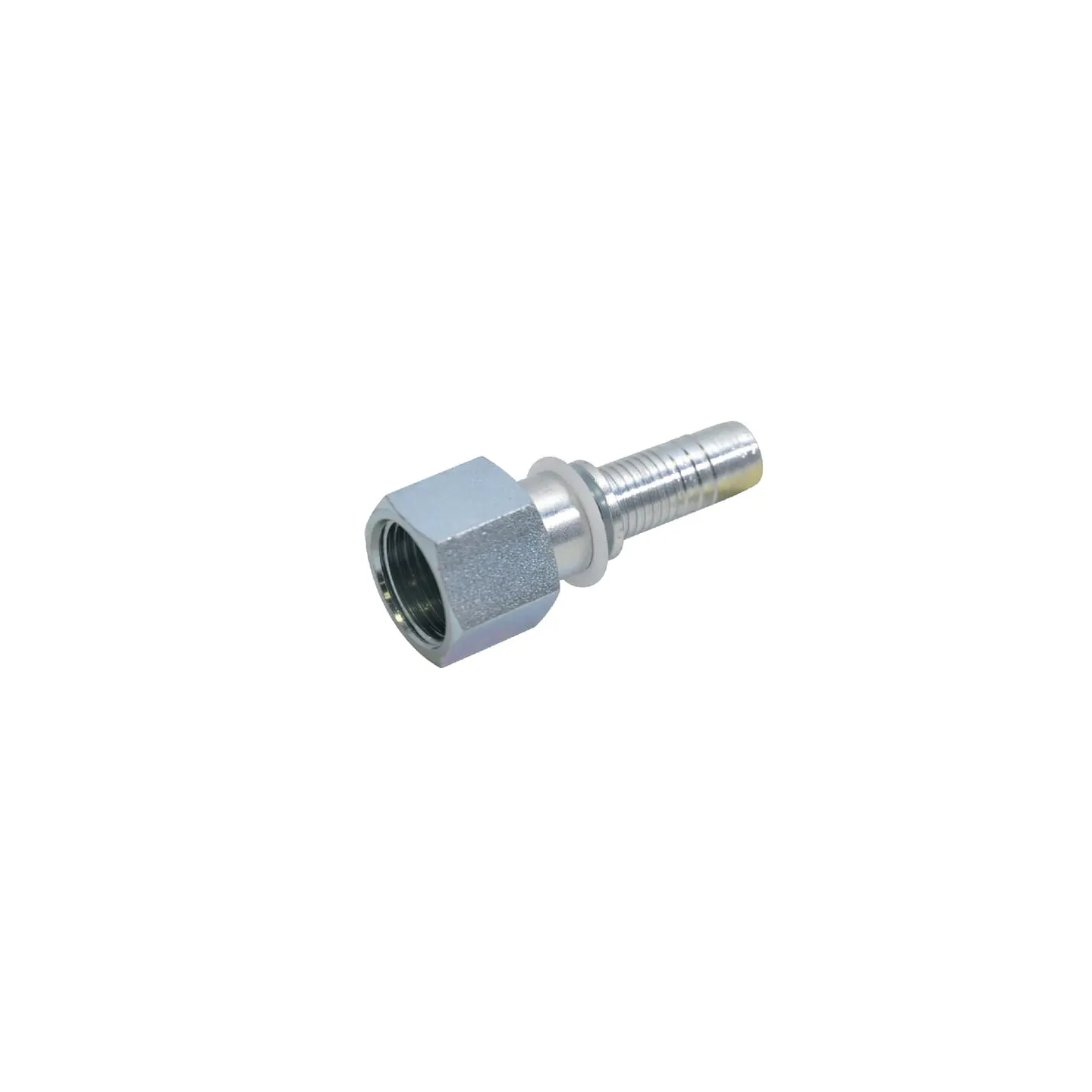

Ievietojiet DN05-1/4 BSP PF54

Name: Ievietojiet DN05-1/4 BSP PF54
Brand: Alfagomma
SKU: PF54
Price: 3.53 EUR
Availability: InStock

Apmaksas iespējas

3,53 €

AR PVN

4-5 Darba dienas

Ievietojiet DN05-1/4 BSP PF54 Alfagomma

IR NOLIKTAVĀ

ID: 89415

Apraksts

Part number	PF54
EAN
Unit	Each
Product details	O-ring seal DKOR
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	3/16 Inch
Connection 2, diameter	5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	17.5 mm
Connection no 1 thread diameter	1/4 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	19.0 mm
Height	19 mm
ISO standard	228
Material	Steel
Shape	Straight - 2 connection sides
