Ievietojiet DN10-M20x1,5-12S-90° PGSO102090 Alfagomma DKOS102090 PGSO102090DB VFR4261

Ievietojiet DN10-M20x1,5-12S-90° PGSO102090 DKOS102090 PGSO102090DB VFR4261

Name: Ievietojiet DN10-M20x1,5-12S-90° PGSO102090 DKOS102090 PGSO102090DB VFR4261
Brand: Alfagomma
SKU: PGSO102090
Price: 4.68 EUR
Availability: InStock

Apmaksas iespējas

4,68 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-M20x1,5-12S-90° PGSO102090 Alfagomma DKOS102090 PGSO102090DB VFR4261

IR NOLIKTAVĀ

ID: 89419

Apraksts

Part number	PGSO102090
EAN	8716106787074
Unit	Each

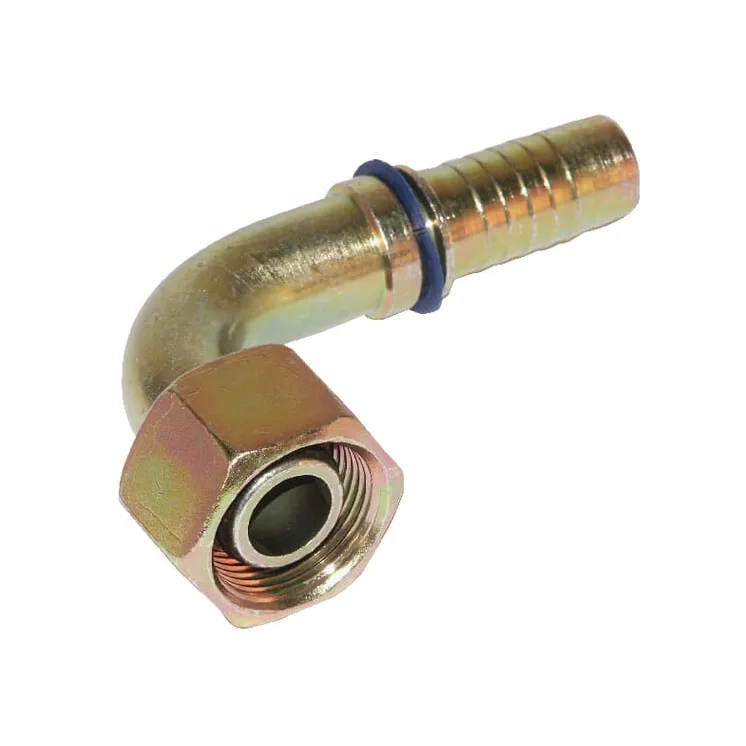

Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	38.5 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	34.3 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M20
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	24.0 mm
Material	Steel
Original number equivalent	H1221693-062000
Series	12S
Shape	Elbow - 2 connection sides
