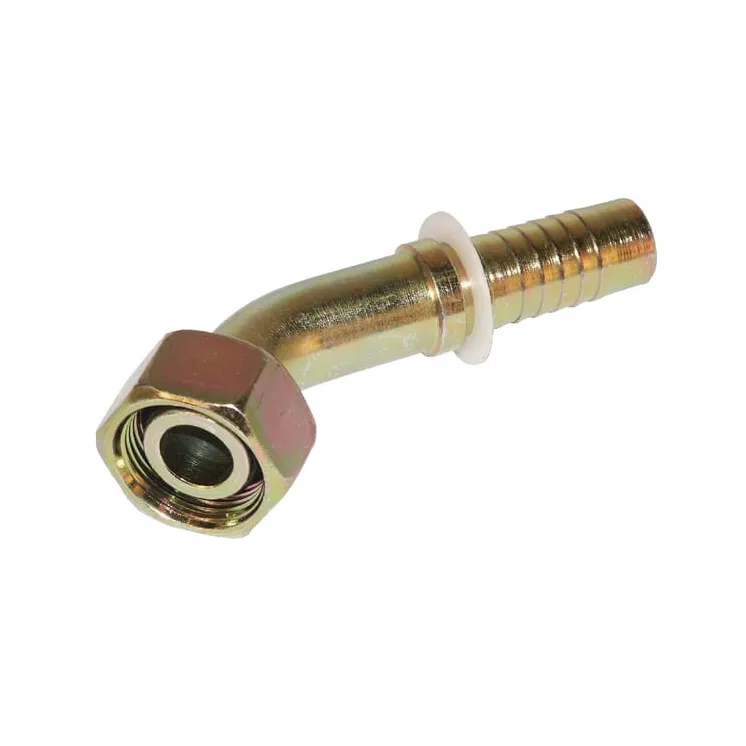

Ievietot DN16-M26x1,5-18L-45° PGLO162645

Name: Ievietot DN16-M26x1,5-18L-45° PGLO162645
Brand: Alfagomma
SKU: PGLO162645
Price: 8.25 EUR
Availability: InStock

Apmaksas iespējas

8,25 €

AR PVN

4-5 Darba dienas

Ievietot DN16-M26x1,5-18L-45° PGLO162645 Alfagomma

IR NOLIKTAVĀ

ID: 89425

Apraksts

Part number	PGLO162645
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M26
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
CH1Connection no 1 wrench size	32.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
DConnection 2, centre to end distance	29 mm
CConnection centre to insert distance	72 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	18L
Original number equivalent	H1221543-102600
