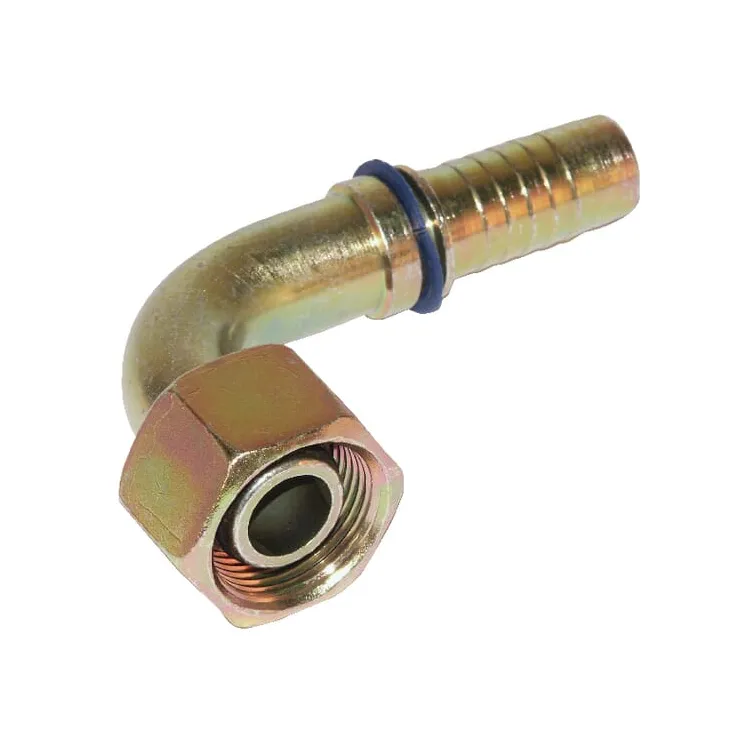

Ievietojiet DN06-M14x1,5-6S-90° PGSO61490

Name: Ievietojiet DN06-M14x1,5-6S-90° PGSO61490
Brand: Alfagomma
SKU: PGSO61490
Price: 3.55 EUR
Availability: InStock

Apmaksas iespējas

3,55 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M14x1,5-6S-90° PGSO61490 Alfagomma

IR NOLIKTAVĀ

ID: 89426

Apraksts

Part number	PGSO61490
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	33 mm
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	27.3 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M14
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	17.0 mm
Material	Steel
Original number equivalent	H1221693-041400
Series	6S
Shape	Elbow - 2 connection sides
