Ievietojiet DN20-M36x2,0-25S-90° PGSO203690

Name: Ievietojiet DN20-M36x2,0-25S-90° PGSO203690
Brand: Alfagomma
SKU: PGSO203690
Price: 16.41 EUR
Availability: InStock

Apmaksas iespējas

16,41 €

AR PVN

4-5 Darba dienas

Ievietojiet DN20-M36x2,0-25S-90° PGSO203690 Alfagomma

IR NOLIKTAVĀ

ID: 89432

Apraksts

Part number	PGSO203690
EAN	8719493101355
Unit	Each

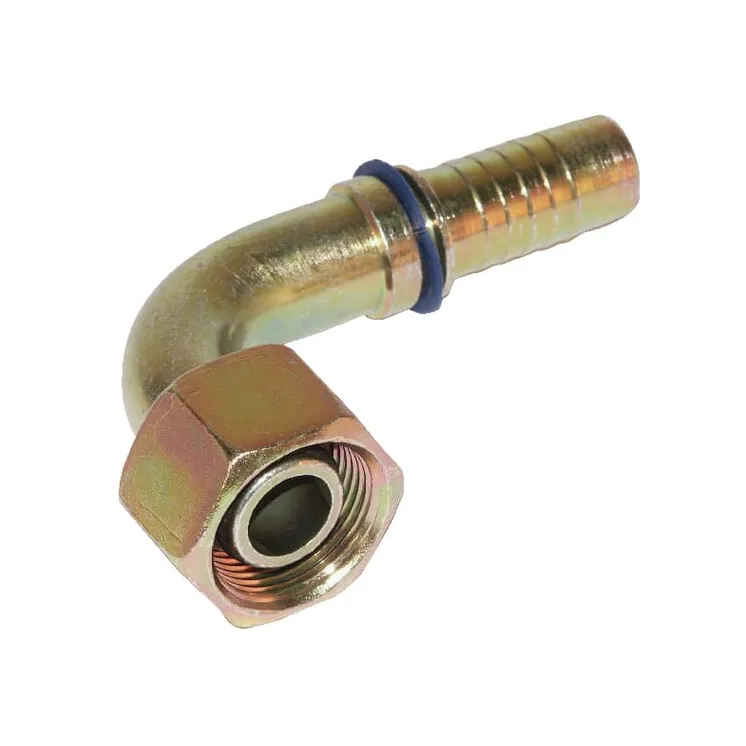

Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	59.5 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	50.6 mm
Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M36
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	46.0 mm
Material	Steel
Original number equivalent	H1221693-123600
Series	25S
Shape	Elbow - 2 connection sides
