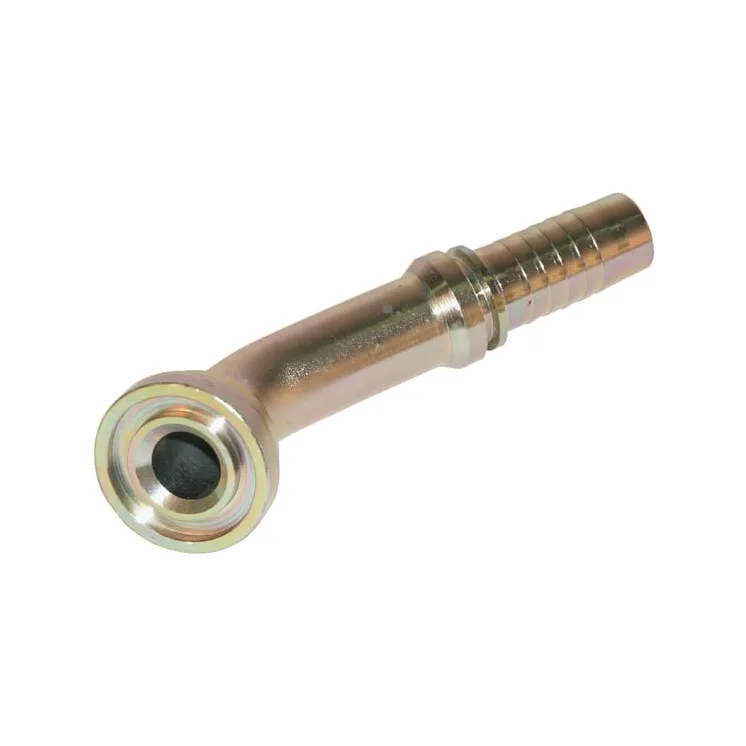

Ieliktnis ar atloku DN25-50,8mm-45° PFL252045 Alfagomma B04011601620 SFL252045

Ieliktnis ar atloku DN25-50,8mm-45° PFL252045 B04011601620 SFL252045

Name: Ieliktnis ar atloku DN25-50,8mm-45° PFL252045 B04011601620 SFL252045
Brand: Alfagomma
SKU: PFL252045
Price: 32.94 EUR
Availability: InStock

Apmaksas iespējas

32,94 €

AR PVN

4-5 Darba dienas

Ieliktnis ar atloku DN25-50,8mm-45° PFL252045 Alfagomma B04011601620 SFL252045

IR NOLIKTAVĀ

ID: 89433

Apraksts

Part number	PFL252045
EAN
Unit	Each
Product details	OVP-ring or O-ring seal - 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Long description	Application range: 4SP hose Earth-moving machinery Heavy industry Consists of: Swage coupling Without OVP ring or O-ring Properties: Seal with OVP ring or O ring
Surface treatment	Zinc-plated White passivated
Angle	45 °
DConnection 2, centre to end distance	36 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	72.3 mm
Connection no 1 diameter	1-1/4 Inch
FDConnection no 1 diameter	50.8 mm
Connection no 1 type - male/female	Female
Connection no 1 type	Flange
Flange outside diameter	50.8 mm
Flange standard pressure series	3000
Material	Steel
Original number equivalent	H1243340-162000
Shape	Elbow - 2 connection sides
