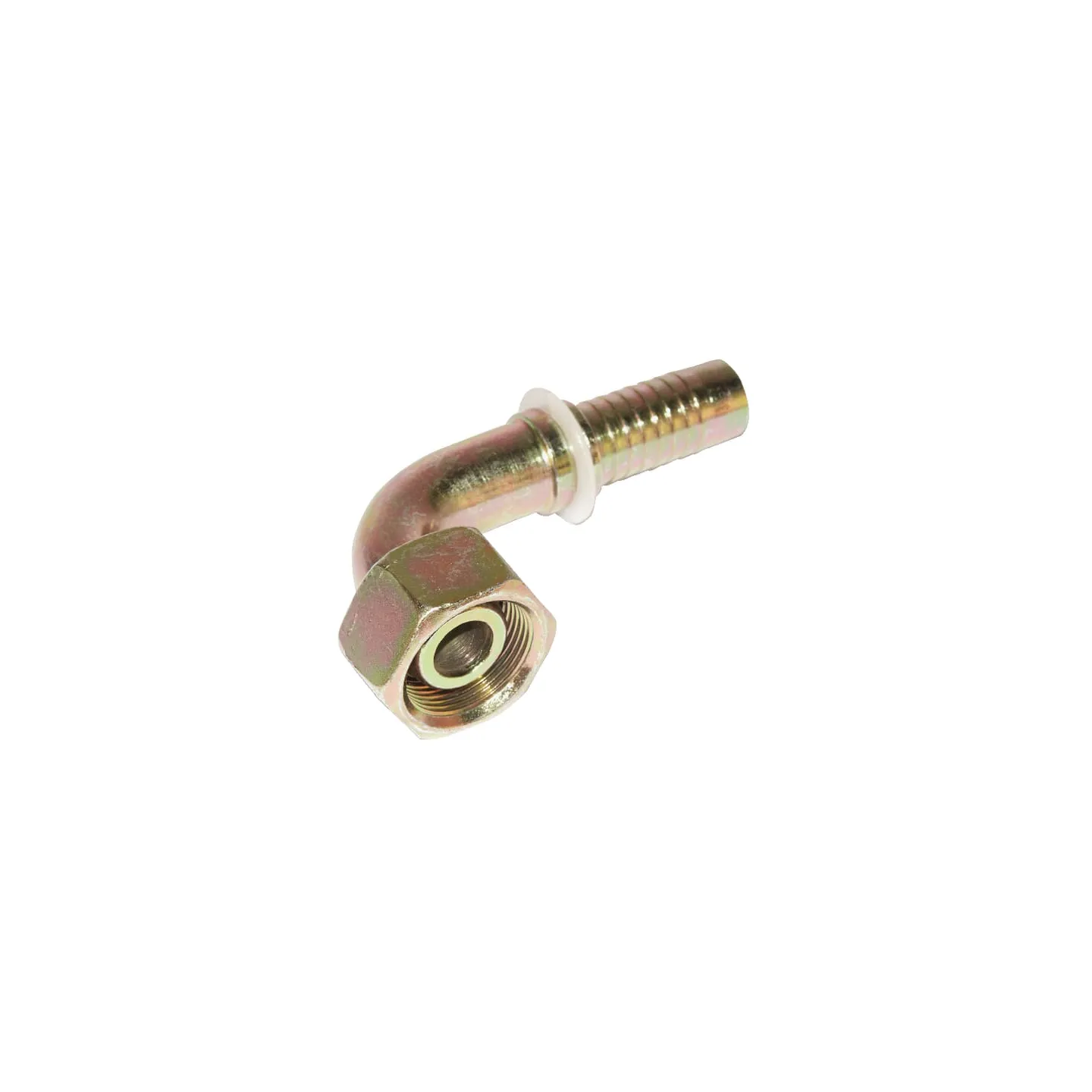

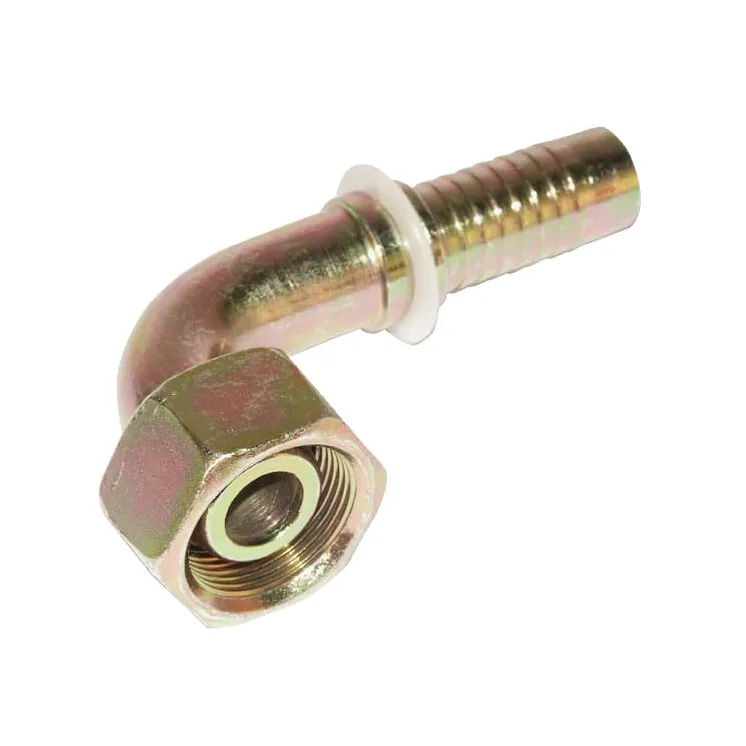

Ievietojiet DN13-24x1,5-gaz-90° PGF132490

Name: Ievietojiet DN13-24x1,5-gaz-90° PGF132490
Brand: Alfagomma
SKU: PGF132490
Price: 12.25 EUR
Availability: InStock

Apmaksas iespējas

12,25 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-24x1,5-gaz-90° PGF132490 Alfagomma

IR NOLIKTAVĀ

ID: 89439

Apraksts

Part number	PGF132490
EAN	8716106786657
Unit	Each
Product details	Cone, metal on metal seal
Long description	Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	46 mm
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 length	39.5 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M24
Connection no 1 type code	DKF
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	30.0 mm
Material	Steel
Original number equivalent	H1221893-082400
Shape	Elbow - 2 connection sides
