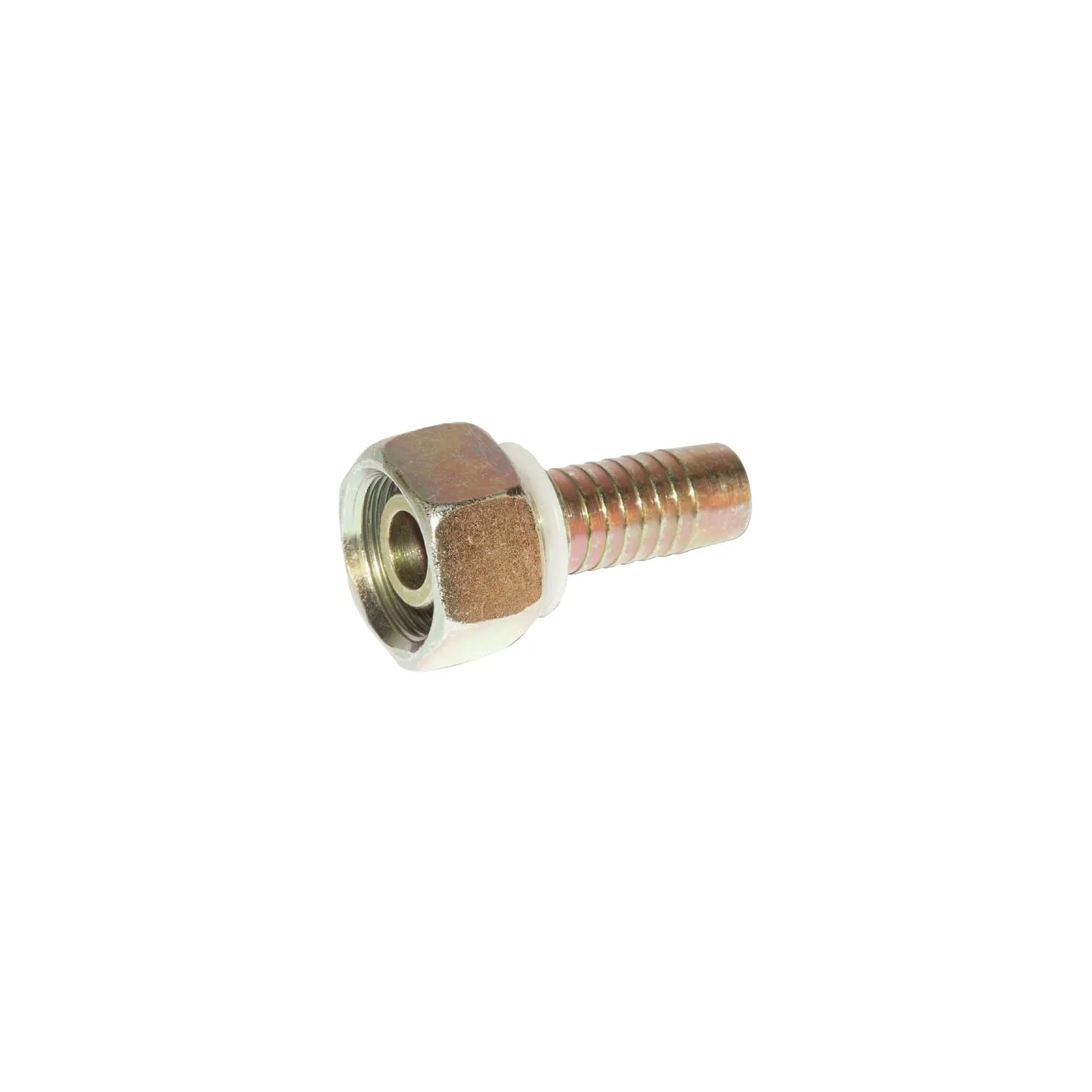

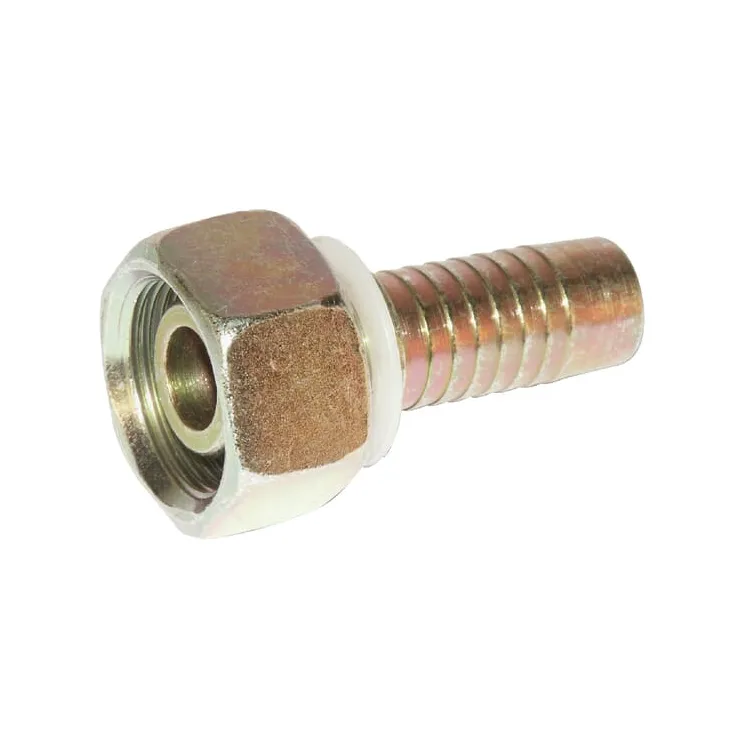

Ievietojiet DN10-M16x1,5-10L PGL1016 DKM1016 PGL1016DB

Name: Ievietojiet DN10-M16x1,5-10L PGL1016 DKM1016 PGL1016DB
Brand: Alfagomma
SKU: PGL1016
Price: 2.47 EUR
Availability: InStock

Apmaksas iespējas

2,47 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-M16x1,5-10L PGL1016 Alfagomma DKM1016 PGL1016DB

IR NOLIKTAVĀ

ID: 89466

Apraksts

Part number	PGL1016
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24° cone Adapter with 60° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
LConnection no 1 center to end distance	55 mm
Connection no 1 length	25 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M16
Connection no 1 type code	DKM
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	19.0 mm
Material	Steel
Series	10L
Shape	Straight - 2 connection sides
